CBS-2130XTS Dimensions & Utility Connections Rough-in Drawings-Continued

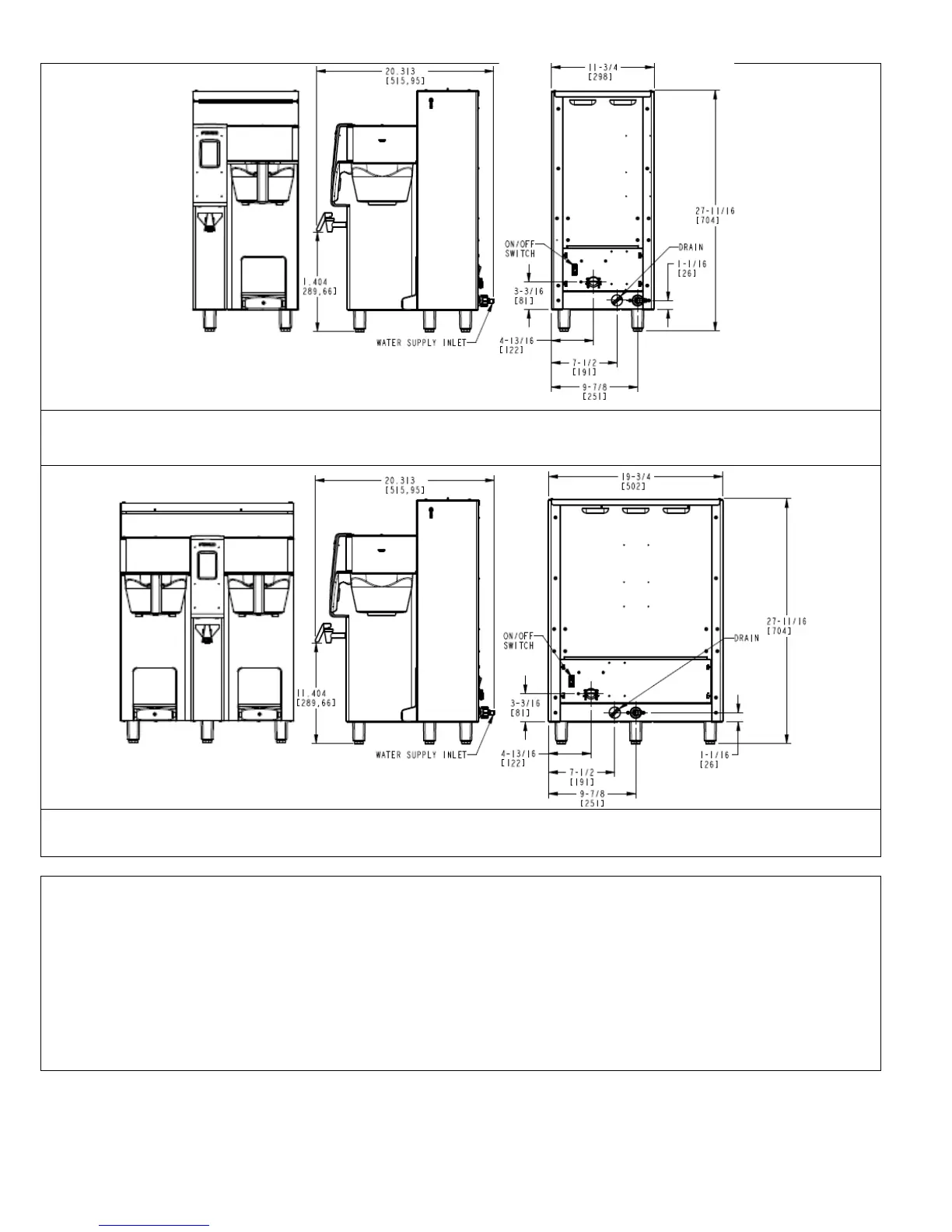

Rough-in CBS-2131XTS—Single station 1-gallon airpot version Drawing#1201.00013.00
Rough-in CBS-2132XTS—Dual station 1-gallon airpot version Drawing#1201.00014.00
Utility Requirements
Water Requirements CBS-2131XTS & CBA-2132XTS: Inlet Water Temperature: Cold or Hot supply
20-75 psig (138-517kPa) 1½gpm/(5.7lpm)
Coffee Filter Size:
13”X5”– standard FETCO # F002
Water inlet fitting is a 3/8 inch male flare. Electrical: See electrical configuration chart.
Brew Volume: Temperature:
CBS-2131XTS & 2132XTS—3 liter version: Full Batch=3 liter
CBS-2131XTS & 2132XTS—1 gal version Full Batch=1 gal
200°F (93°C) inside water tank (at sea level)
195°F (91°C) ± 5° at sprayhead
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice
