Parts diagrams, North America

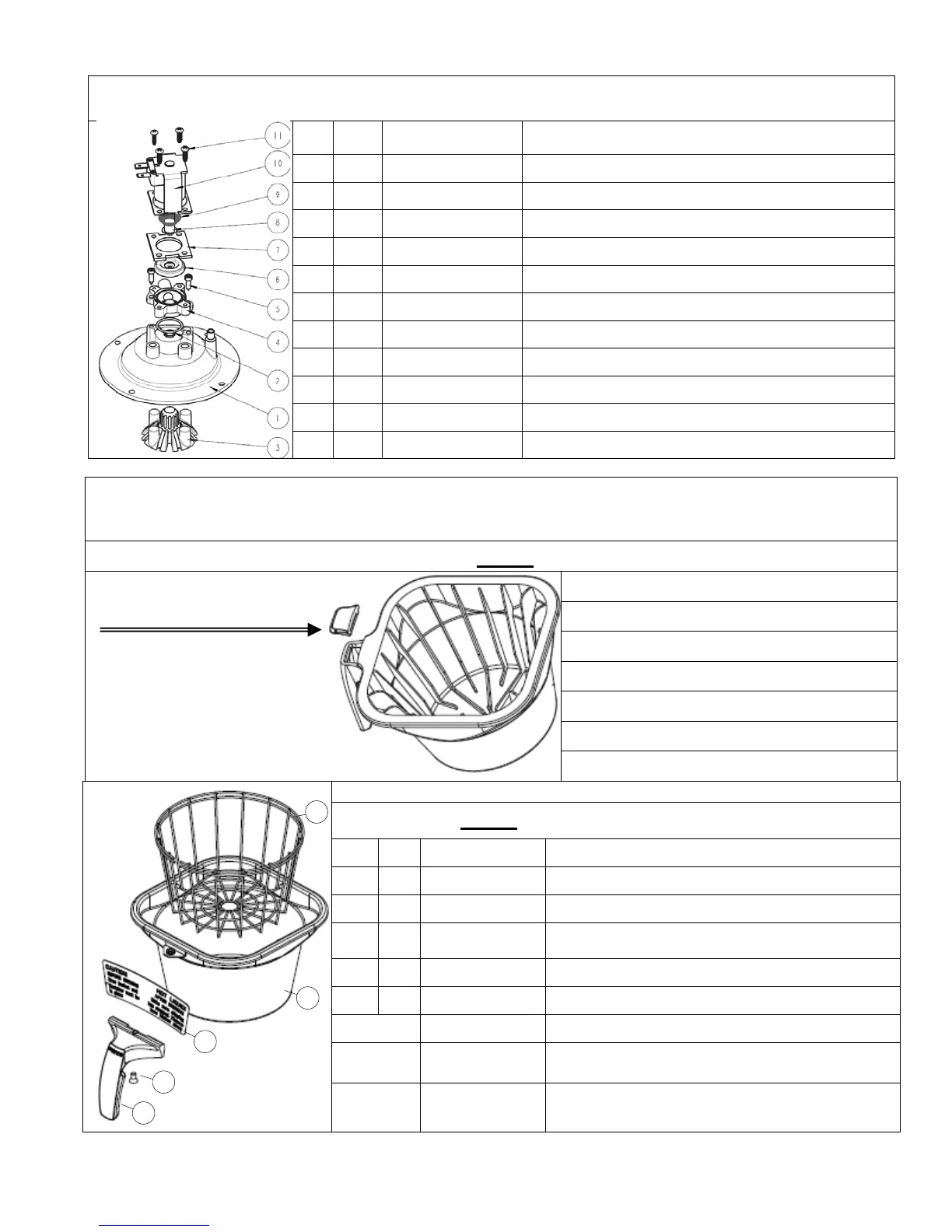

1102.00203.00 Spray Housing Assembly Parts CBS-2130XTS
Ref
.
QTY PART NO DESCRIPTION
1 1 1102.00020.00 SPRAY HOUSING ASSY CSD DESIGN
2 1 1024.00002.00 ORING, AS568A-019, BUNA-N
3 1 1102.00019.00 ASSEMBLY, CASCADE SPRAY DOME
4 1 1023.00189.00 ADAPTER, SPRAY HSG, DSV11 VALVE
5 2 1082.00068.00 SCREW, M3.9x13, CHEESE PH., T/FORM, Z/P
6 1 1057.00038.00 DIAPHRAGM, VALVE DSV-11
7 1 1057.00050.00 SPACER PLATE DSV11, -1 OPTION
8 1 1057.00040.00 PLUNGER, DISPENSE VALVE 24VDC
9 1 1057.00051.00 SPRING, DISPENSE VALVE 24VDC
10 1 1057.00022.00 DSV11 COIL AND FRAME ASSEMBLY, 24VDC
11 4 1082.00076.00 SCREW, #6-20 X 1/2", THRD FORM, P/H PHIL
.
Brewbasket Parts
Complete Brewbasket Part Number B014218BN2 CBS-2130XTS
Part Number Plug Insert color
1023.00195.00 BROWN PLUG, BB HANDLE
1023.00194.00 BLACK PLUG, BB HANDLE
1023.00190.00 RED PLUG, BB HANDLE
1023.00191.00 GREEN PLUG, BB HANDLE
1023.00192.00 ORANGE PLUG, BB HANDLE
Brown colored insert
is standard
Brewbasket handle plug
for polymeric brewbaskets
is available in optional
colors.
1023.00180.00
BLUE PLUG, BB HANDLE
OPTIONAL Stainless Steel Brewbasket
B012218B1
Complete Stainless Steel Brewbasket for CBS-2130XTS
Ref# Qty Part Number Description
1 1 1112.00128.00 BB WLDMNT
2 1 1046.00025.00 BREW BASKET WARNING LABEL
3 1 1082.00040.00 SCREW, 1/4-20 X .5, FL HD, PH., W/NYLN
4 1 1009.00006.00 WIRE BASKET
5 1 1102.00064.00 HANDLE W/MAGNET ASY, BLACK
Optional
colored handle
1102.00065.00 HANDLE W/MAGNET ASY, RED
Optional
colored handle
1102.00066.00 HANDLE W/MAGNET ASY, GREEN
Optional
colored handle
1102.00067.00 HANDLE W/MAGNET ASY, ORANGE
1
5
3
4
2
