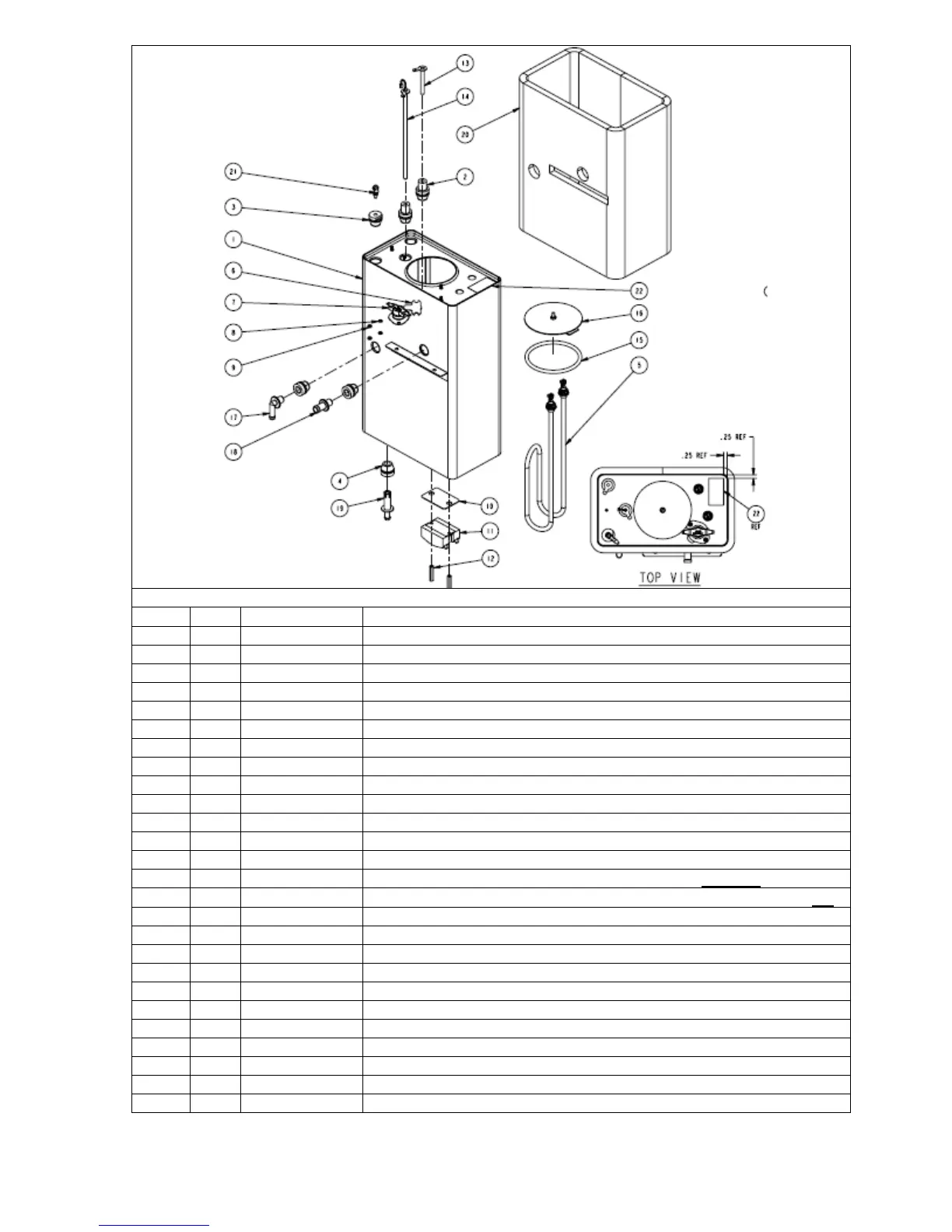

Drawing 1104.00053.00 , covers 1104.00056.00 TANK ASSY, CBS-2131XTS
Ref# Qty Part number Description
1 1 1114.00080.00 WELDMENT TANK CBS-2131XTS, GROMMET DESIGN
2 2 1024.00053.00 LEVEL AND TEMP PROBE GROMMET
3 1 1024.00062.00 GROMMET, SHORT, SILICONE, LEVEL AND TEMP PROBE
4 3 1024.00050.00 GROMMET, SILICONE, 11.4mm ID
5 1 1107.00019.00 HEATER ASSEMBLY, IMMERSION 2300W/120VAC
5 1 1107.00021.00 HEATER ASSEMBLY, IMMERSION 1500W/120VAC
5 1 1107.00022.00 HEATER ASSEMBLY, IMMERSION 1700W/120VAC
5 1 1107.00018.00 HEATER ASSEMBLY, IMMERSION 3000W/240VAC
6 1 1003.00005.00 BRACKET, ONE SHOT THERMOSTAT
7 1 1053.00003.00 THERMOSTAT, SINGLE SHOT, 240V/40A
8 2 1083.00009.00 WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
9 2 1084.00010.00 NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
10 1 1003.00140.00 ALUMINUM BRACKET FOR SSR
11 1 1052.00014.00
ASSEMBLY RELAY, SOLID STATE, 25A/230V NOT CE
11 1 1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR CE
12 2 1081.00042.00 STANDOFF, 6-32 x1.25 LG.,1/4 HEX WIDTH
13 1 1112.00002.00 PROBE WELDMENT, WATER LEVEL 2.25" LG
14 1 1102.00161.00 PROBE ASSEMBLY, TEMP. AND LLC, HWD-2100
15 1 1024.00007.00 O-RING, DASH #344, TANK COVER
16 1 1102.00007.00 TANK COVER ASSEMBLY
17 1 1023.00183.00 FITTING, DILUTION, TBS-2121
18 1 1023.00167.00 FITTING, BREW, GROMMET DESIGN
19 1 1023.00166.00 FITTING, COLD WATER INLET, GROMMET DESIGN
20 1 1022.00063.00 TANK INSULATION, CBS-2131XTSe, GROMMET DESIGN
21 1 1029.00023.00 FITTING, SINGLE BARBED ELBOW, 1/4", KYNAR
22 1 1044.00004.00 LABEL, WARNING-HIGH VOLTAGE
