Fetco MBS-1221 - Hot Water Tank Components

Go to fetco.com for the latest versions of all information Page 23 User Guide & Operator instructions MBS-1221 P202Re0August 2021
ITEM
Qty
PART NO

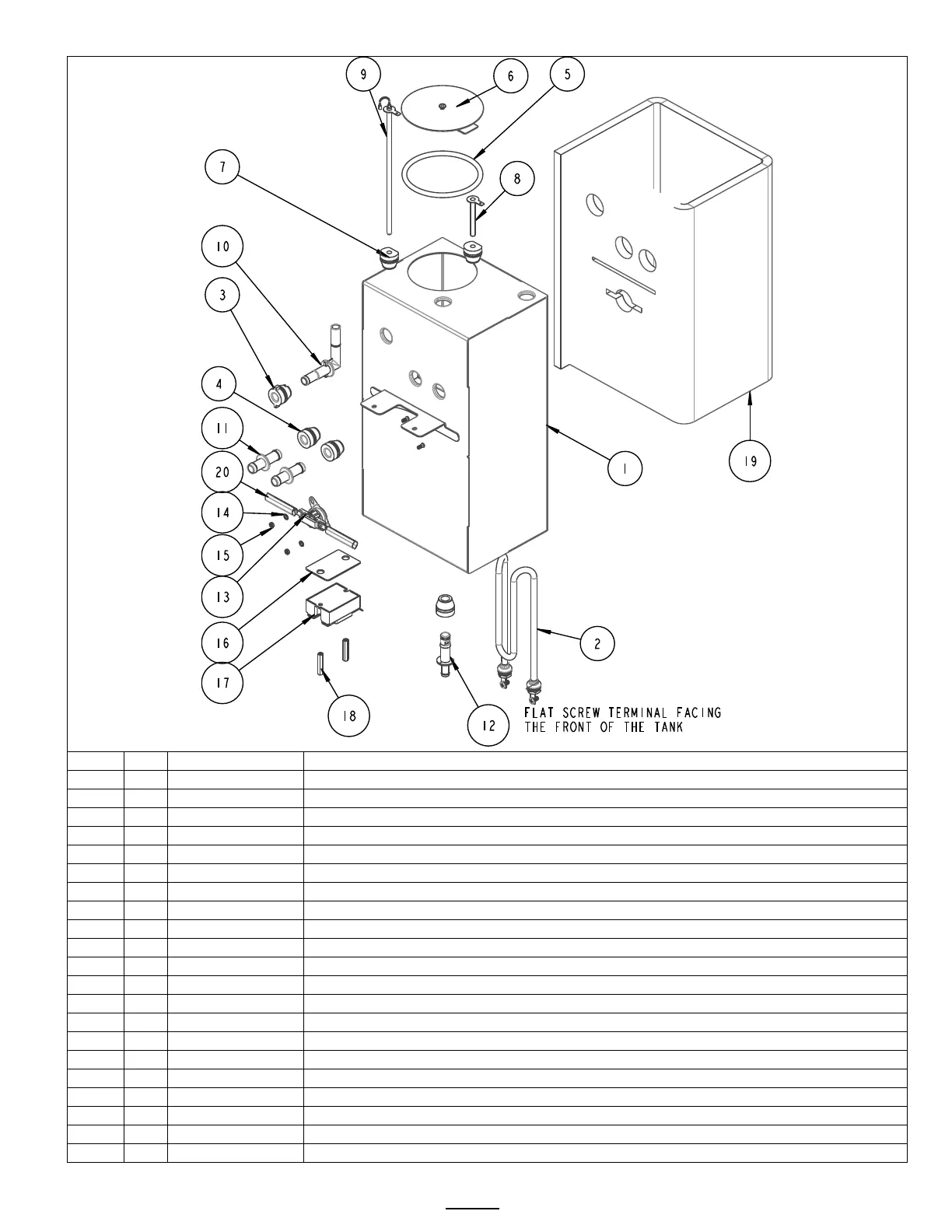

DESCRIPTION Hot water tank drawing numbers 1104.00203.00 & 1104.00204.00
1
1
1114.00173.00
WELDMENT, TANK, CBS/MBS-1221, ONE HEATER
2
1
1107.00002.00
HEATER ASSY, IMMERSION 3000W/240VAC (1104.00203.00)
2
1
1107.00003.00
HEATER ASSY, IMMERSION 1700W/120VAC (1103.00304.00)
3
1
1024.00111.00
GROMMET, SILICONE, W/ POSITION TABS
4
3
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
5
1
1024.00007.00
O-RING, DASH #344, TANK COVER
6
1
1102.00207.00
TANK COVER ASSEMBLY, TBS-2121
7
2
1024.00062.00
GROMMET, SHORT, SILICONE, LEVEL AND TEMP PROBE
8
1
1112.00002.00
PROBE WELDMENT, WATER LEVEL 2.25" LG
9
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
10
1
1023.00362.00
FITTING VENT, ELBOW, .375" X .375", SELF POSITIONING
11
2
1023.00167.00
FITTING, STRAIGHT, GROMMET, .500"
12
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
13
1
1053.00051.00
THERMOSTAT, SINGLE SHOT, 240V/25A
14
2
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
15
2
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
16
1
1003.00140.00
ALUMINUM BRACKET FOR SSR
17
1
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
18
2
1081.00042.00
STANDOFF, 1/4" HEX
19
1
1022.00112.00
TANK INSULATION, CBS-1221
20
2
1022.00032.00
SLEEVE, Ø.50 x 2.0" LG. x 1.50" SLOT
TANK ASSEMBLY 1104
.00204.00
1 X 1.7kW/120V
TANK ASSEMBLY 1104.00203.00
1 X 3.2kW/240V
