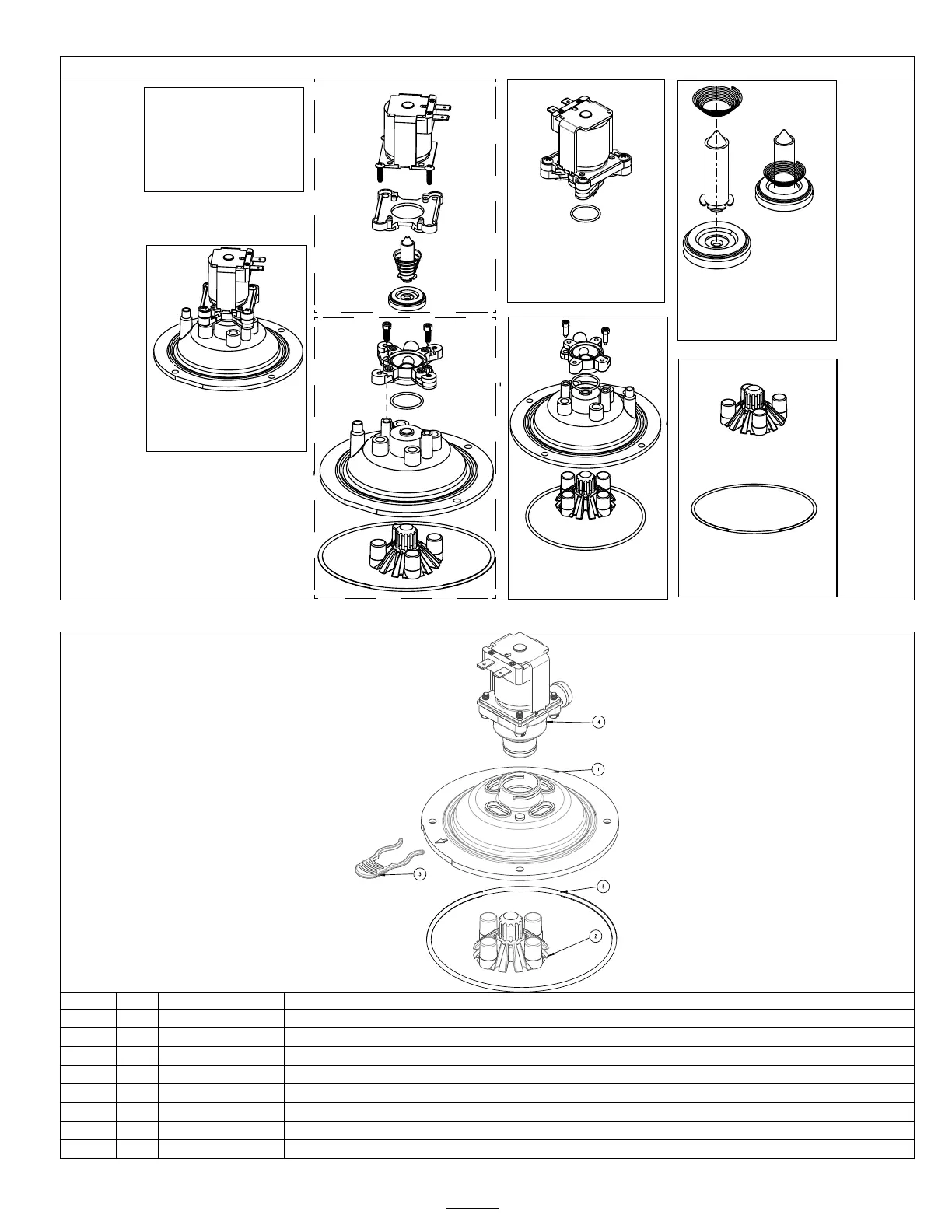

Small Spray Head Assembly
CBS-1221 Part #16 pages 15-16 (Check your equipment to determain your type)
Small Spray Assembly Parts List-alternate version (Check your equipment to determain your type)
ITEM
Qty
PART NO
DESCRIPTION Drawing number 1101.00569.00
1
1
1000.00142.00
BASE, QUICK CONNECT SPRAY HEAD, RETROFIT
2
1
1102.00479.00
ASSEMBLY, CASCADE SPRAY DOME, NEXT GEN, ORANGE
3
1
1023.00342.00
QUICK CONNECT CLIP
4
1
1057.00076.00
VALVE ASSEMBLY, COMPLETE, NG, DELTROL(interchangeable with 1057.00078.00)
4
1
1057.00078.00
VALVE ASSEMBLY, COMPLETE, NG, RPE (interchangeable with 1057.00076.00)
5
1
1024.00063.00
O-RING, 3 15/16" x 3/32" CS, DASH # 154, BUNA-N, DURO-A50
NS
4
1083.00010.00
WASHER, #10 SCREW W/NEOPRENE-BONDED SEAL
NS
4
1084.00006.00
NUT, 8-32 18-8 HEX MACHINE SCREW
Part #1000.0097.00
Complete, assembled
24 vol t val ve kit
with o-ring
Part # 1102-00203.01
Complete 24volt spray housing
factory assembled
1024.00063.00 Spray housing
O
-RING, 3 15/16" x
3/32"
CS, DASH # 154, DURO-A50
1102.00019.00 Small
cascading spray dome, red
Part #1000.0098.00
Valve rebuild kit contains
spring, plunger and diaphragm
.
Kit
as assembled
Small spray dome parts breakdown
FETCO 24 volt small spray dome is
found on some models of
CBS-1200, MBS-1200, TBS
-1200
all models
CBS-1131V+, CBS-1132
V+
CBS-1141V+, CBS-1142V+
Par t #1000.00142.00
Small spray housing kit w ith o-ring
and cascading spray dome
P/N 1102
.00456.00
Quick connect sprayhead
CBS-1200
Series
