WARNING! All work to be performed by qualified personnel familiar with hot beverage equipment repair
The FETCO MBS brewer hot water faucet may be relocated from the front to the right or left side using kit 1000.00140.00
Brewer Setup
1. Relocation of the hot water faucet is best performed before the MBS-1221 is installed.
2. If relocating the hot water faucet for a working installed MBS-1221 - disconnect the water and electrical lines and
completely drain the hot water tank.
3. Remove the universal brewer shelf and front and top covers to access the hot water and internal connections.
Remove the factory installed hot water faucet and install front panel plug
1. Review Illustration 1 below. Remove the tube and tank fitting from the hot water tank
2. Pull the clamp back from the faucet tube fitting and unscrew the backer nut to remove the faucet.
3. Place the hot water plug into the opening, place washer and spacer from the back and install screw.
NOTE: WARNING: The plug and spacer must be installed into the front panel opening.
Installing the relocation faucet
Review Illustration 2: User side mounted faucet connection
1. Select side to install the side faucet, right or left side as desired. Remove the enclosure plug from that side.
2. Install the faucet and tighten the backer nut .
3. Push the angled tank fitting into the hot water tank where the original straight fitting was located.
4. Bring the faucet connector tube to the side where the faucet will be relocated.
5. Check that the clamp is on the tube and push the faucet tube on the faucet tube fitting and tighten the clamp on the
tube fitting
6. Inspect all connections that they are intact and clamped over the fittings.
7. Reinstall water and power connections, turn brewer “ON: and inspect for leaks.
8. Reattach covers

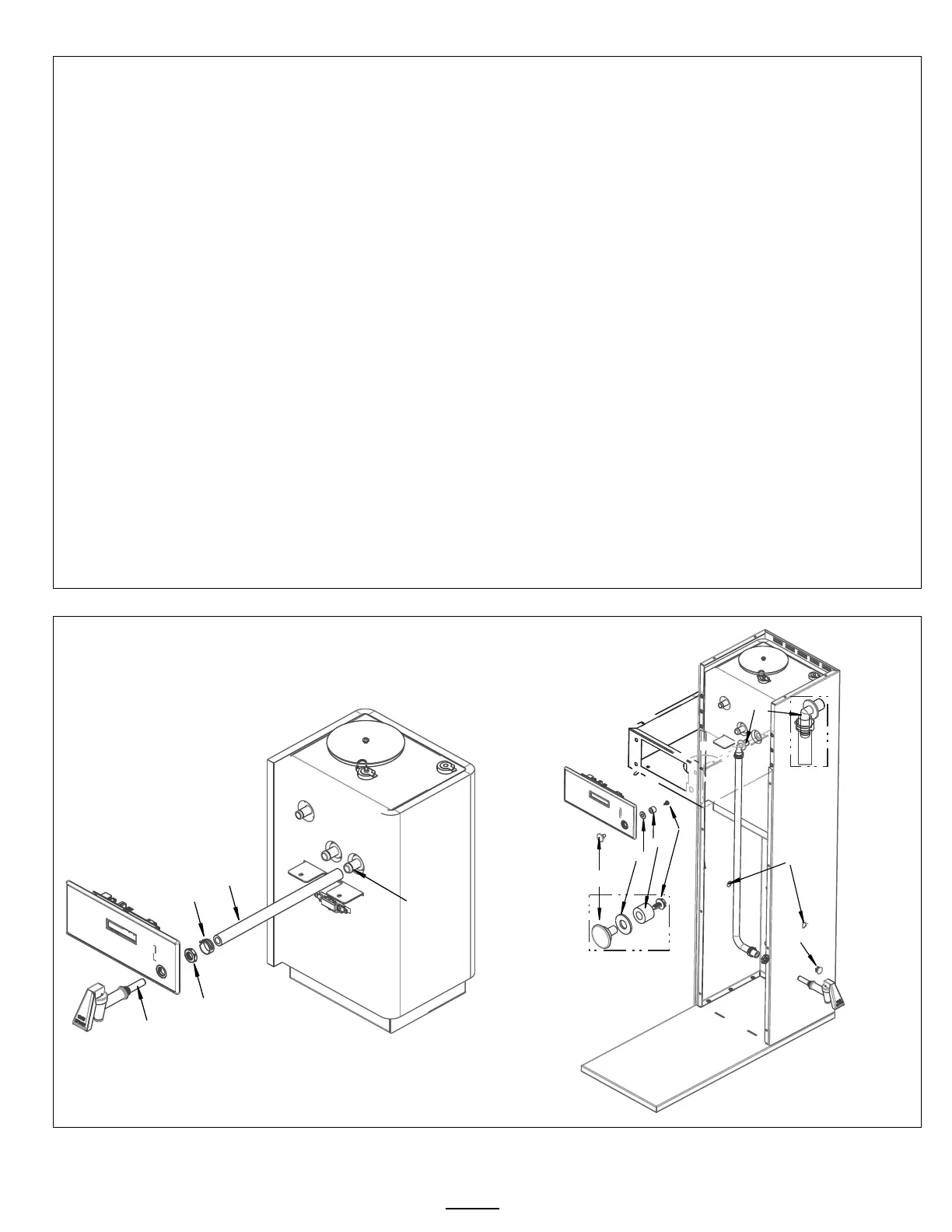

Ilustration 1: Factory default faucet connection
Ilustration 2: User side mounted faucet connection
Straight tank
f itting
Front f aucet
connetor tube
Clamp
Backer nut
Faucet spud
Hot water tank
(inside brewer enclosure)
HOT WATER PLUG
& CONNECTOR
SPACER
SCREW
WASHER
Enclosure
plug
Faucet port
Ang led tank
fitting
Hot water tank
