Fetco MBS-1221 - Rough-In Drawings; Weights and Capacities

Go to fetco.com for the latest versions of all information Page 3 User Guide & Operator instructions MBS-1221 P202Re0August 2021

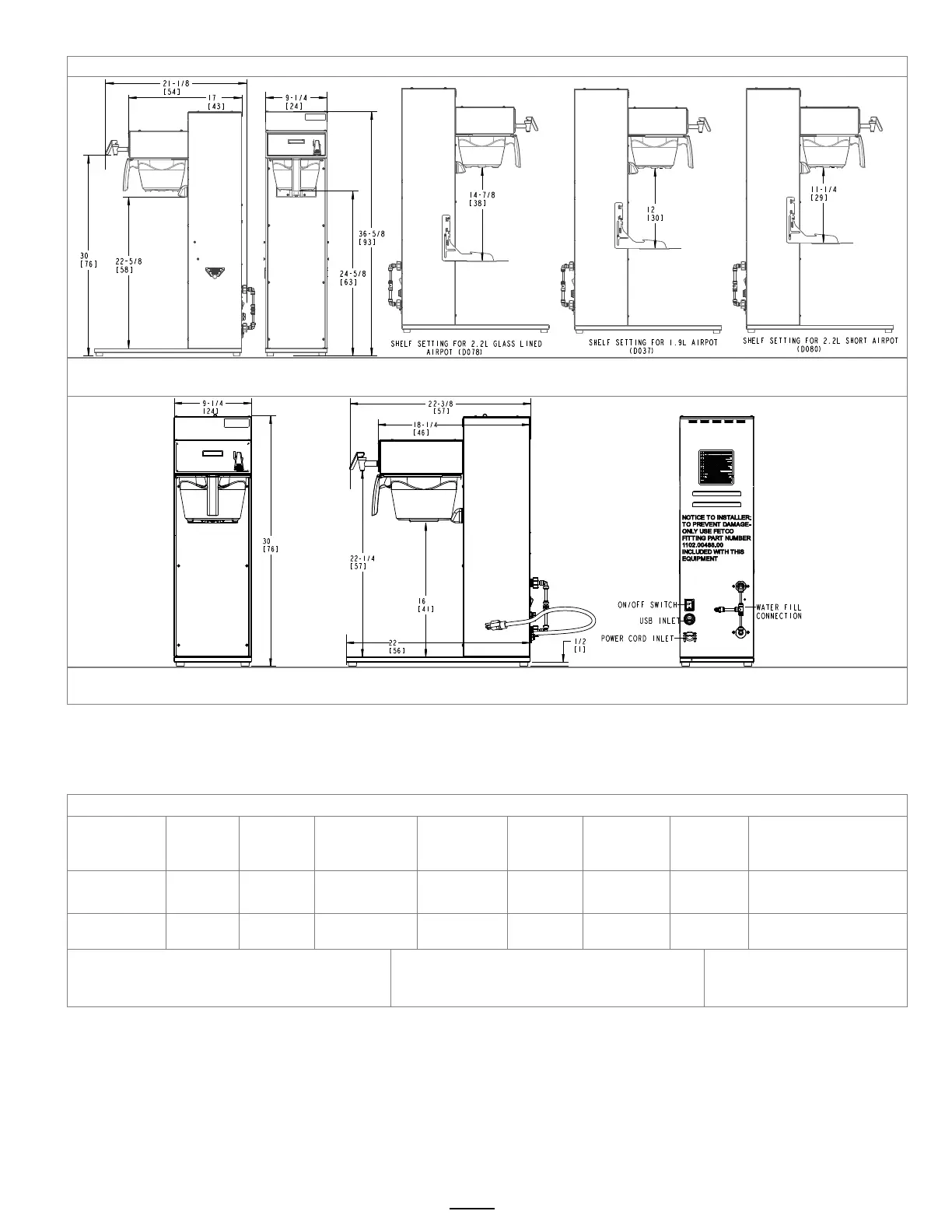

Rough-In Drawings
MBS-1221 Side MBS-1221 Front Adjustable shelf positions for different sizes and types of air pots
MBS-1221 Short only MBS-Short-1221 Front MBS-Short-1221 Side All equipment-BACK
Weights and Capacities
Dispenser
Model
Height Width Depth
Water
tank
capacity
Empty
Weight
Filled
Weig ht Filled
Weight
Shipping
Weight
Shipping
Dimensions
MBS-1221
Brewer
37 in
940 mm
9 1/4 in
235 mm
17 in
440 mm
2.7 gallon
10.1 L
35bs.
15.9 kg
60 lbs.
27.2 kg
50 lbs.
22.7 kg
27” x 11.5” x 39”
681mmX292X991mm
MBS-1221
Short
30 in
762 mm
9 1/4 in
235 mm
18 1/4 in
464 mm
2.7 gallon
10.1 L
33bs.
15 kg
57 lbs.
25.9 kg
48 lbs.
21.8 kg
27” x 11.5” x 39”
681mmX292X991mm
Calibrated for
2.2 L/74 oz/0.58gal Coffee air pot (Batch 1)
3 gal 11.4 liter Iced Tea (Batch 3)
Coffee dose calibrated for 120g/4.2oz
Range: 100-140 gram 3.5-4 ounce dose
Tea dose range: 70-113 gram/2.5-4.0 oz
Coffee Filter
FETCO# F002 or 13” X 5”
