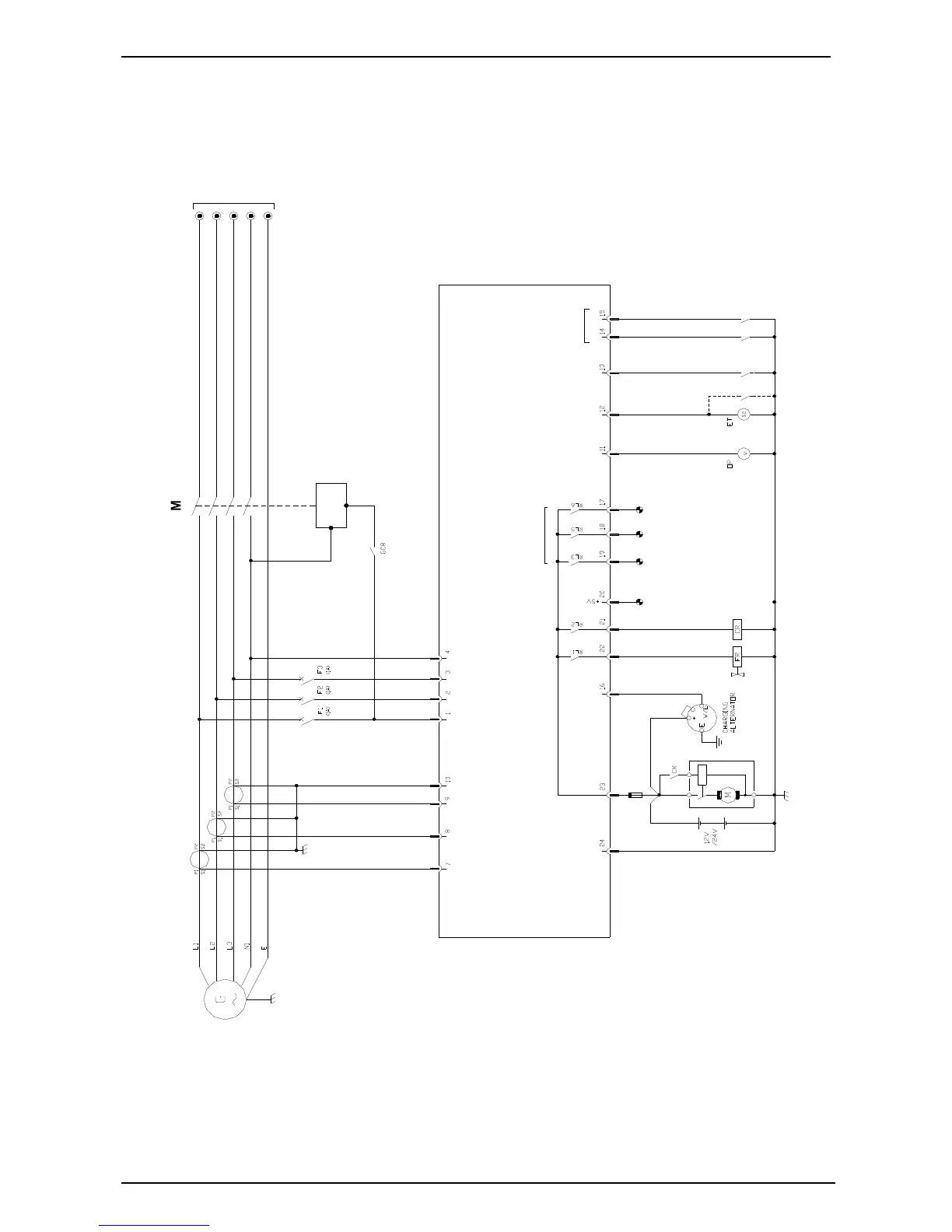

2.3 Typical Wiring Diagram
(12/24V)
DC POWER
CRANKFUEL
CONFIG.OUTPUT
LOAD
M
CONFIG. INPUT
REMOTE START
COOLANT TEMP.
(OR TEMP. SWITCH)
OIL PRESSURE
(OR OIL SWITCH)
DCP-10
Fuse protection with a rating of 0.5A must be provided externally to the Controller.
