4.2 Current Output (0-20mA) Wiring
The detector’s 0-20mA current output can act as both a source or a sink transmitter and can be 3-
wire or 4-wire connected.

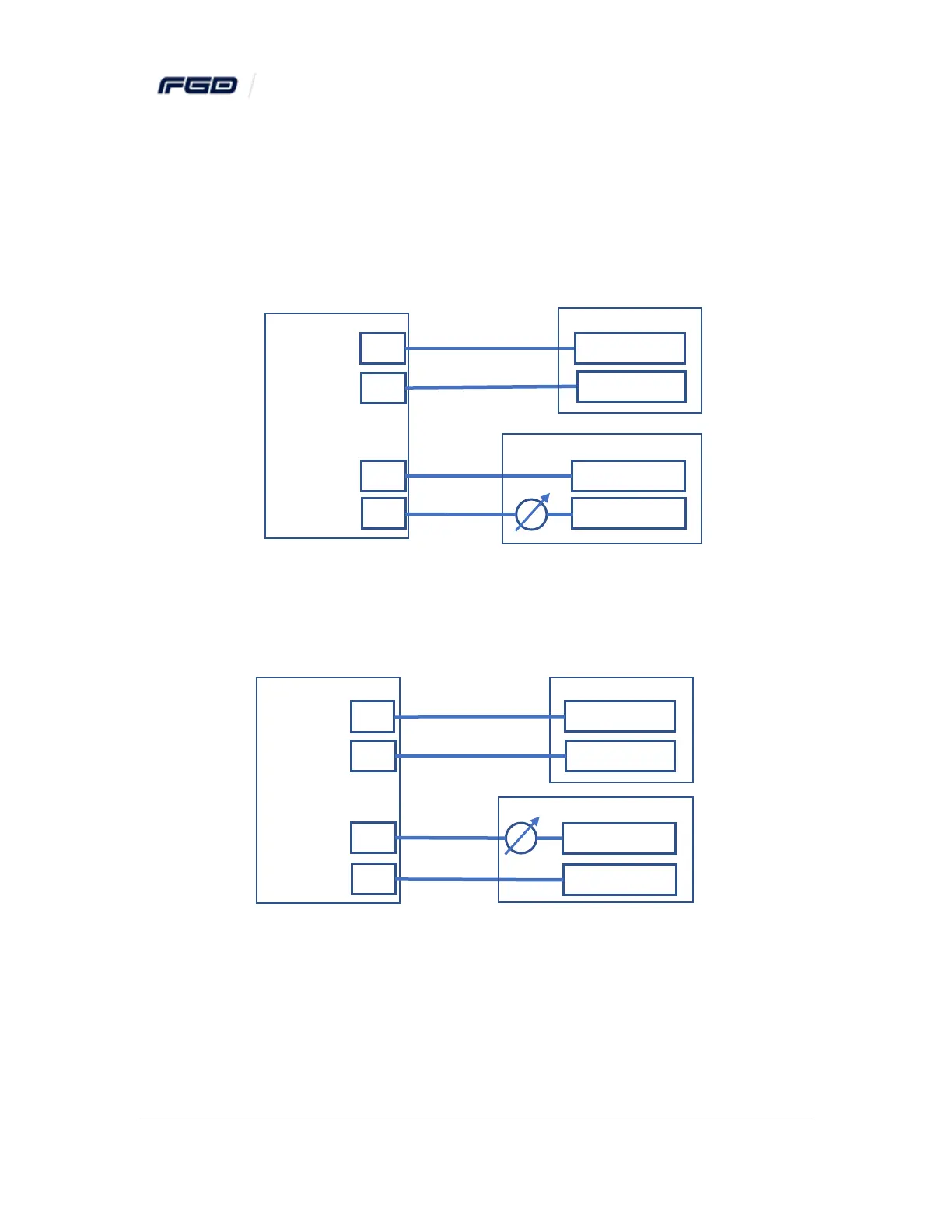

The following drawing shows how to wire the detector to act as a current source isolated transmitter
(4-wire connection):
FIGURE 4 – SOURCE 4-WIRE SCHEME
The following drawing shows how to wire the detector to act as a current sink isolated transmitter
(4-wire connection):
FIGURE 5 – SINK 4-WIRE SCHEME
Detector
1
2
3
4
24VDC
Return
Return
24VDC
Detector
1
2
3
4
Power
24VDC
Return
Return
24VDC
Controller
Controller
Power
