FHC microTargeting 22335Z - Page 6

L011-51-02 (Rev. B0, 2020-07-28)
6
MTD234(**)(***) (See definitions below)
MTD: microTargeting™ Electrode, Differential
2: Base Electrode Material-
W: Tungsten
P: Platinum/Iridium (80%/20%)
S: Stainless Steel
3: Impedance-
Measured at 1000Hz:
A: 500 Kohms (±30%)
B: 1.0 Megohms (±20%)
C: 5.0 Megohms (±20%)
D: 10 Megohms (±20%)
X: Specify between .1 and 10
Z: D.ZAP 1.0 Megohms (±20%)
Measured at 220Hz:
L: D.ZAP 1.0 Megohms (±20%)
4: Packaging-
N: A package of 6 microTargeting™ Electrodes provided non sterile
P: A package of 5 microTargeting™ Electrodes provided sterile
(**)(***): Customer Specific Dimensions-
Electrode Length: 100mm – 293mm
Differential Length: 1mm – 50mm
Protective Tube Length: derived from electrode
and differential length`
Catalog
number
Tip
Material
Specications Insertion
Type
Drive
System
Electrode
InsertionTube
Stereotactic
System
22635L Tungsten Impedance: 1M@220Hz, Total length
to macro contact: 261.5mm, Total
extension length to tip: 271.5mm, Max
diameter: 0.55mm
STar Drive
70-IT-ARP +
70-CN-ET, 70-IT-AR
Leksell
CRW
mT Drive 66-IT-1018, 66IT-AR
*22335Z
22635Z
Tungsten Impedance: 1M@1kHz, Total length
to macro contact: 261.5mm, Total
extension length to tip: 271.5mm, Max
diameter: 0.55mm
*Total length to macro contact:
268.5mm
STar Drive
70-IT-ARP +
70-CN-ET, 70-IT-AR
Leksell
CRW
*25335Z Platinum
mT Drive 66-IT-1018, 66-IT-AR
34625L Tungsten Impedance: 1M@220Hz, Total length
to macro contact: 256.4mm, Total
extension length, to tip: 266.4mm, Max
diameter: 0.77mm
STar Drive
or
mT Drive
66-IT-01P, 66-IT-09P,
66-IT-13P, 66-IT-05P,
66-IT-07P, 66-IT-14P,
66-IT-08P, 66-IT-01,
66-IT-09, 66-IT-13,
66-IT-05, 66-IT-07,
66-IT-14, 66-IT-08
Leksell
CRW
34625Z
*34325Z
Tungsten Impedance: 1M@1kHz, Total length
to macro contact: 256.4mm, Total
extension length to tip: 266.4mm, Max
diameter: 0.77mm
*Total Length to macro contact
263.4mm
STar Drive
or
mT Drive
Leksell
CRW
*35325Z Platinum
*44335Z
44930R
44935Z
Tungsten Impedance: 1M@1kHz, Total length
to macro contact: 205.72mm, Total
extension length to tip: 215.72mm, Max
diameter: 0.55mm
*Total length to macro contact:
212.72mm
STar Drive
70-IT-AR5P +
70-CN-ET, 70-IT-04
Platform
mT Drive 66-IT-AR5P, 66-IT-04
*45335Z Platinum
STar Drive 66-IT-03P, 66-IT-03
mT Drive 66-IT-03P, 66-IT-03
44935L Tungsten Impedance: 1M@220Hz, Total length
to macro contact: 205.72mm, Total
extension length to tip: 215.72mm, Max
diameter: 0.55mm
STar Drive
70-IT-AR5P +
70-CN-ET, 70-IT-04
Platform
mT Drive 66-IT-AR5P, 66-IT-04
STar Drive 66-IT-03P, 66-IT-03
mT Drive 66-IT-03P, 66-IT-03
5030R
5035Z
Platinum Impedance: 1M@1kHz, Total length
to macro contact: 234.2mm, Total
extension length to tip: 244.2mm, Max
diameter: 0.56mm
mT Drive 66-IT-7100, MER-6000
Nexframe
mT Drive 66-IT-3000
Nexdrive 66-IT-4000
5035L Platinum Impedance: 1M@220Hz, Total length
to macro contact: 234.2mm, Total
extension length to tip: 244.2mm, Max
diameter: 0.56mm
mT Drive 66-IT-7100, MER-6000
Nexframe
mT Drive 66-IT-3000
Nexdrive 66-IT-4000
5730R
5735Z
Platinum Impedance: 1M@1kHz, Total length
to macro contact: 227.2mm, Total
extension length to tip: 237.2mm, Max
diameter: 0.56mm
STar Drive
70-IT-7107 +
70-CN-ET
Nexframe
STar Drive 70-IT-3007
5735L Platinum Impedance: 1M@220Hz, Total length
to macro contact: 227.2mm, Total
extension length to tip: 237.2mm, Max
diameter: 0.56mm
STar Drive
70-IT-7107 +
70-CN-ET
Nexframe
STar Drive 70-IT-3007

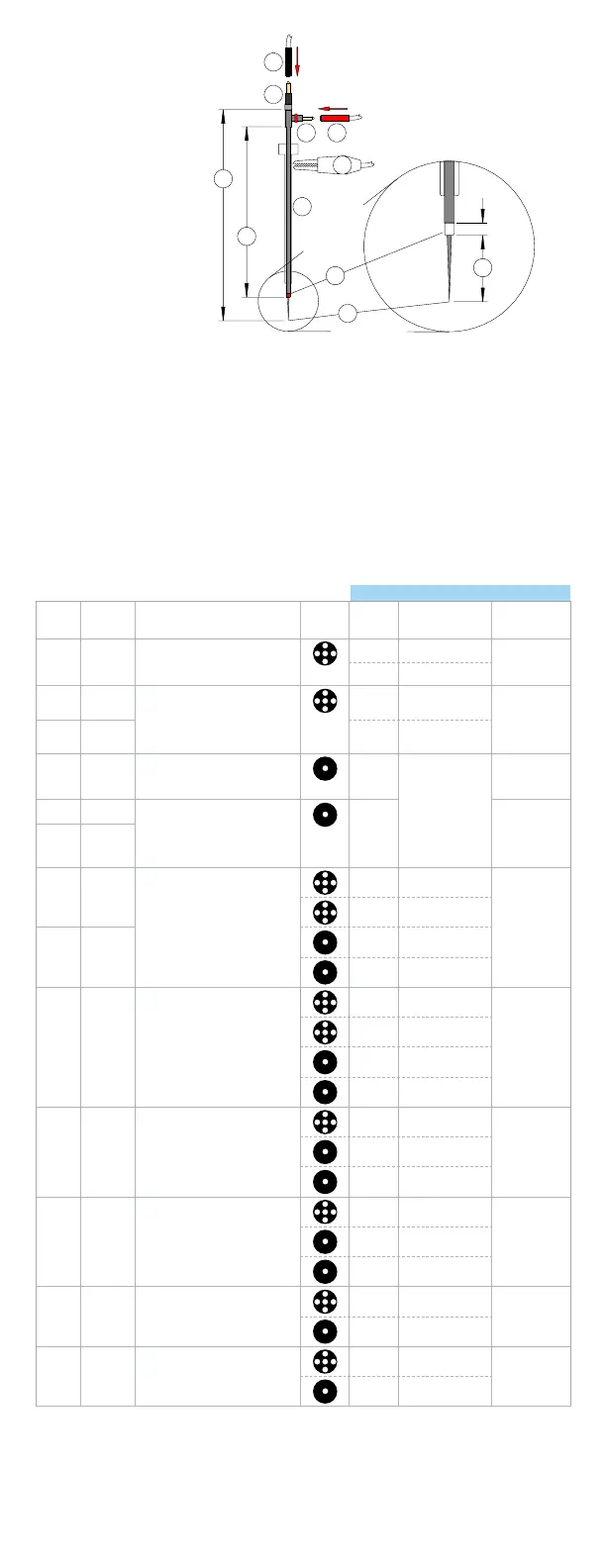

Used with:
1
2
3
A
5
6
4
7
B
C
8
1. Micro Contact
2. Macro Contact
3. Insertion Tube
4. Macroelectrode Tip
5. Microelectrode Tip
6. Black
7. Re d
8. Alligator Clip
A. Electrode Length
B. Differential Length
C. Macro Tube Length
In vivo measured impedances may differ from the above specified impedances due to various contributing
factors, including but not limited to immersion length, measurement current and temperature.
