FIAB 4427 Easypace - Customer Interface; Commands and Controls

Cardiac stimulator 4427 Easypace - Instructions for use
18/40
8. CUSTOMER INTERFACE
8.1. Commands and Controls

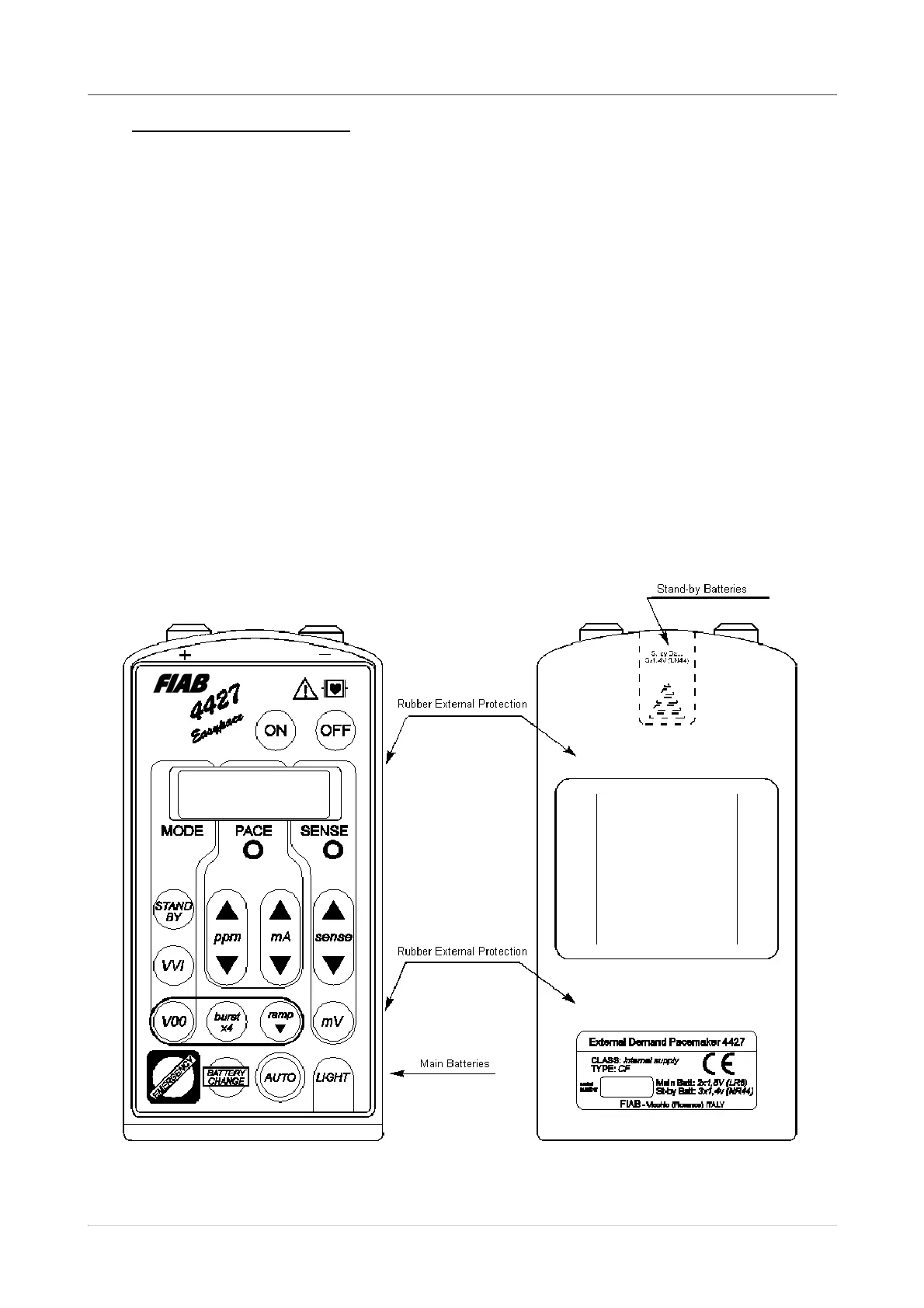

The figure below is an ensemble view of the heart stimulator 4427 Easypace
showing the following details:
• ON/OFF switches;
• LCD display for parameters setting and monitoring;
• signalling LED for stimulation (red) and sense (green);
• keyboard for setting the operation mode and regulating the stimulation impulse and
sense threshold;
• dedicated keys for quick access to stimulation, battery replacement and display
illumination;
• rubber external protection;
• doors for access to main and stand-by batteries housing.
Illustrated in the next part of this section are the unit’s operational functions and controls.
