40
C
B
A
SCHRAUBE
SCREW
VIS
TORNILLO
VITE
17
SCHRAUBE
SCREW
VIS
TORNILLO
VITE
17
REGULIERUNGSSCHRAUBE
RESTOP SCREW
VIS DE BLOCAGE
TORNILLO DE BLOQUEO
VITE DI FERMO
5
EN

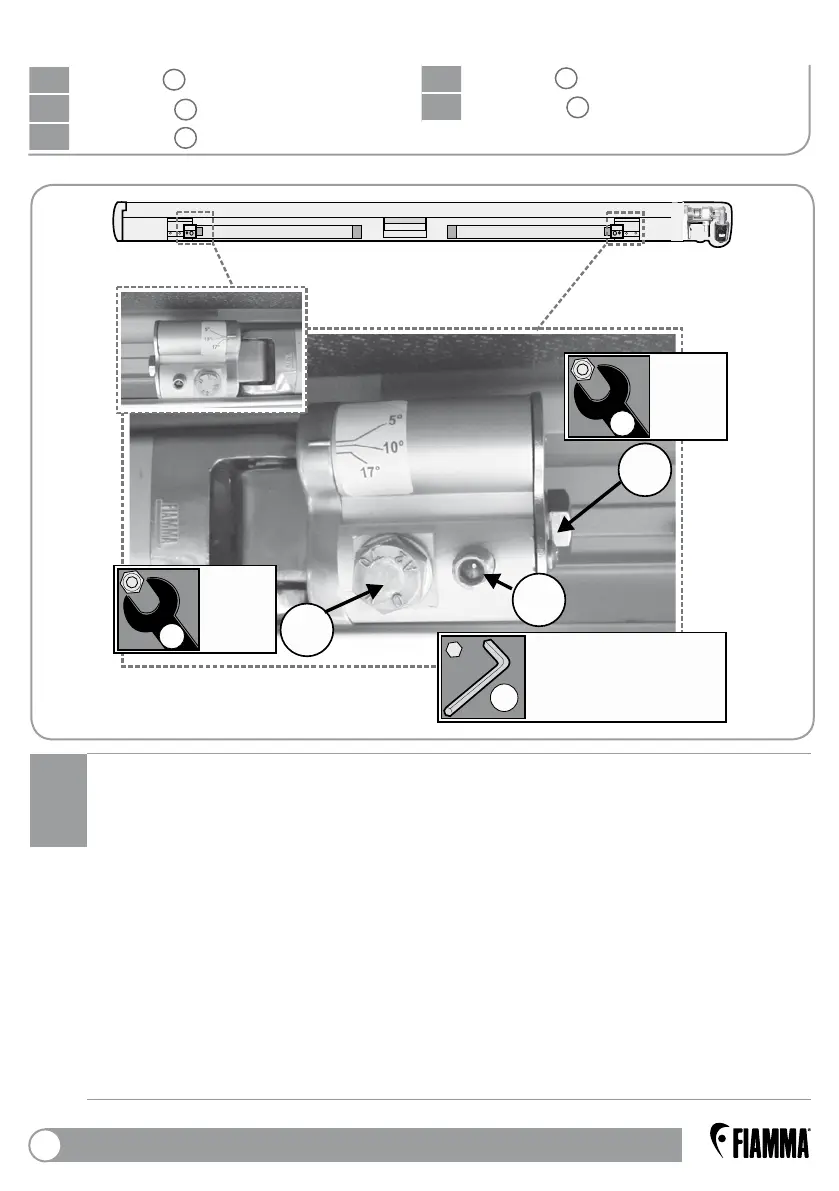

Problem 1 arm adjustment
ES
Problema 1 regulacion del brazo
DE
Problem 1 Armregulierung
FR
Problème 1 réglage du bras
IT
Problema 1 regolazione del braccio
EN
1 - Completely open the awning.
2 - Lightly loosen the screw A.
3 - Unscrew, till nearly take it out, the dowel for regulation (it is a stop screw).
4 - Then operate on screw B, gradually, rotating clockwise to rise the arm and
rotating anti clockwise to lower it always checking that the lead bar moves in
a horizontal position.
5 - Once found the right adjust, screw in the screw C till the stop and then
Lock the screw A.
These operations can inhibit the regulation of the inclination of the lead bar, you
must proceed very gradually.
