2.3 150 ECOJET
Protected device Fuse Ampere

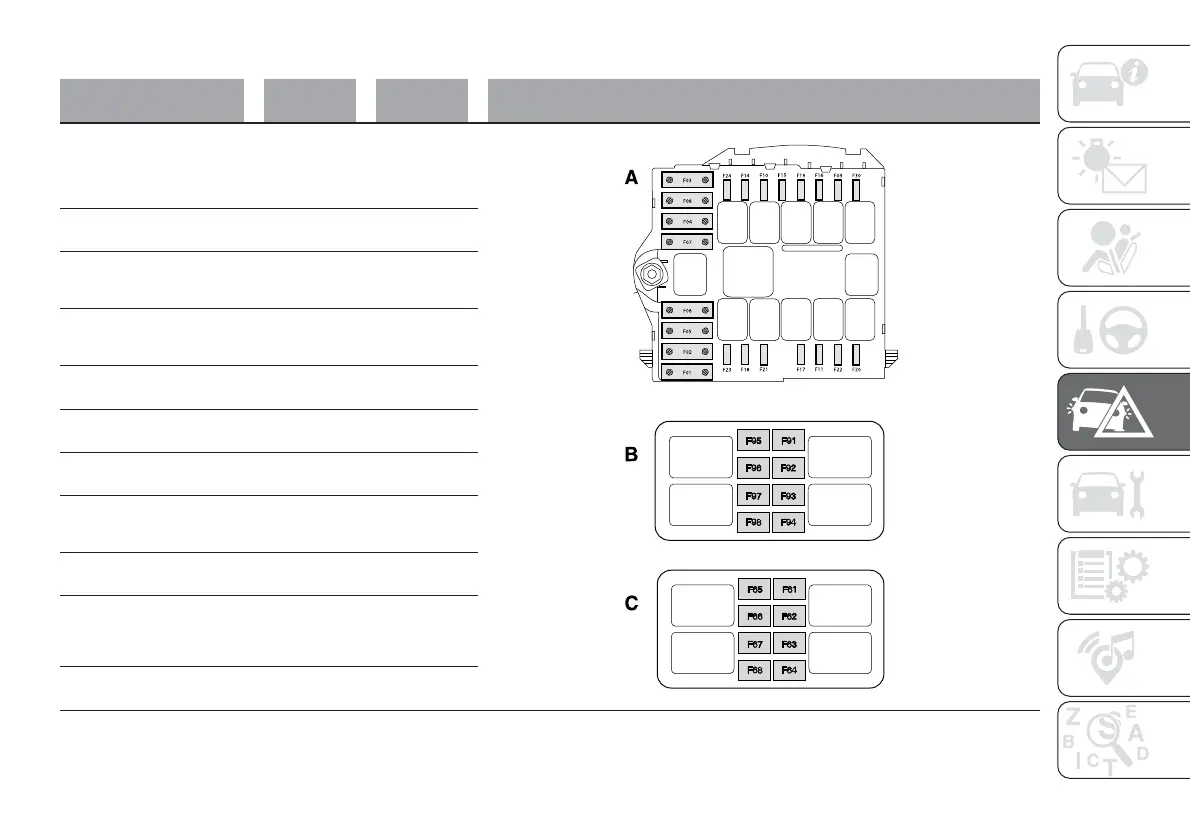

TO: Engine compartment fusebox – B: Optional wiring module 1 –
C: Optional wiring module 2
Passenger compartment
ventilation with Webasto,
robotised gearbox pump
(+battery)
F05 20
Engine cooling fan enable F06 20
Passenger compartment
fan (+key)
F08 40
Rear power socket
(+battery)
F09 15
Horn F10 15
Power socket (+battery) F14 15
Cigar lighter (+battery) F15 15
Air conditioning
compressor
F19 7.5
Windscreen wiper F20 30
Auxiliary control panel for
mirror movement and
folding (+key)
F24 7.5
Mirror demisting F30 15
