ENGINE COMPARTMENT

.

CHECKING LEVELS

158) 159) 59)

0.9 TwinAir/0.9 TwinAir Turbo versions

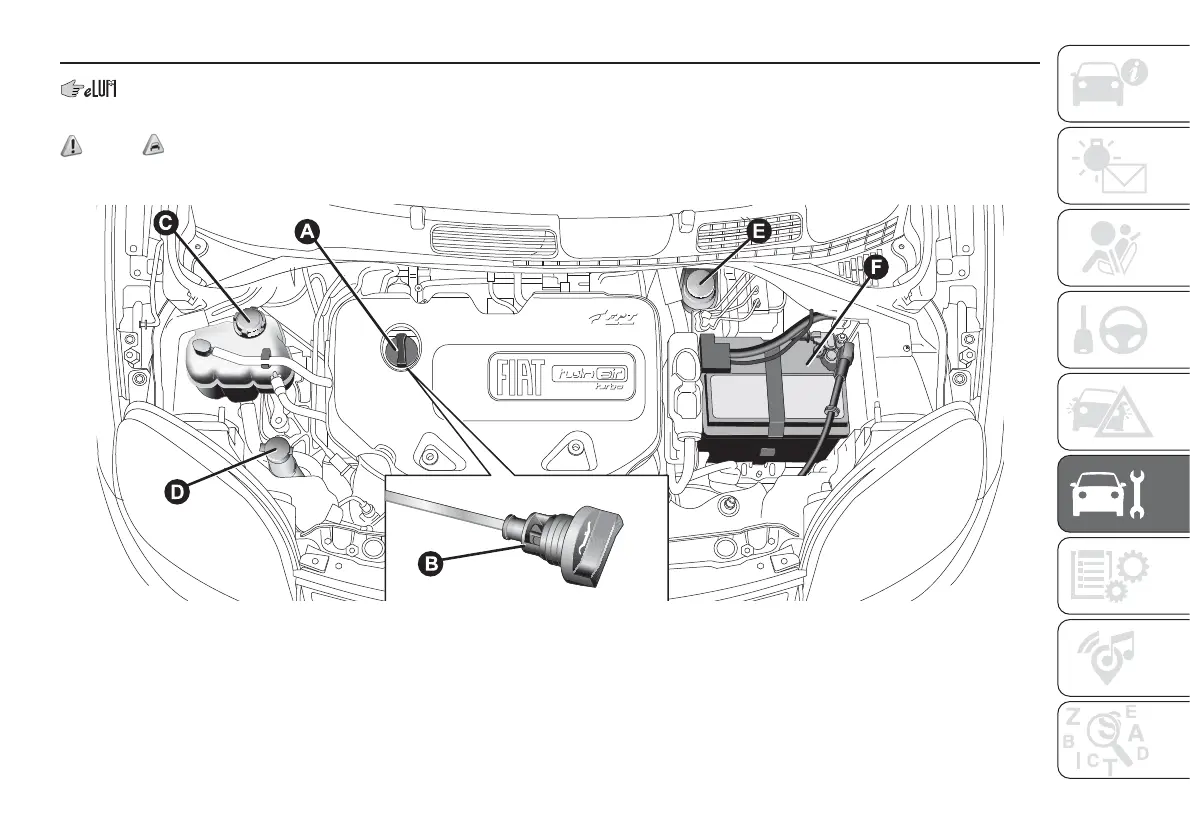

A. Engine oil plug / filler-–B.Engine oil dipstick-–C.Engine coolant-–D.Washer fluid for windscreen/rear window-–E.Brake fluid-–F.

Battery

123

F1D0097

137
