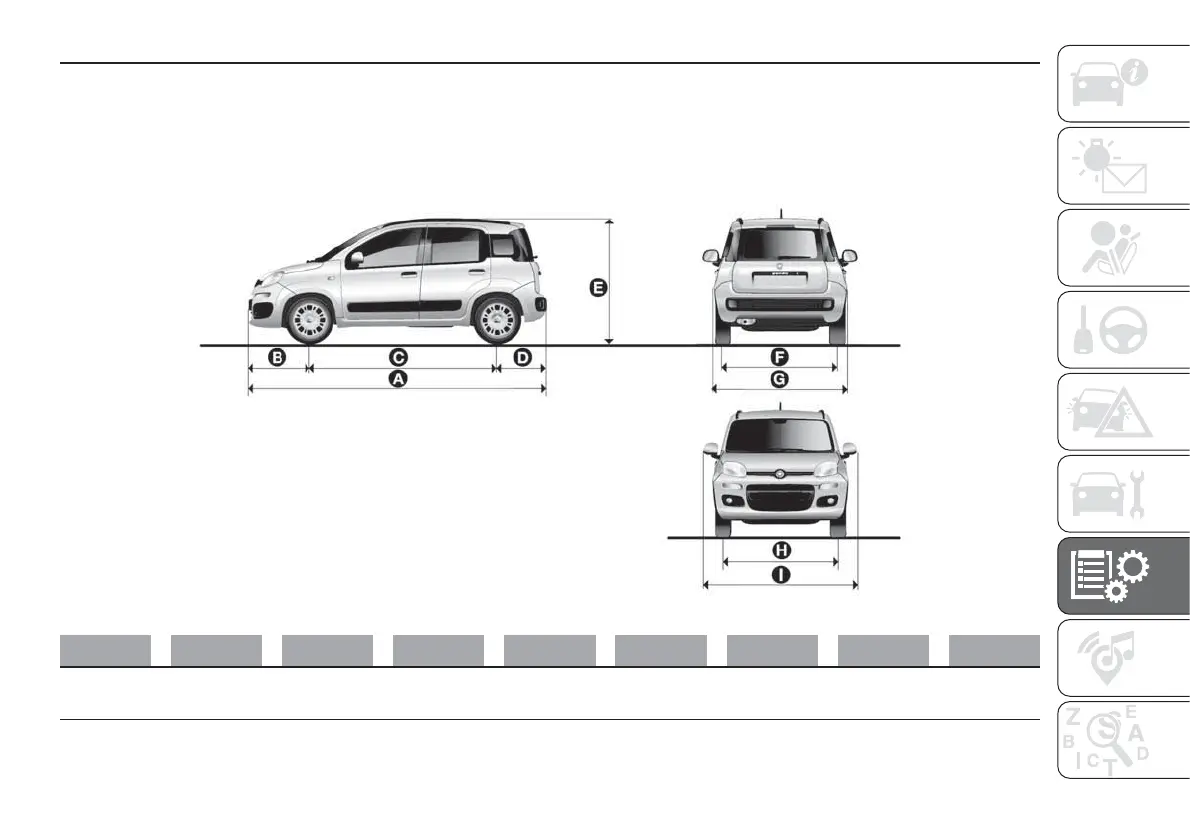

DIMENSIONS

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with

vehicle unladen.

LUGGAGE COMPARTMENT CAPACITY Capacity (VDA standards) =225 litres

Panda versions

ABCDEFGH I

3653 747 2300 606

1551/1605

(*) 1407/1408(*)

1643

1409/1414

(*)

1882

(*) Natural Power versions.
