Fibocom G510 Hardware User Manual

G510 Hardware User Manual Page
25
of
42

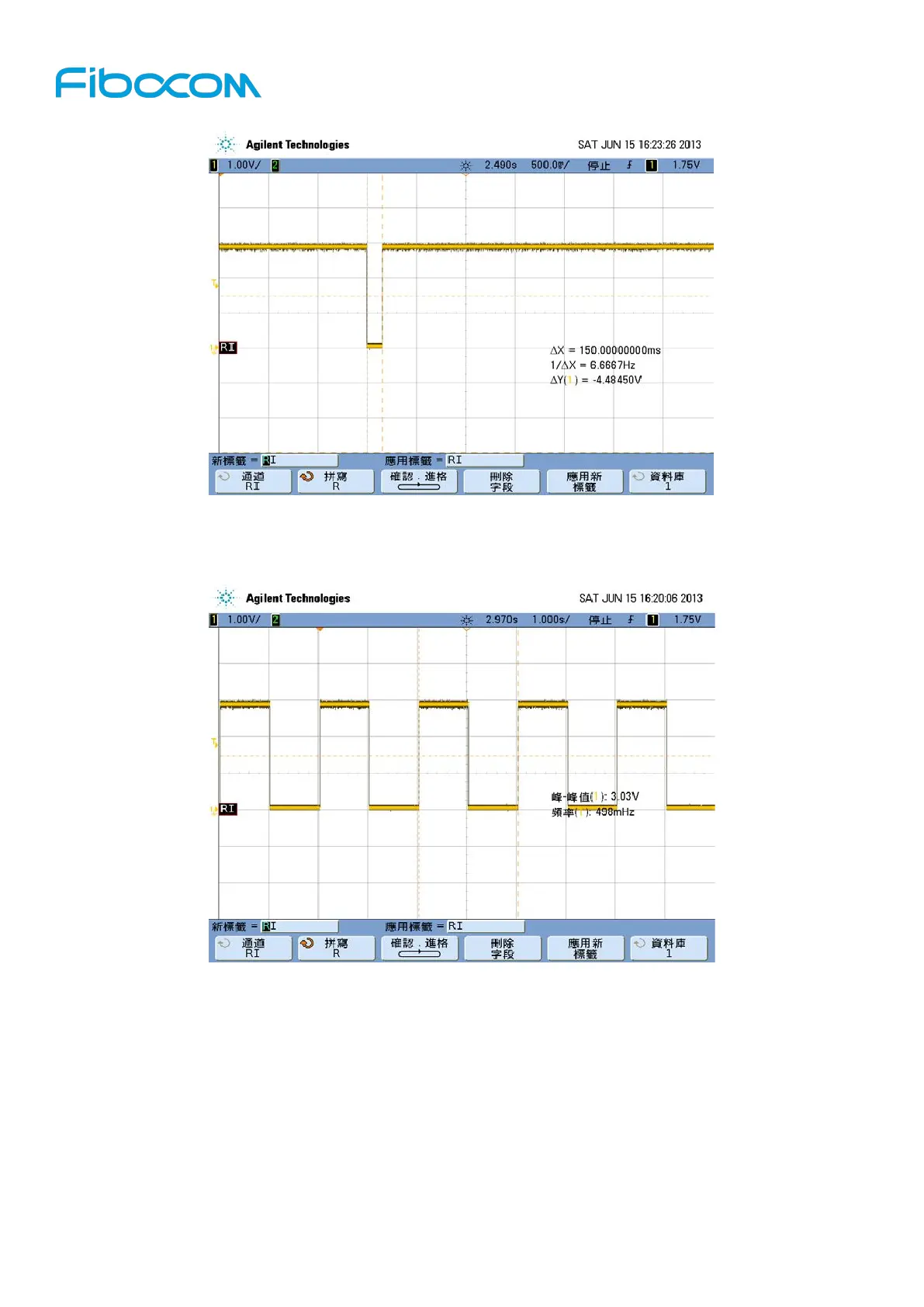

Figure 3- 8 The Module gets a message
The following figure shows the UART1_RING signal status when there is an incoming call.
Figure 3- 9 An incoming call
3.7.5 DCD Indicate
The UART1_DCD signal serves to indicate GPRS data mode. The detail definition refers to AT&C
command.
