Fibocom G510 Hardware User Manual

G510 Hardware User Manual Page
9
of
42
GSM 07.10 multiplexing protocol
SMS
MO/MT Text and PDU modes
Cell broadcast
3 Hardware Interface Description
The following section describes in details the hardware requirements for properly interfacing and
operating the G510 module.
3.1 Block Diagram

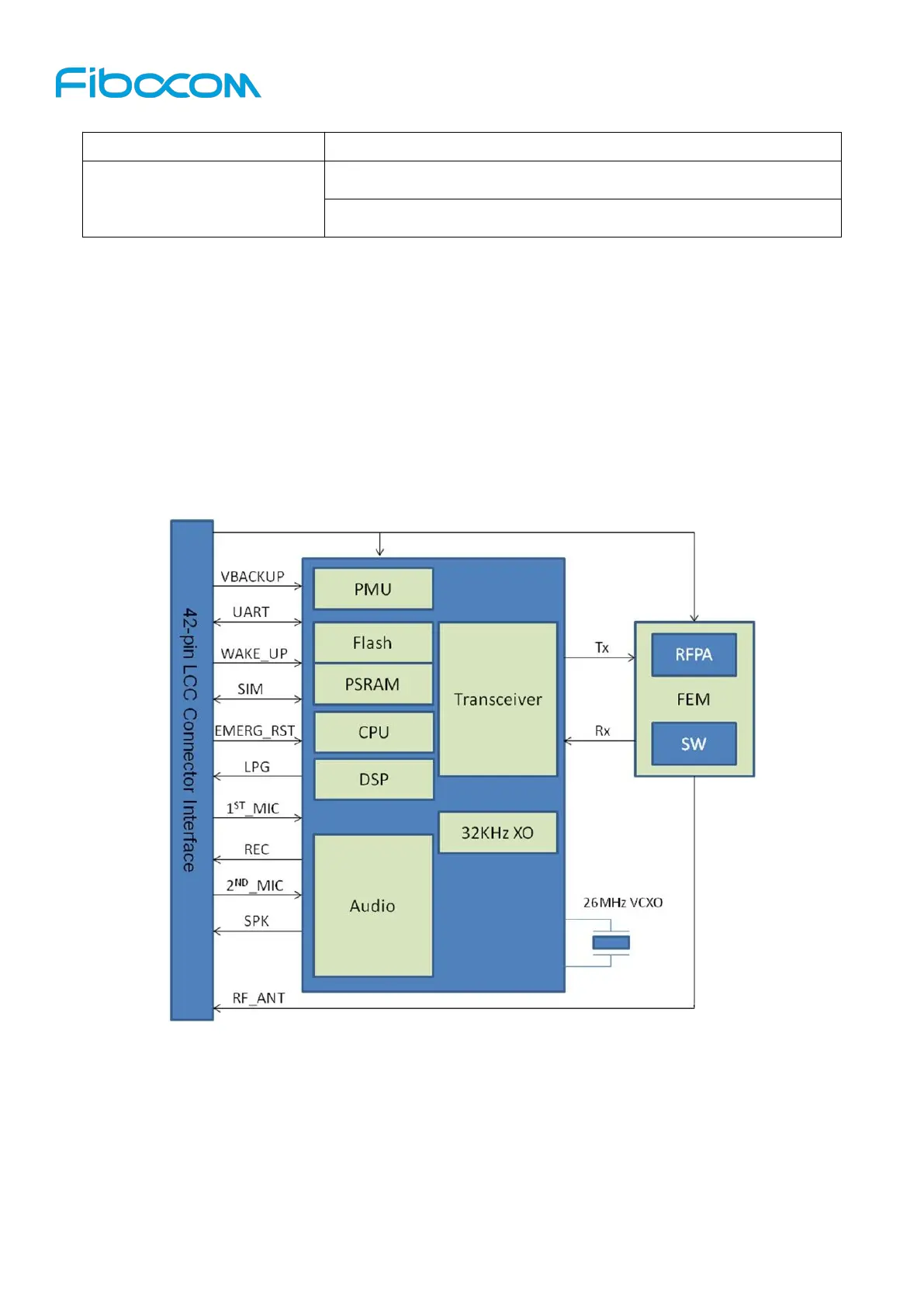

Figure 3-1 shows the block diagram of the module. The module contains the following parts:
Digital block, analog block and GSM transceiver block.
Figure 3- 1G510 Block Diagram
Digital Baseband Block

Integrated Flash on chip
 Integrated PSRAM on chip
