Installation Procedures

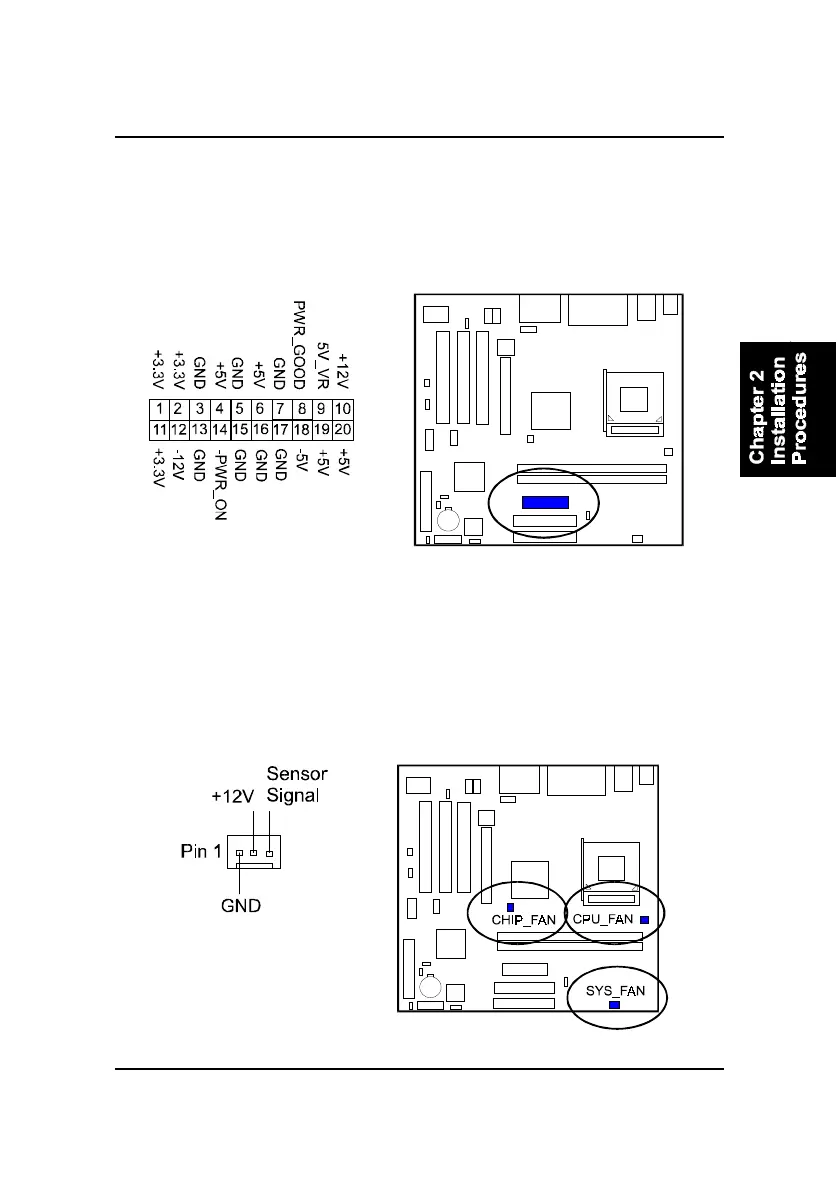

Fan Connectors
The connector, CPU_FAN, is linked to the CPU fan to lower the CPU tempera-
ture. The CHIP_FAN connector can be used by North Bridge cooling fan. The
SYS_FAN connector allows you to link with the cooling fan on the system
case to lower the system temperature.
ATX Power Connector
This 20-pin male block connector is connected to the ATX power supply. The
plug from the power supply will only insert in one orientation because of the
different hole sizes. Find the proper orientation and push down firmly making
sure that the pins are aligned.
