CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR
ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY
POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.

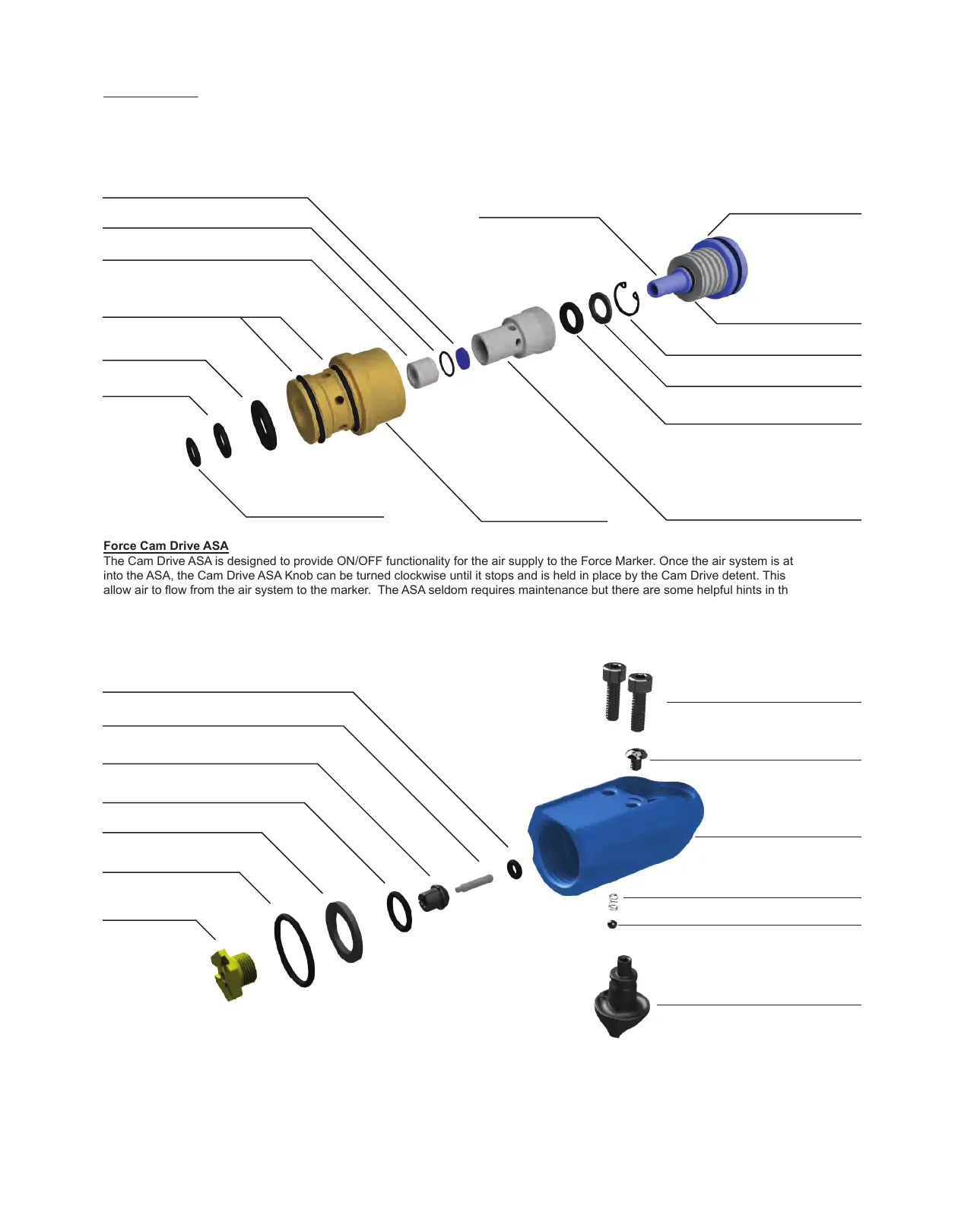

Rhino Regulator
The Field One Force’s main air supply is regulated by the Rhino Regulator, which is mounted in the top of the ASA and housed within the
Force Grip Frame. Once you have connected an air source to the ASA, the air travels through the Rhino Regulator (and is regulated down to
about 145-155 psi) and directed to the solenoid and the Force Engine. The Force Rhino Regulator requires minimal maintenance and
should only be serviced if there is a decline in performance. Cleaning the piston, the reg seat and the reg housing and applying lube to all
regulator seals will help to keep the regulated air flow consistent.
Force Cam Drive ASA
The Cam Drive ASA is designed to provide ON/OFF functionality for the air supply to the Force Marker. Once the air system is attached fully
into the ASA, the Cam Drive ASA Knob can be turned clockwise until it stops and is held in place by the Cam Drive detent. This action will
allow air to flow from the air system to the marker. The ASA seldom requires maintenance but there are some helpful hints in the
TROUBLESHOOTING section of this manual if you detect a leak coming from the ASA or
ASA knob. Before attaching your air system to the
Cam Drive ASA, it is recommended that you clear any dirt or debris from the opening of the ASA, the ASA threads and the pin or ball valve
on your air system regulator. WARNING: Once you have turned your Cam Drive ASA to the OFF position and removed all paintballs from
your marker, take a clearing shot by holding down the trigger for one second to ensure there is no gas stored in the marker.
ASA Cam Drive Knob
Cam Detent Bearing
Cam Detent Spring
ASA Body
Cam Drive Knob Retaining Screw
ASA to Grip Frame Mounting Screws
005 ASA Main Seal
ASA Cam Activation Pin
Main Seal Support
011 ASA Outside Main Seal Retainer
ASA Filter
017 Outside ASA Filter
Main Seal Retainer
Reg Seat
Reg Adjuster
.237 OD Between Reg Seat and Reatiner
1x12 Outside Reg Adjuster Housing
12 U-Cup Inside Top Reg
Adjuster Housing
011 Inside Bottom Reg
Adjuster Housing
4.5x 1.5 90D Bottom Reg
Between Reg Adjuster and
ASA
Reg Adjuster
Reg Seat Retainer
008 Inside Reg Seat Housong
Under Washer and C- Clip
C-Clip
O-Ring Reta
ining Washer
Between O-ring and C-Clip
Spring Stack
Reg Piston
014 Top Reg Piston
To Next Page
