FIELD ONE Force - Force Electronics and OLED Screen

CAUTION: READ AND FOLLOW ALL SAFETY GUIDELINES AND WARNINGS BEFORE HANDLING OR
ATTEMPTING ANY WORK ON YOUR FIELD ONE PAINTBALL MARKER. SHOULD YOU BE UNSURE AT ANY
POINT, STOP AND GET HELP FROM A FIELD ONE PAINTBALL CERTIFIED TECHNICIAN.
Force Electronics and OLED Screen
The electronics in the Field One Force serve as the “central nervous system” for the Force marker.
There are 5 board types in the Force
• Force Main Board
• Force Bridge Board (connects the eyes (4C-ES), batteries (power source and the Jumper Board)
• 4C-IS Boards (2)
• Force Jumper Board (allows the user to separate the body from the grip frame without disconnecting wires).
• Force Power Control and OLED Board
To eliminate the use of long wire harnesses and delicate wire harness connectors, the Force makes use of spring loaded pin connectors and
low profile ribbon connectors to keep power and communication going to and from the different electronic components of the marker. The
Force
Mainboard comes equipped with a capacitor as a failsafe in case of temporary disconnect between the battery and the electronics in
the marker due to vibration or a hard impact with the ground. It is important to keep the Force and the electronic components in the Force
free from moisture, paint and debris. Never submerge the Force in water and always perform proper maintenance after using the Force in
wet conditions. Cleaning and drying the electronic components of the Force with a dry soft cloth and dry cotton swab will help to prolong
their life after using in wet conditions. If there is built up paint or dirt residue, you can use rubbing alcohol on a swab to clean electronics and
hard to reach cavities. Make sure electronic components and connectors are dry and clean before reassembly. Changing out wet batteries
and drying out the battery compartment will also help to prolong the life of the electronic components.

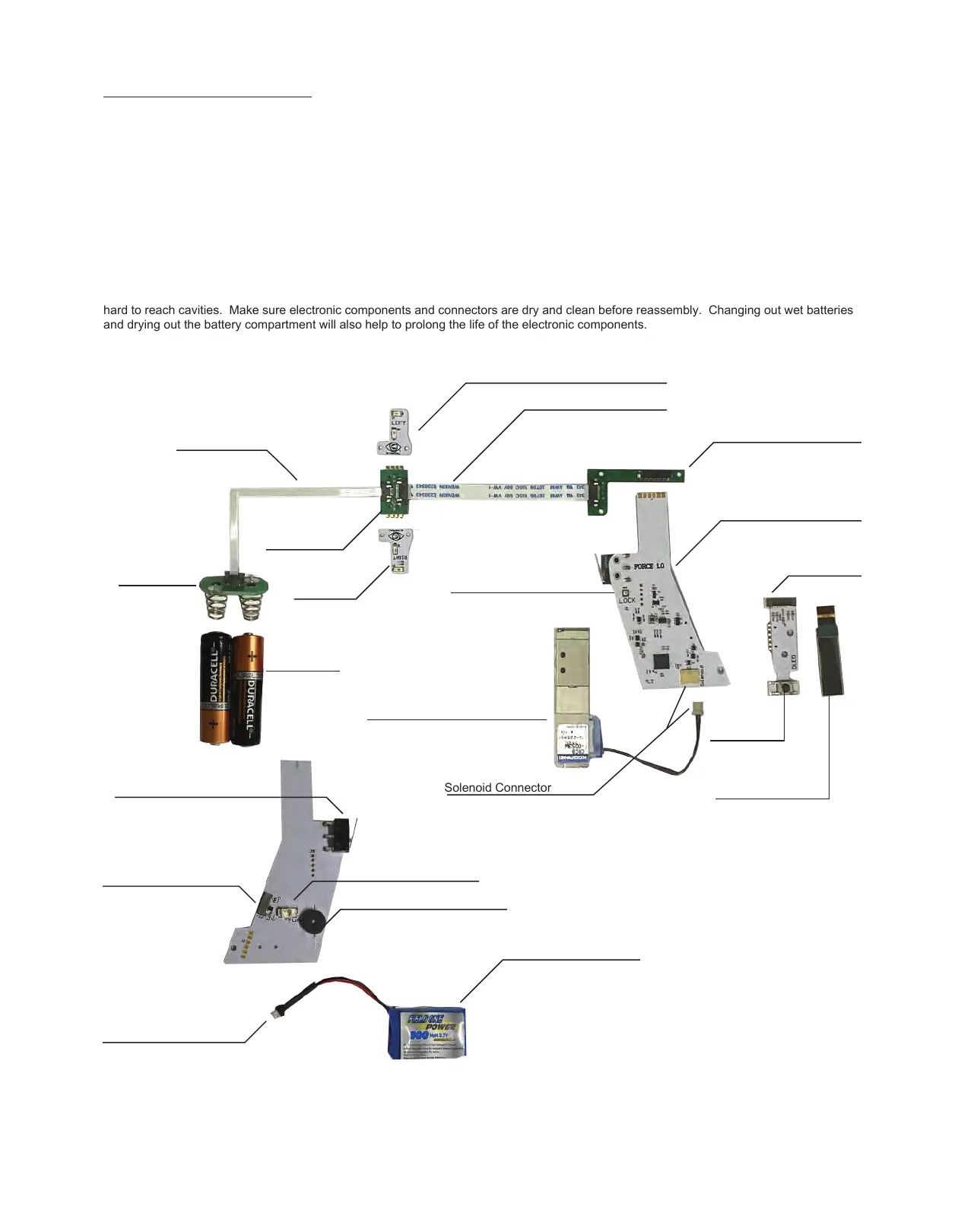

Battery Board
Battery Harness
Bridge Board
Left Eye
Jumper Harness
Jumper Board
Main Board
PCB Board
OLED Screen
Right Eye
Solenoid Connector
Solenoid
Tournament Lock Button
Microswitch
Power Select Switch
LiPo Battery Connector
Speaker
LiPo Rechargeable Battery
LiPo Battery Connector
Power Button
AA Batteries
