8
DC Wiring (cont’d)

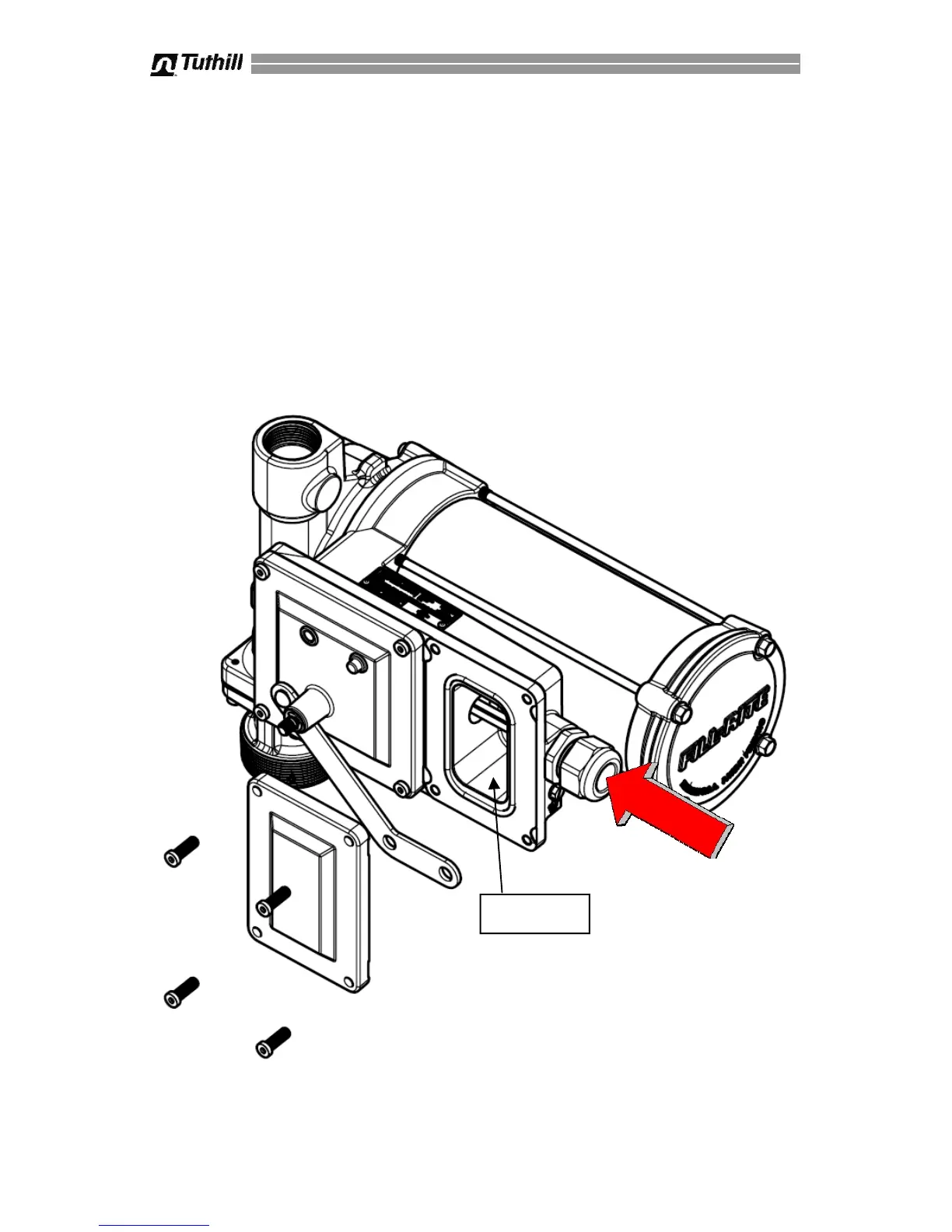

Figure 4
W
i
r
e
i
n
Junction Box
For Skid Mounted Tanks
1. Pass the electrical wires to the power source, supporting the wires as necessary and
protecting them from sharp edges, heat and anything that could damage the wires.
2. Attach one end of the fuse holder to the red pump wire. Make a solid electrical
connection to the positive terminal of the power source with the other end of the
fuse holder. Make a solid connection with the black pump wire to the negative
terminal of the power source.
3. Check all connections to make sure they are connected per instructions and all
electrical codes. Install the 50 amp fuse in the fuse holder. The installation is now
complete.
