Electrical Wiring
Wiring Procedure
2. Screw the inlet flange (with
suction pipe) into the tank
flange; seal threads liquid
tight with appropriate thread
sealant (Figure 2).

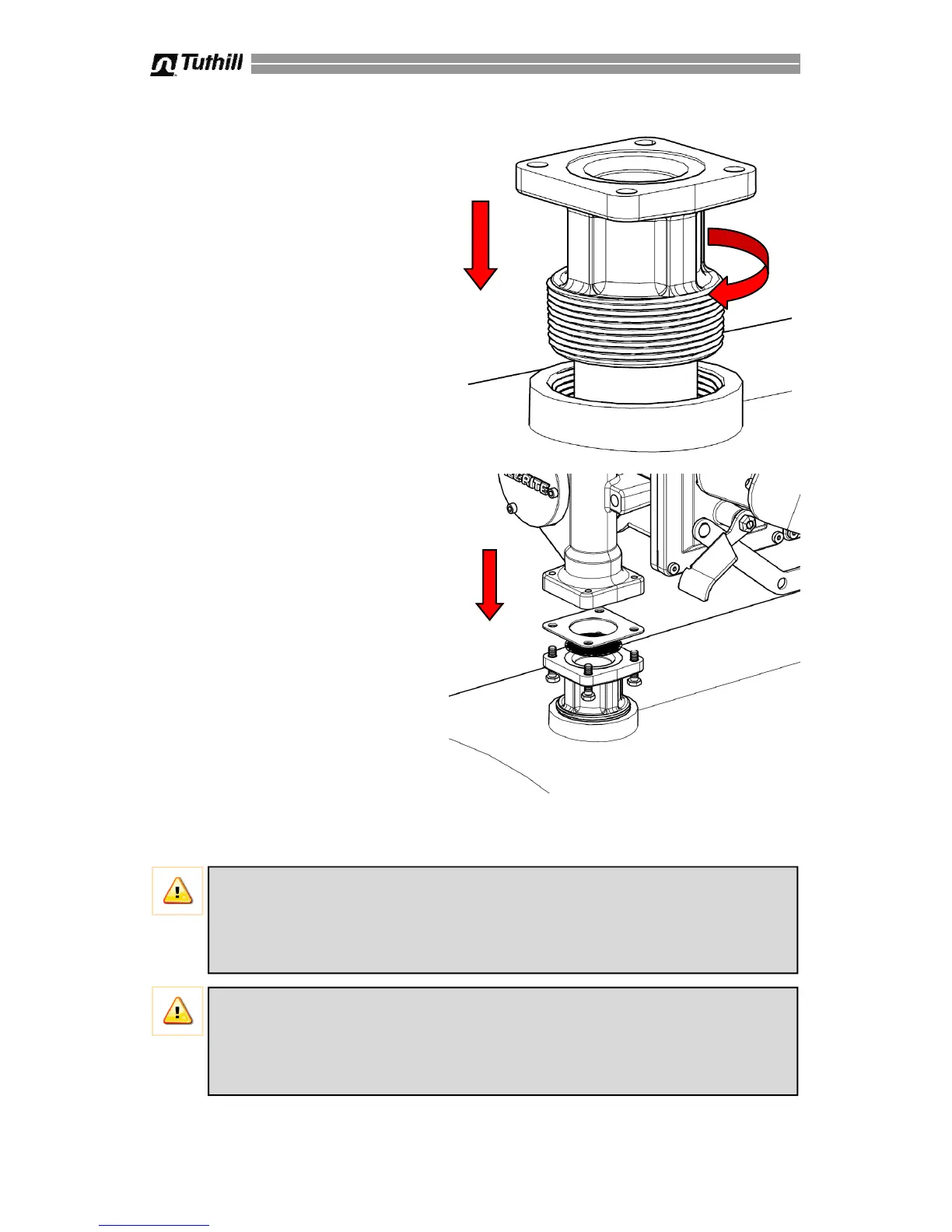

Typical Skid Tank Installation (cont’d)
Figure 2
3. Mount the pump on the
adapter; making sure
the seal and screen are
installed as shown.
(Figure 3).
Figure 3
CAUTION! The FR3200 series pump is designed to operate on 12 VDC. Use
the supplied battery cable to supply power to the pump from a 12 VDC battery.
A 50 amp fuse should be installed on the battery cable (see wiring diagram page
9) to protect the wire in case of electrical short.
CAUTION! Voltage drop across a wire varies depending on the distance from
the battery to the pump. If the distance is greater than 20’, refer to the National
Electrical Code (NEC) or local codes to ensure the wire is of the correct size
being used for this application.
