INSTALLATION AND OPERATION MANUAL
| 900 MECHANICAL METER

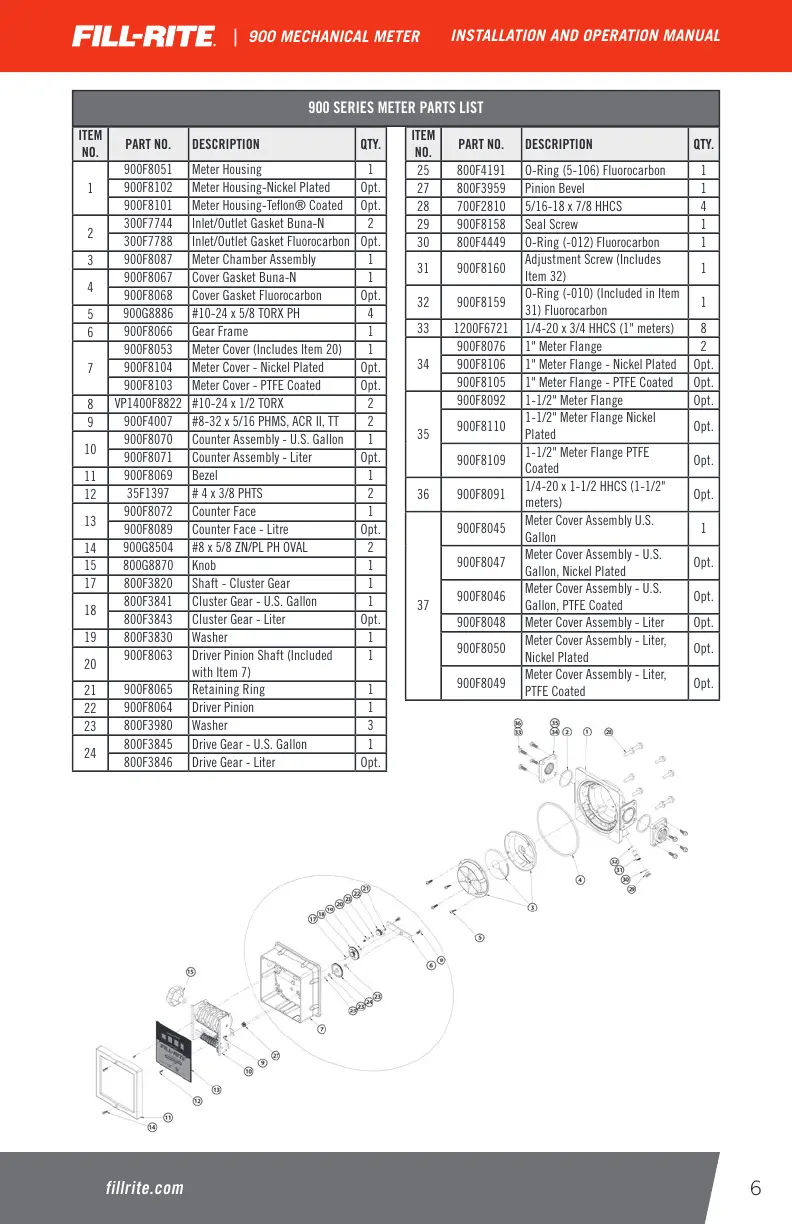

900 SERIES METER PARTS LIST
ITEM
NO.
PART NO. DESCRIPTION QTY.
1
900F8051 Meter Housing 1
900F8102 Meter Housing-Nickel Plated Opt.
900F8101 Meter Housing-Teon® Coated Opt.
2
300F7744 Inlet/Outlet Gasket Buna-N 2
300F7788 Inlet/Outlet Gasket Fluorocarbon Opt.
3
900F8087 Meter Chamber Assembly 1
4
900F8067 Cover Gasket Buna-N 1
900F8068 Cover Gasket Fluorocarbon Opt.
5
900G8886 #10-24 x 5/8 TORX PH 4
6
900F8066 Gear Frame 1
7
900F8053 Meter Cover (Includes Item 20) 1
900F8104 Meter Cover - Nickel Plated Opt.
900F8103 Meter Cover - PTFE Coated Opt.
8
VP1400F8822 #10-24 x 1/2 TORX 2
9
900F4007 #8-32 x 5/16 PHMS, ACR II, TT 2
10
900F8070 Counter Assembly - U.S. Gallon 1
900F8071 Counter Assembly - Liter Opt.
11
900F8069 Bezel 1
12
35F1397 # 4 x 3/8 PHTS 2
13
900F8072 Counter Face 1
900F8089 Counter Face - Litre Opt.
14
900G8504 #8 x 5/8 ZN/PL PH OVAL 2
15
800G8870 Knob 1
17
800F3820 Shaft - Cluster Gear 1
18
800F3841 Cluster Gear - U.S. Gallon 1
800F3843 Cluster Gear - Liter Opt.
19
800F3830 Washer 1
20
900F8063 Driver Pinion Shaft (Included
with Item 7)
1
21
900F8065 Retaining Ring 1
22
900F8064 Driver Pinion 1
23
800F3980 Washer 3
24
800F3845 Drive Gear - U.S. Gallon 1
800F3846 Drive Gear - Liter Opt.
ITEM
NO.
PART NO. DESCRIPTION QTY.
25 800F4191 O-Ring (5-106) Fluorocarbon 1
27 800F3959 Pinion Bevel 1
28 700F2810 5/16-18 x 7/8 HHCS 4
29 900F8158 Seal Screw 1
30 800F4449 O-Ring (-012) Fluorocarbon 1
31 900F8160
Adjustment Screw (Includes
Item 32)
1
32 900F8159
O-Ring (-010) (Included in Item
31) Fluorocarbon
1
33 1200F6721 1/4-20 x 3/4 HHCS (1" meters) 8
34
900F8076 1" Meter Flange 2
900F8106 1" Meter Flange - Nickel Plated Opt.
900F8105 1" Meter Flange - PTFE Coated Opt.
35
900F8092 1-1/2" Meter Flange Opt.
900F8110
1-1/2" Meter Flange Nickel
Plated
Opt.
900F8109
1-1/2" Meter Flange PTFE
Coated
Opt.
36 900F8091
1/4-20 x 1-1/2 HHCS (1-1/2"
meters)
Opt.
37
900F8045
Meter Cover Assembly U.S.
Gallon
1
900F8047
Meter Cover Assembly - U.S.
Gallon, Nickel Plated
Opt.
900F8046
Meter Cover Assembly - U.S.
Gallon, PTFE Coated
Opt.
900F8048 Meter Cover Assembly - Liter Opt.
900F8050
Meter Cover Assembly - Liter,
Nickel Plated
Opt.
900F8049
Meter Cover Assembly - Liter,
PTFE Coated
Opt.
