48

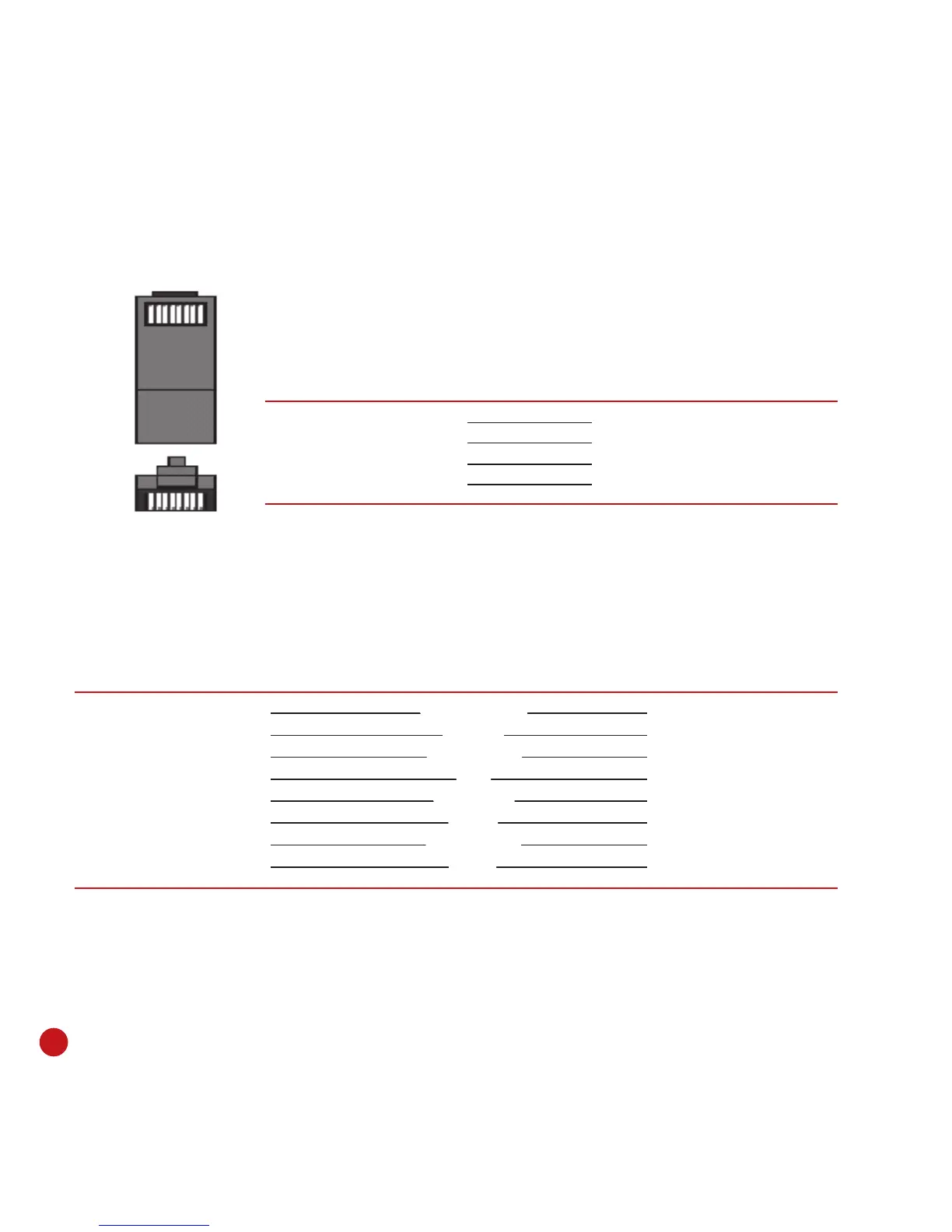

1 8
TOP
FRONT
1 8
Ethernet 10/100Base-T Crossover Cable
This cable can be used to cascade hubs, or for connecting two Ether-
net stations back-to-back without a hub. It works with both 10Base-T
and 100Base-TX.
JOINT 1 PIN JOINT 2 PIN
TX + 1 • • 3 RX +
TX - 2 • • 6 RX -
RX + 3 • • 1 TX +
RX - 6 • • 2 TX -
Ethernet 10/100Base-T Straight Thru Cable
This cable will work with both 10Base-T and 100Base-TX and is used to connect a network
interface card to a hub or network outlet. These cables are sometimes called “whips”.
CONNECTOR PIN CABLE COLOR CONNECTOR
TX + 1 • White/Orange • 1 TX +
TX - 2 • Orange • 2 TX -
RX + 3 • White/Green • 3 RX +
4 • Blue • 4
5 • White/Blue • 5
RX - 6 • Green • 6 RX -
7 • White/Brown • 7
8 • Brown • 8
