Finn EAGLE 244D - Lubrication Chart

13

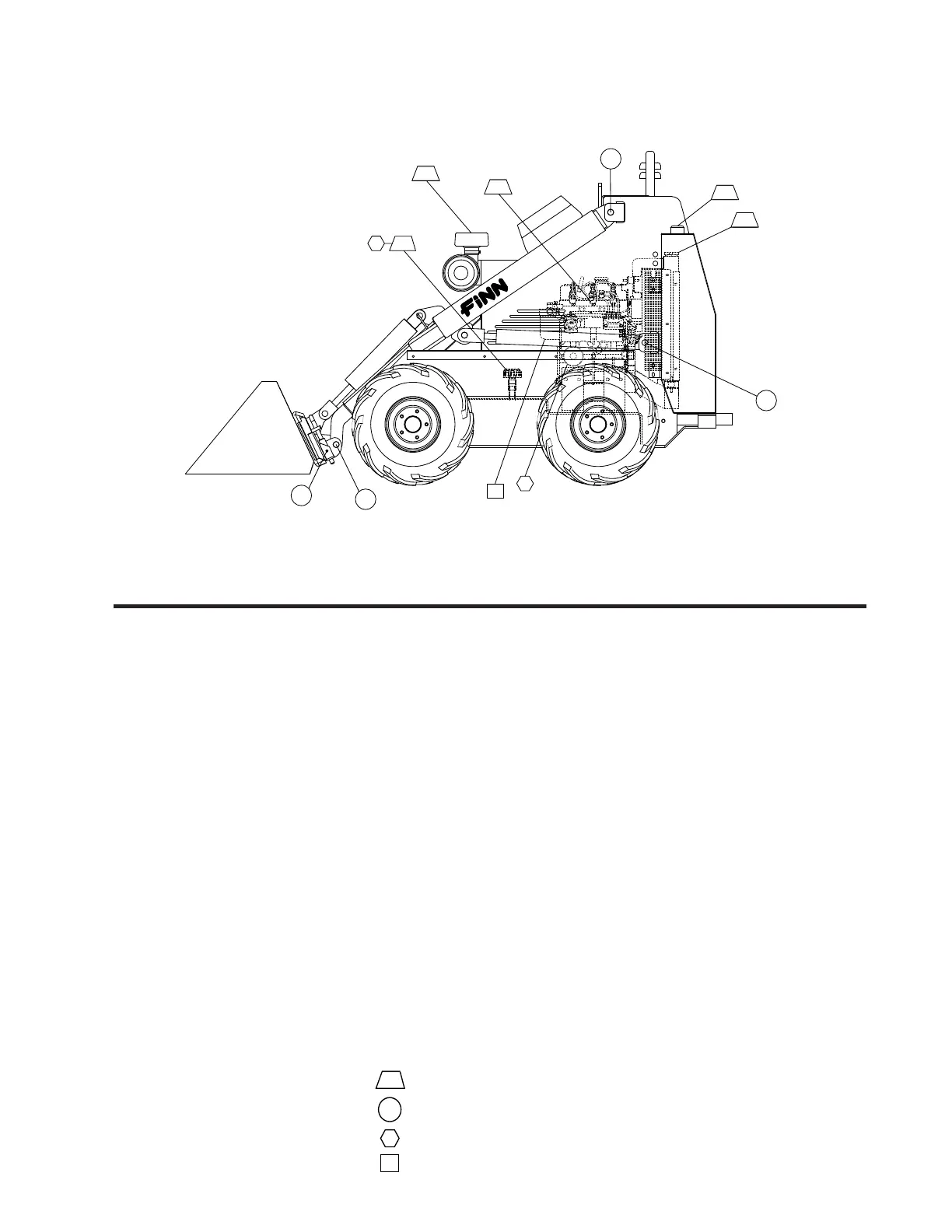

LUBRICATION CHART
Figure 2
Ref. No. Location Lubricant Frequency Number
1 Check Fuel Level FL Daily 2
2 Lubricate Pivot Pins CL Weekly 6
3 Lubricate Quick Attach Pins CL Weekly 2
4 Check Hydraulic Oil Level HO Daily 1
Change Hydraulic Oil and Filter HO Annually 1
5 Change Engine Oil and Filter MO See Engine Manual 1
Check Engine Oil Level MO Daily 1
6 Check Engine Air Filter Daily 1
7 Check Engine Coolant AF Daily 1
8 Check Fuel Filter See Engine Manual 1
LUBRICANT OR FLUID USED
CL Chassis Lubricant
MO Motor Oil SAE 15W-40
HO Hydraulic Oil Mobil DTE-13M
FL Gasoline
AF 50/50 Anti-Freeze and Water Mix
TIME KEY FLUID CAPACITIES
DAILY (8 hours) Fuel – 11 Gallons (42L)
WEEKLY (40 hours) Hydraulic Oil – 14.5 Gallons (55L)
ANNUALLY (1000 hours) Engine Oil – See Engine Manual
SEE ENGINE MANUAL
STEER
SKID
6
5
4
4
2
1
7
2
8
5
3
2
