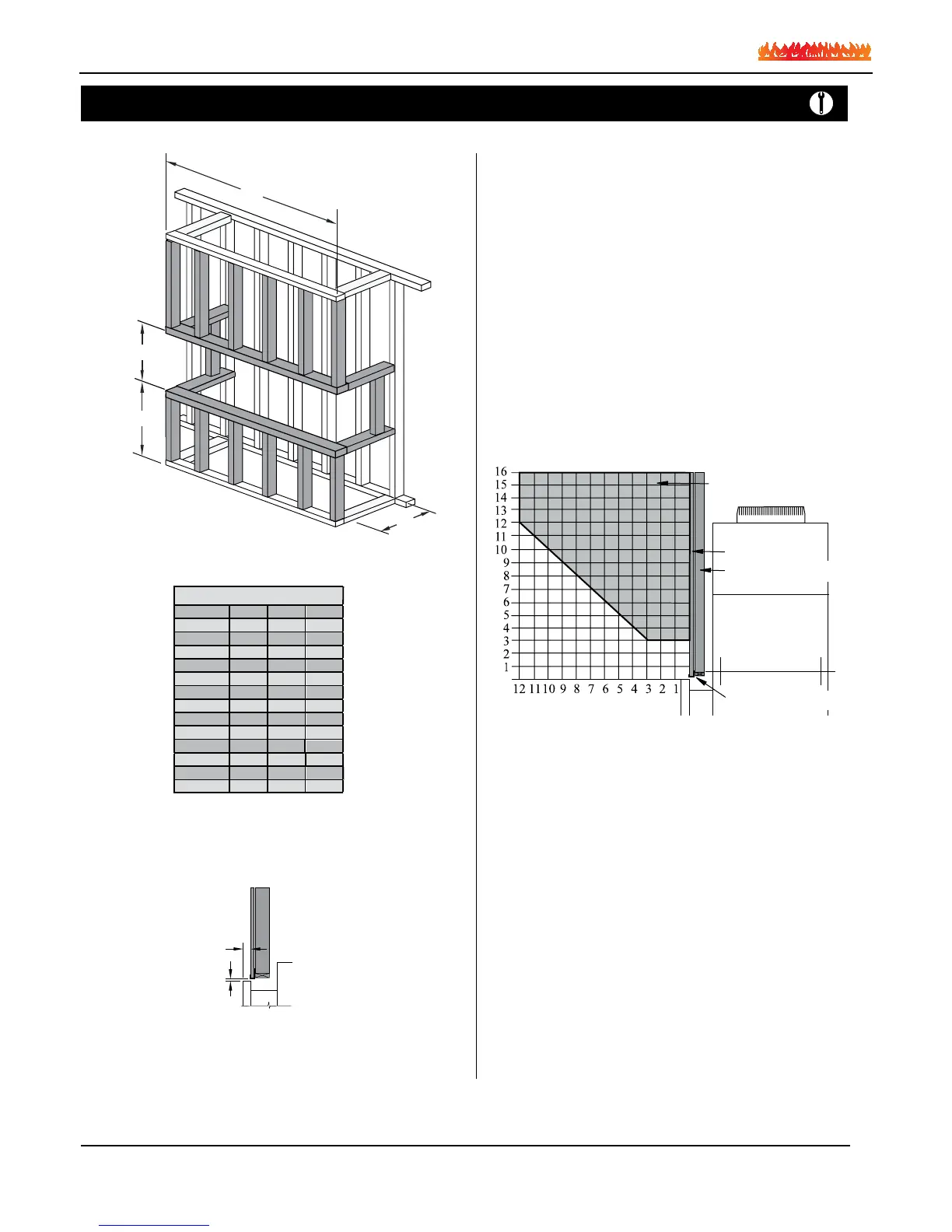

Figure 4. Combustible mantles and facing's (Both Sides Typical).
Installation
Figure 3. Framing dimensions
Framing the Door
Figure 3a. Door framing dimensions. (Both Sides Typical).
Refer to chart on page 3 for correct dimensions.
Finish drywall up to outside dimensions Q, and U. Use non
combustible J-track to finish edge of drywall. This will leave a 1/4"
opening to allow the CVIEW Door Frame to be slid into place.
Framing
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the
fireplace provided that they do not project beyond shaded area shown
in Figure 4. Side wall clearances are 3". Combustible surrounds may
be installed with 3" clearance to the side of the fireplace as shown in
Figure 5.
Fireplace Facing
When selecting the finish material for your fireplace, it is important
to remember the following: THE ELECTRICAL CONTROL PANEL
MUST NOT BE OBSTRUCTED IN ANY WAY - to do so prevents
access for servicing controls.
The face of the fireplace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must not
extend past the fireplace opening at all, because it will interfere with
the access to retainers for removal of glass door.
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
are for fire hazard prevention to combustible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
fireplaces which are hot, fuel and energy efficient.
Please be aware; temperatures over the mantel will rise above normal
room temperature and walls above fireplace may be hot to touch.
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause melt-
ing, deformation, discoloration or premature failure of T.V. and radio
components.
Painting:
Special care is recommended by the Master Painters and Decorators
Association, when painting the fireplace surrounds, to select and apply
a quality Alkyd sealer prior to the applying of latex paints. This is
to prevent leaching of water from evaporation and causing a brownish
staining effect to paint over coats.
Figure 3a. Framing dimensions. (Contact the manufacturer for all
dimensions for models C1620 through C2420).
R
Q
15 3/4”
U
*Shaded framing
must be Non-
combustible
material
C1720
C1620
C1520
C1420 169
/
Framing Dimensions
Q R
U
C520
19
21
5
/
8
C620
21
5
/
8
C720
21
5
/
8
C820
21
5
/
8
C920
23
5
/
8
C1020
23
5
/
8
C1120
23
5
/
8
C1220
145
1
/
8
23
5
/
8
C1320 157
1
/
8
23
5
/
8
1
8
23
5
/
8
133
1
/
8
121
1
/
8
109
1
/
8
97
1
/
8
73
1
/
8
85
1
/
8
61
1
/
8
181
/
1
8
193
/
1
8
205
/
1
8
19
19
19
19
19
19
19
19
19
19
19
19
23
5
/
8
23
5
/
8
23
5
/
8
3
/
8
1
/
2
