Addressable Module Mounting Installation
FCPS-24FS PN 51883:B 12/04/02 17
2.3 Addressable Module Mounting
The FCPS-24FS has been designed to allow the mounting of an addressable control,
relay or monitor module on the main circuit board inside the power supply cabinet with
the module status LED visible through the closed door. This allows power to be fed
from the FCPS-24FS Auxiliary Power output directly to the module, if needed, without
running the power wires outside the cabinet. As an example, Figure 2.5 illustrates
wiring from the Auxiliary power output terminals to a CMF-300 control module’s
terminals 3 (-) and 4 (+).
Note that the optional module mounting kit (P/N 90286) is required to install an
addressable module on the power supply main circuit board. The kit includes four
female/female and four male/female standoffs as well as four mounting screws.
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
TB1
J2
TRANSFORMER 2 TRANSFORMER 1
J1
F1
JP4
30V
15A
SW1
SW1
TB4
TB4
JP3
JP3
J3
TB5
TB2
JP1
JP2
JP2
+ -
EARTH N EUT HOT
OUT4
- NAC4 +
OUT3
- NAC3 +
OUT2
- NAC2 +
OUT1
- NAC1 +
AUX -
AUX -
IN2-
IN2-
IN2+
IN2+
OUT1-
OUT1-
OUT1+
OUT1+
IN1-
IN1-
IN1+
IN1+
SYNC IN -
SYNC IN -
SYNC IN +
SYNC IN +
AUX +
AUX +
NO NC
AUX TBL
COM
BATTERY
AC BATT
GND
FLT
NAC
TRBL
AC/
CHGR
CAUTION
HIGH VOLTAGE
CAUTION
HIGH VOLTAGE
NAC 4 CLA SS A
A- A+
NAC 3 CLA SS A
A- A+
NAC 2 CLA SS A
A- A+
NAC 1 CLA SS A
A- A+
8
9
8
8
9
9
10
11
12
13
14
150
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
0
1
2
3
4
7
6
5
TENS
ONES
ADDRESS
LOOP

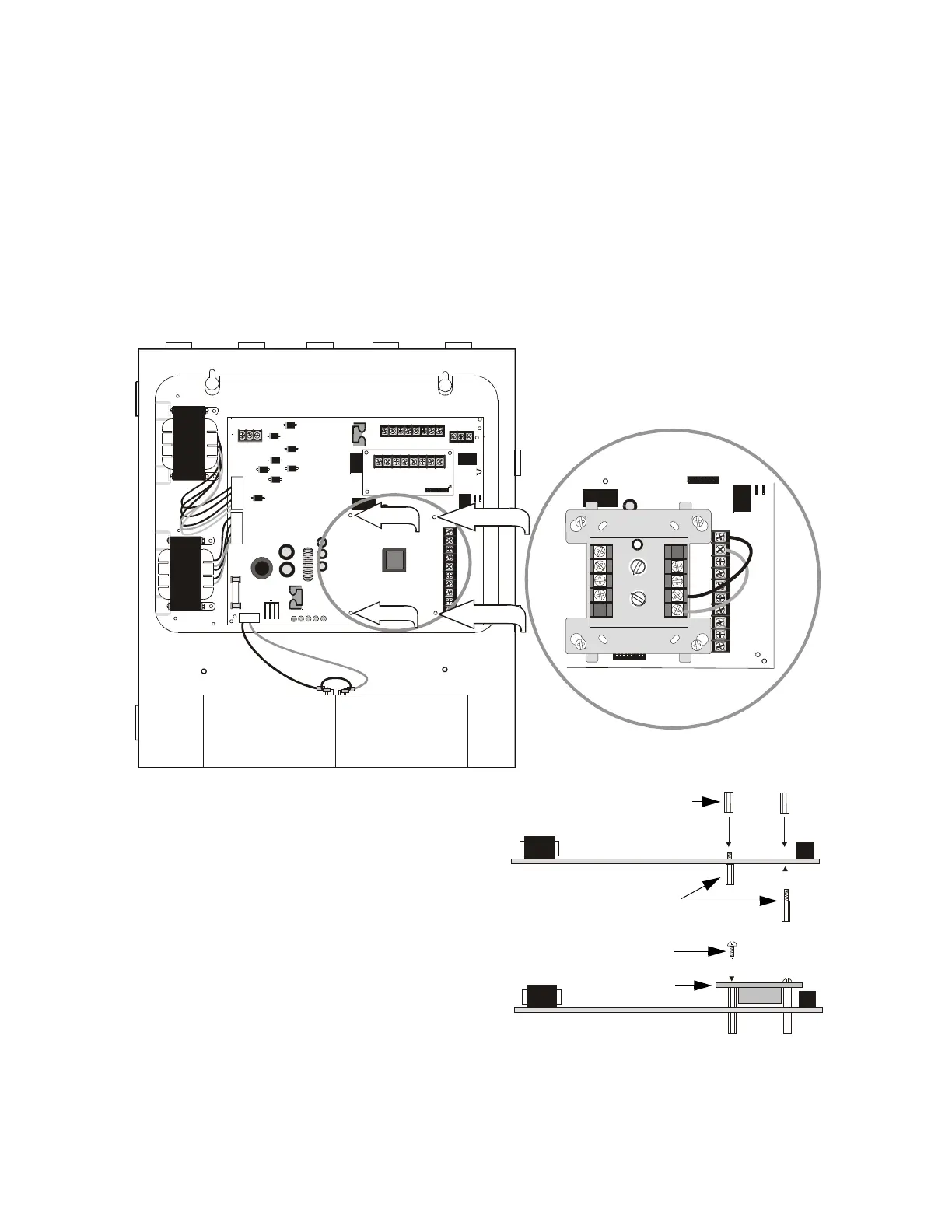

Figure 2.5 Mounting Module In FCPS-24FS Cabinet
standoff
standoff
standoff
standoff
24fsmodl.cdr
Module Installation
1. Remove FCPS-24FS main circuit board from
mounting plate by removing four corner screws.
2. Install four male/female standoffs through bottom
of board in holes indicated in illustration above.
3. Screw four female/female standoffs to male ends of
standoffs installed in Step 2 to secure in place.
4. Place addressable module over standoffs installed
in Step 3 and secure with supplied screws.
5. Reinstall main circuit board on mounting plate and
wire module as show in illustration above.
female/female standoffs
female/female standoffs
addressable module
mounting screw
