Fire-Lite FCPS-24FS8 - Split Temporal Mode of Operation

Applications Split Temporal Mode of Operation
30 FCPS-24FS PN 51883:B 12/04/02
5.3 Split Temporal Mode of Operation
In this application, the power supply has been set as a master with two synchronized
and two nonsynchronized outputs as determined by the Split Temporal mode feature.
Control Input #1 (TB4, Terminals 3 & 4) is connected to an addressable control module
which will cause the synchronized power supply output circuits 1 & 2 to turn on.
Control Input #2 (TB4, Terminals 7 & 8) is connected to an FACP Notification
Appliance Circuit which is used to activate the power supply’s temporal output circuits
3 & 4.
TB4
JP3
J3
TB5
TB2
JP1
JP2
OUT4
-NAC4+
OUT4
-NAC4+
OUT4
-NAC4+
OUT3
-NAC3+
OUT 2
-NAC2+
OUT1
-NAC1+
AUX -
IN2-
IN2+
OUT1-
OUT1+
IN1-
IN1+
SYNC IN - SYNC IN +
AUX +
NO NC
AUX TBL
COM
1 2 3 4 5 6 7 8 9 10
8
7
6
5
4
3
2
1
8
7
8
7
TB2
TB2
3
2
1
8
9
8
8
9
9
10
11
12
13
14
150
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
0
1
2
3
4
7
6
5
TENS
ONE S
ADDRESS
LOOP
+
+
+
+
+
+
+
+
+
-
-
-
-
-
-
-
-
-

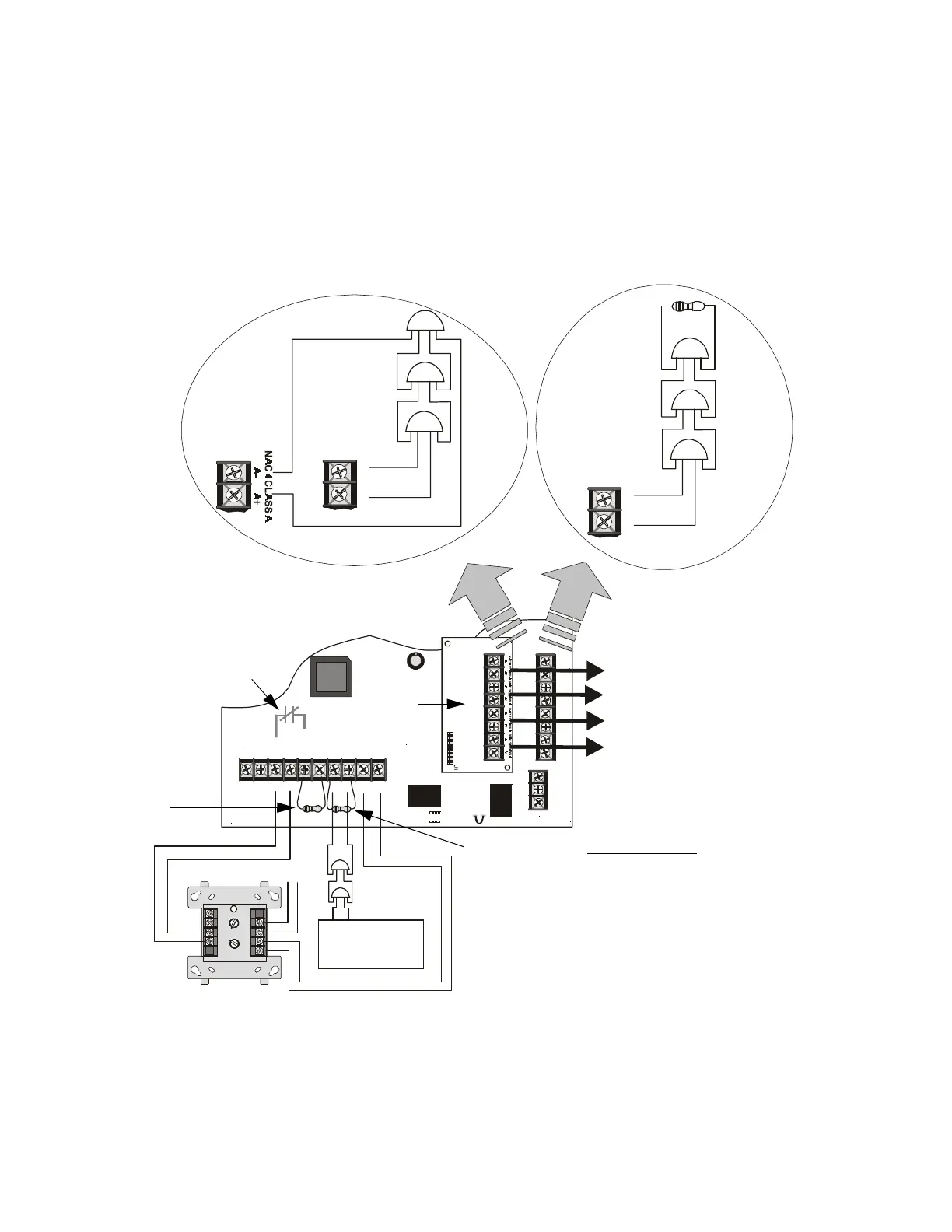

Figure 5.3 Split Temporal Mode Application
Style Z (Class A)
Style Y (Class B)
Temporal Bell Circuit 4
Temporal Bell Circuit 3
Horn/Strobe Circuit 2
Horn/Strobe Circuit 1
Use listed ELR
(4.7KΩ) to
terminate Style Y
(Class B) NAC
ELR not required for
Style Z (Class A) NAC
Note: All NACs are supervised and power-limited
ZNAC-4
Option Module
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF)
3 = OFF (master)
4 = OFF (no AC Fail reporting delay)
5 = ON
6 = OFF
7 = OFF (charger enabled)
8 = OFF (circuit 4 NAC)
Internal Trouble Contact
Split Temporal
FACP
NAC
(steady,
no sync)
Control Module
End-of-Line Resistor
supplied with Control
Module
FACP NAC
End-of-Line
Resistor
FCPS-24FS
Bells
Bells
SLC
24fsapp5.cdr
