Fire-Lite FCPS-24FS8 - Remote Supply with Resettable and Nonresettable Power

Applications Remote Supply With Resettable and Nonresettable Power
32 FCPS-24FS PN 51883:B 12/04/02
5.4 Remote Supply With Resettable and Nonresettable Power
The FCPS-24FS can be used as a remote stand-alone power supply to provide power to
any devices that require filtered, resettable or nonresettable power. The FCPS-24FS6
can provide up to 4 amps of continuous current and the FCPS-24FS8 can provide up to
6 amps of continuous current. The power supply must be set for Split Alarm mode.
Output circuits 1 & 2 are configured as resettable power outputs by connecting the
resettable power from an FACP to Control Input 1 Terminals 3(+) & 4(-) on TB4 of the
FCPS-24FS. Output circuits 3 & 4 are configured as nonresettable power outputs by
connecting jumpers between the auxiliary 24 VDC output on TB4 to the Control Input
2 terminals on TB4 [Terminals 9(+) to 7(+) and 1(-) to 8(-)].
Note: All four outputs can be configured as resettable or all four can be configured as
nonresettable by setting the power supply for General Alarm and then connecting a
resettable power source to Control Input 1 or a nonresettable power source, such as the
Aux. Power output of the FCPS-24FS, to Control Input 1.
For addressable panel applications, an addressable monitor module can be used to
monitor the trouble contact of the FCPS-24FS and the resettable power connection
from the FACP using an End-of-Line power supervision relay. If the FCPS-24FS enters
a trouble condition, the Normally Closed trouble contact will open and if the resettable
power from the FACP is lost, the Normally Closed power supervision relay contact will
open.
TB4
JP3
J3
TB5
TB2
JP1
JP2
OUT4
-NAC4+
OUT3
-NAC3+
OUT2
-NAC2+
OUT1
-NAC1+
AUX -
IN2-
IN2+
OUT1-
OUT1+
IN1-
IN1+
SYNC IN - SYNC IN +
AUX +
NO NC
AUX TBL
COM
1 2 3 4 5 6 7 8 9 10
8
7
6
5
4
3
2
1
3
2
1
8
9
8
8
9
9
10
11
12
13
14
150
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
0
1
2
3
4
7
6
5
TEN S
ONE S
ADDRESSLOOP

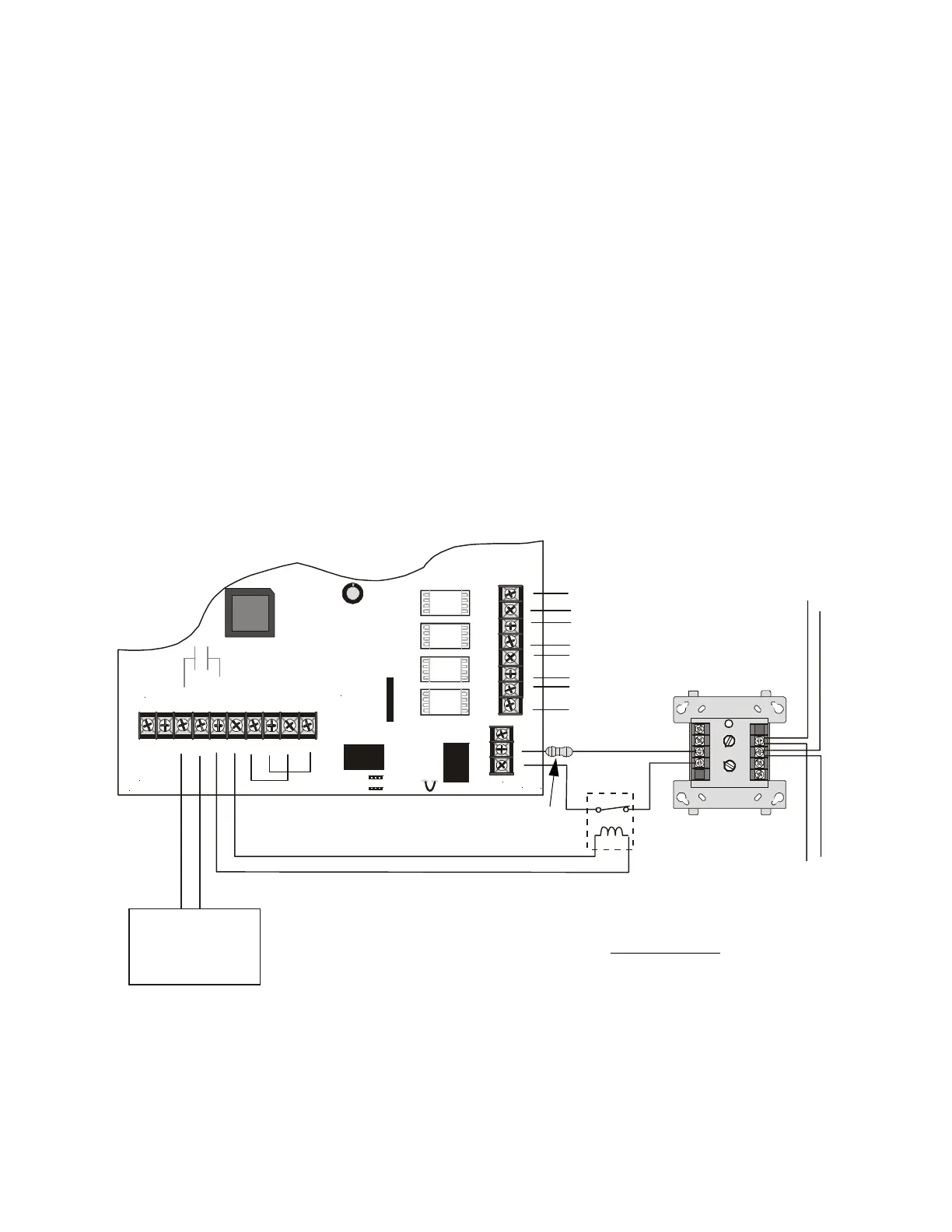

Figure 5.4 Remote Power Supply Application
Power Output 1
Resettable
Power Output 2
Resettable
Power Output 3
Nonresettable
Power Output 4
Nonresettable
SLC
SLC
Monitor Module
FACP
24 VDC
Resettable
Power
FCPS-24FS
EOL Power
Supervision Relay
A77-716B
(energized)
SW1 Switch Settings
1 = OFF
2 = OFF
3 = OFF (master)
4 = OFF (no AC Fail reporting delay)
5 = OFF
6 = ON
7 = OFF (charger enabled)
8 = OFF (circuit 4 NAC)
Split Alarm
No Sync
End-of-Line Resistor supplied
with Monitor Module
24fsapp4.cdr
