LCD-80F Annunciator Components & Wiring
10
Document 51338 Rev. B 08/24/05 P/N 51338:B
LCD-80F
MS-9200UD

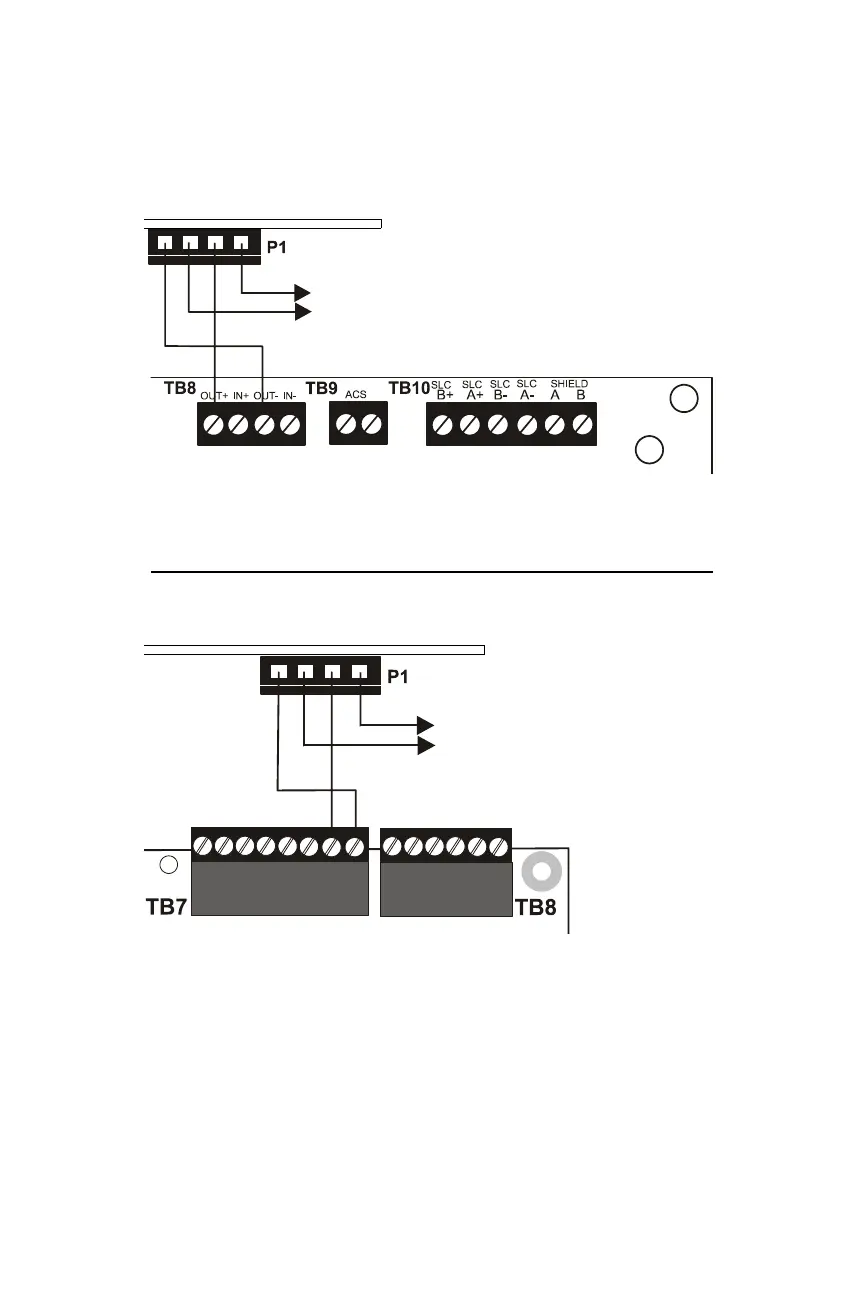

Figure 1-3: FACP EIA-485 Wiring to LCD-80F
+ EIA-485 Out to Next Device
- EIA-485 Out to Next Device
(or back to FACP)
EIA-485
+ -
- - + +
+ EIA-485 Out to Next Device
- EIA-485 Out to Next Device
(or back to FACP)
- - + +
+ -
EIA-485
MS-9600
LCD-80F
+ -
IN OUT
