Mounting Annunciator Preparation
20
Document 51338 Rev. B 08/24/05 P/N 51338:B
Ack/S tep
Silence Reset
Drill
Hold 2 sec.
FIRE ALARM ANNUNCIATOR
A
lm. SilencedSupervi soryTroubleAlarmAC Power

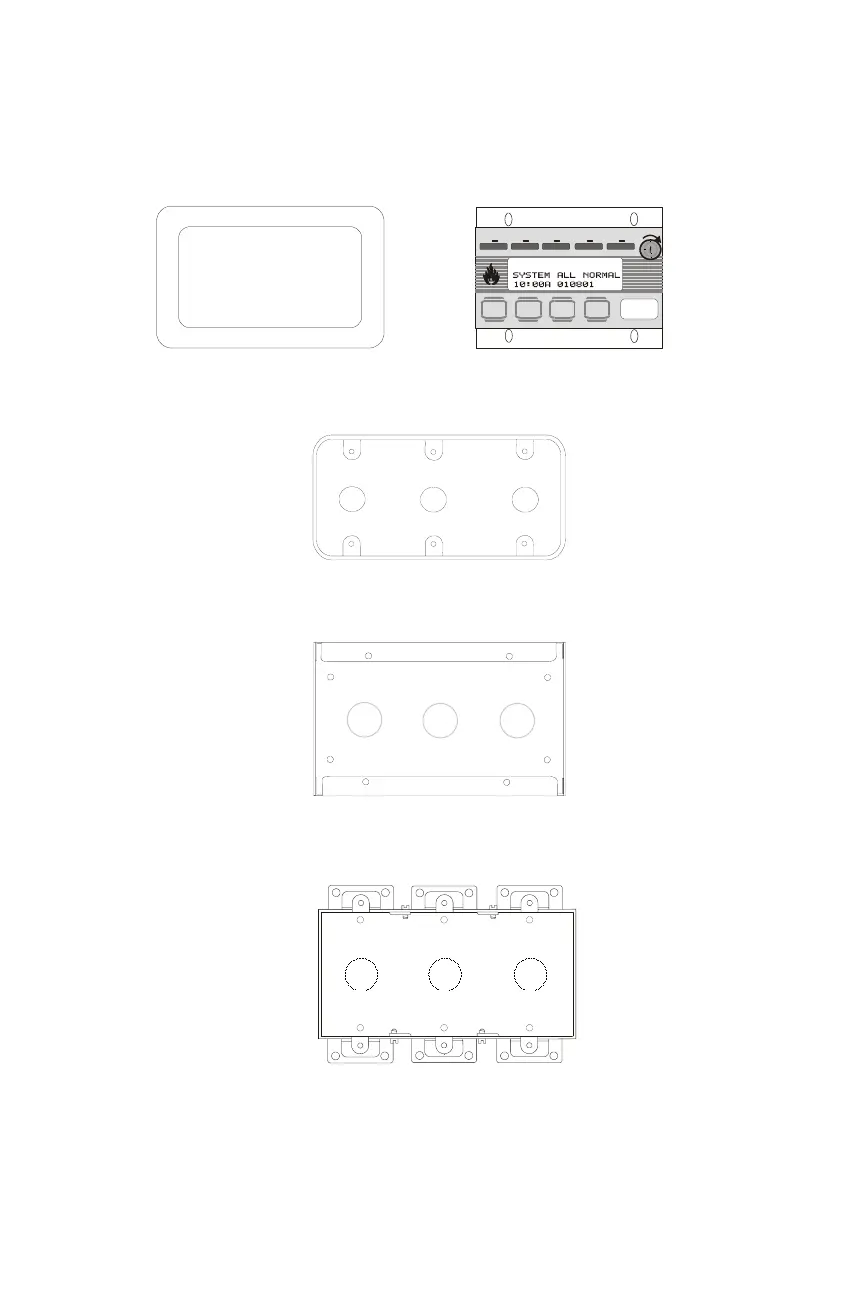

Figure 3-2: Hardware and Backboxes
LCD-80F flange
LCD-80F Trim Ring
(replacement P/N 23165)
3-Gang Electrical Box P/N 10103
(semi-flush mount)
3-Gang Electrical Box P/N SBB-3
(surface mount)
LCD80flg.cdr
LCD2X20tr.cdr
10103box.cdr
Sbb-3.cdr
Three Ganged Electrical Boxes
3gngbox.cdr
