Fire-Lite MS-9600UDLS User Manual

MS-9600LS Series Manual — P/N 52646:B8 11/20/2015 161
NFPA Standard-Specific Requirements
The following figure illustrates an example of Central Station/Remote Station Reporting using a
411UD. The relay contacts from the FACP may be used to trip any dialer UL listed for Central
Station/Remote Station Reporting Services.

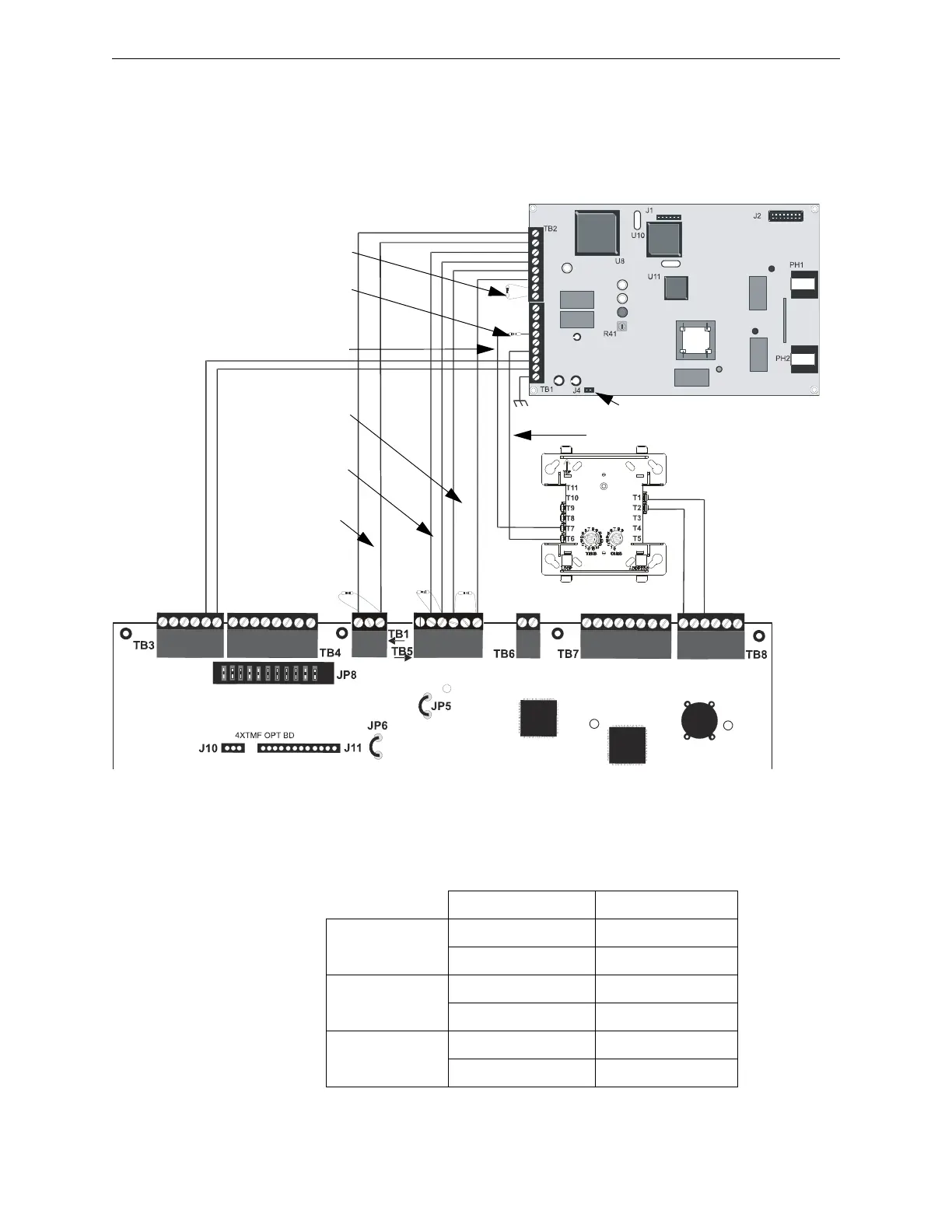

Figure C.2 FACP Connection to 411UD
Note: The Monitor Module input, which is being used to monitor
the 411UD Relay #2 Output (programmed for DACT Trouble),
must be programmed as ‘Trouble’ at FACP.
Channel1
Channel 2
Channel 3
Channel 4 (2.2K ELR)
Relay Output (DACT Trouble)
Monitor Module ELR resistor
FACP
Supervisory Relay
FACP
Alarm Relay
(2.2K ELRs
P/N 27070)
J4 Not Installed
411UD
Monitor Module Circuit Input
SLC Loop
+ -
FACP
9600411u.wmf
24 VDC
nonresettable
power
1 2 3 4 5 6
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1 2 3
Monitor Module*
FACP
Trouble Relay
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual appendix, which
contains wiring conversion
charts for type V and type
H modules.
411UD FACP
Alarm TB2-1 TB1-1
TB2-2 TB1-3
Trouble TB2-3 TB5-2
TB2-4 TB5-3
Supervisory TB2-5 TB5-4
TB2-6 TB5-6
Table C.2 411-UD Connections to FACP

Fire-Lite MS-9600UDLS Specifications

General

Type	Addressable Fire Alarm Control Panel
Dimensions	14.5" H x 14" W x 3.5" D
Operating Temperature	32°F to 120°F (0°C to 49°C)
Compatibility	Compatible with Fire-Lite addressable devices
Operating Voltage	24VDC
Power Supply	120 VAC, 60 Hz
Output Current	3A
Power	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
Humidity	10% to 93% (non-condensing)
NAC Circuits	4 Class A or Class B
Alarm Current	3A
Battery Charging Current	1A
Relative Humidity	10% to 93% (non-condensing)
Number of Zones	198
