172 MS-9600LS Series Manual — P/N 52646:B8 11/20/2015
Appendix G: Canadian Applications
The MS-9600LSC is supplied with the DP-9692 Dress Panel. The ANN-LED must be ordered
separately.
When installing and programming the FACP, the Canadian Option must be set to ON prior to
any other panel programming (refer to “Canadian Option” on page 100 of the Programming
Section of this manual).
ACS Series annunciators are not compatible for Canadian applications.
The LCD-80FC annunciator can be used for optional ancillary annunciation.
The ANN-LED annunciator must be installed in the same room as the FACP. All wiring
between the FACP and ANN-LED must be in metal conduit no longer than 20 feet.
The installer must write in the Date of Final Assembly on the Master Marking and Warranty
Label located on the FACP backbox door.
To comply with CAN/ULC - S559-04, the DACT-UD2 and 4XTMF must both be utilized.
FIRE SYSTEM
ACTIVE
SYSTEM
CONTROL
ALL
CALL
1
2
3
4
5
6
7
8
9
10
11
12
13
18
19
20
21
22
23
24
16
17
14
15
LIT
FI
®
AL
by Honeywell

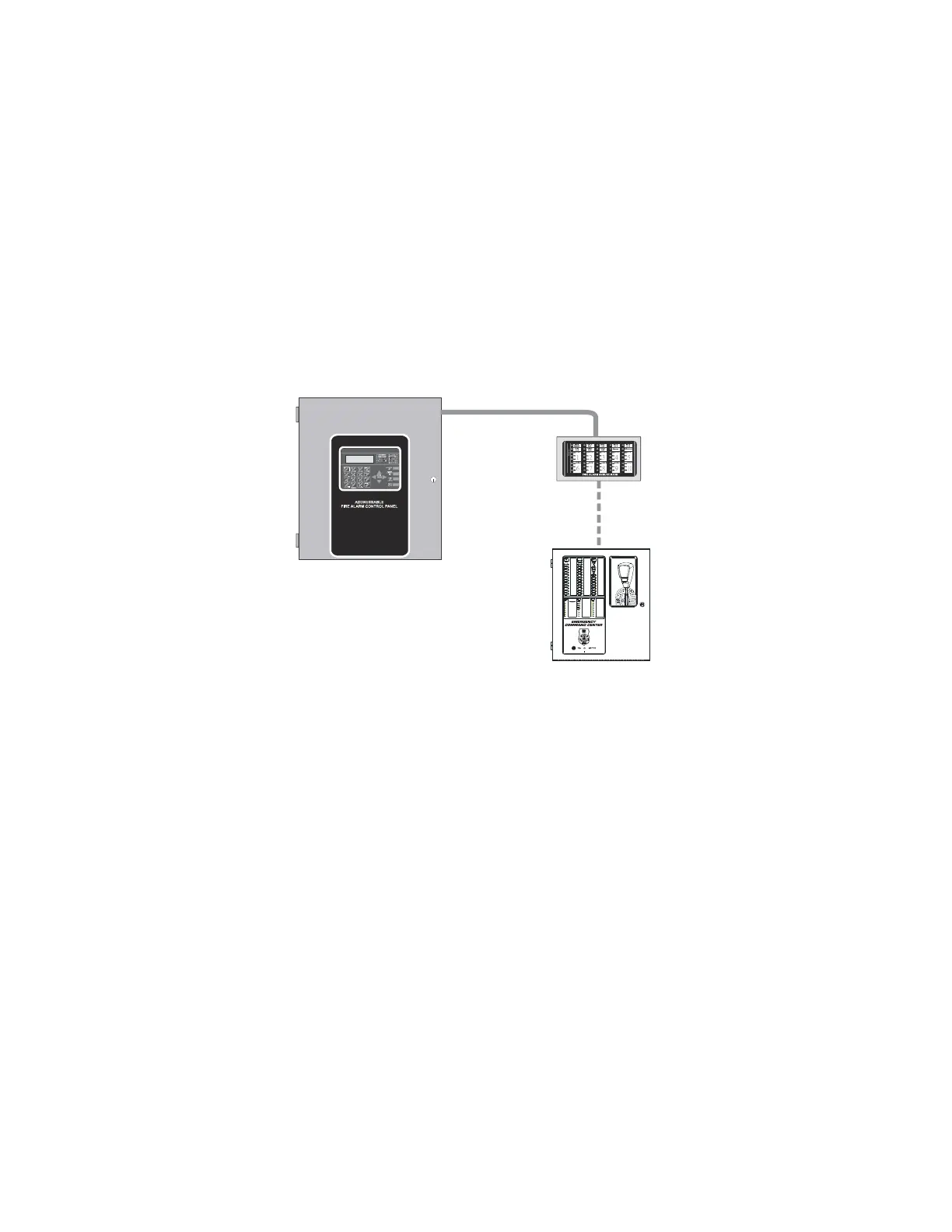

Figure G.1 FACP Minimum Configuration - Single ANN-LED Annunciator
FACP
ANN-LED Annunciator
metal conduit
(max. 20 ft.)
ANN-LED annunciator must
be in same room as FACP
Optional ECC-50/100
Audio System
ms-9600lstoann_led.wmf
