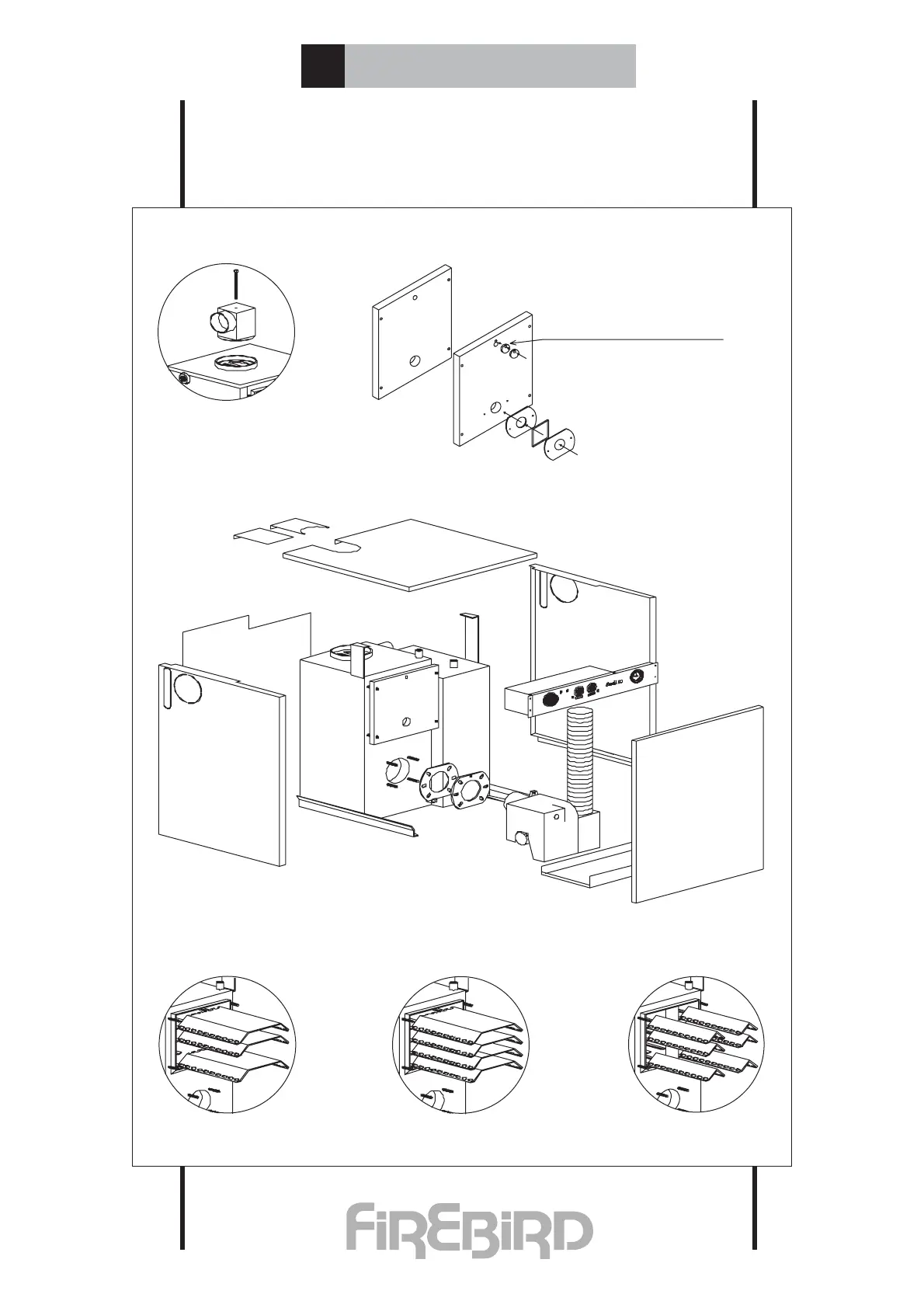

10-D Combi Parts Illustration
10
SPARE PARTS-BOILER
Baffle Setup For
Combi 50/70
Baffle Setup For
Combi 70/90
Baffle Setup For
Combi 90/120
Flue Gas Analysis Point
View Glass Assembley
For Low Level
Balanced Flue Only
23
23a
23b
27b
27a
19
18
25L
27
29
20
25R
32a
32b
32
31
30b
28
30
26
30a
20a
21a
21b
20
21
22a
22
24b
24
24
