FireBird P90 User Manual

Firebird Condensing Boiler
4
25

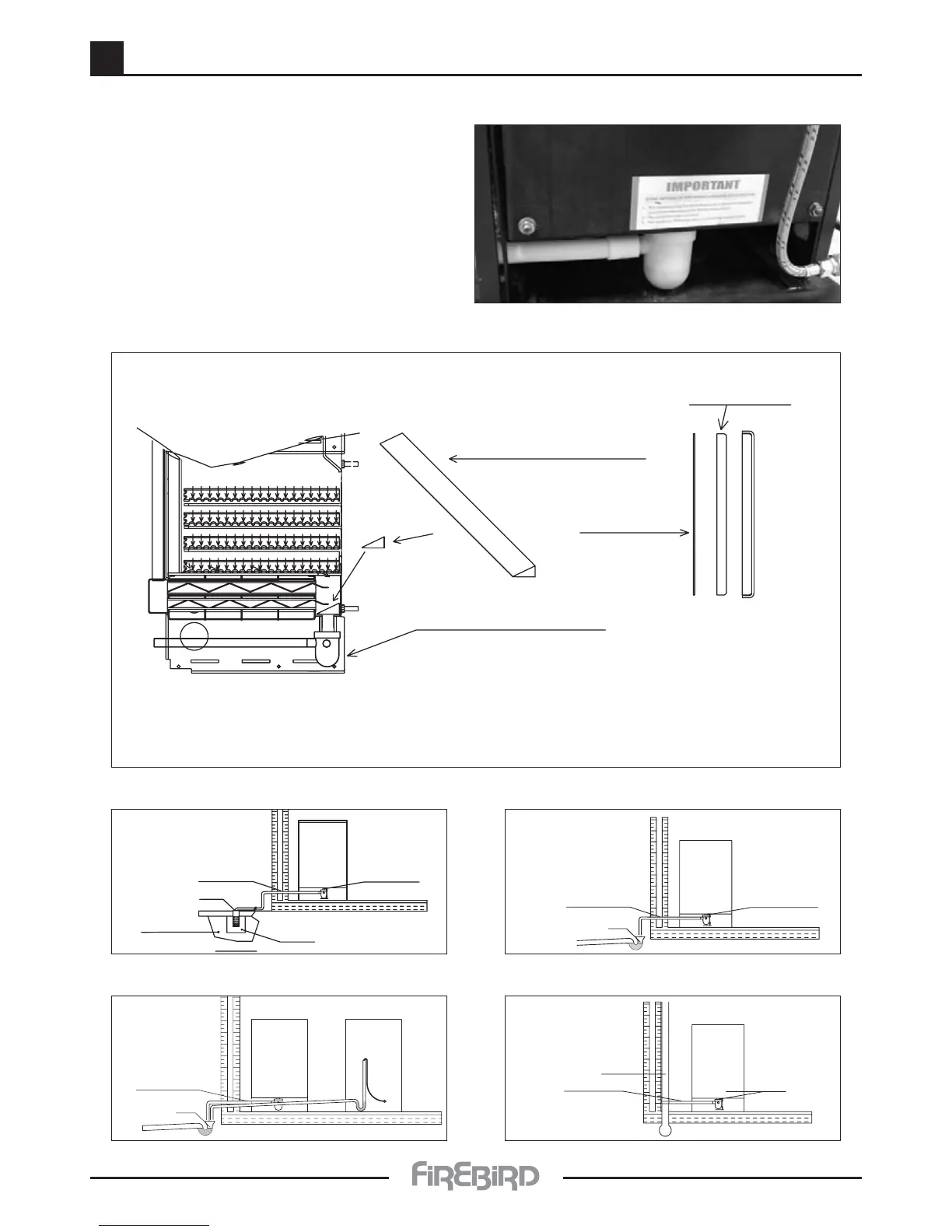

4.6 - CONDENSATE DISPOSAL
Before switching on your Firebird condensing oil boiler check that:
(1) The float & condensate drain baffle are in place. (2) That the condensate trap is primed.
(3) The condensate discharge pipe is a corrosion resistant pipe.
Condensate Baffle and Condense Trap
Condensate Drain Baffle
Door Sealing
Membrane
Condensate Drain Float
Door Gasket
Door
The condensate trap is located
at the base of the boiler
Boiler
Sealed
Condensate Drain
Discharge Pipe
3”
Lime Stone
Chippings
Free Draining Soil
Soak Away.
figure 1.
Boiler
Gully
Condensate Drain
Washing
Machine.
Trap.
Waste Pipe.
figure 2.
Discharge Pipe must
have a minimum diameter
of 1”, and it must be
supported with a 2.5˚
(1:40) fall from boiler.
Discharge Pipe
Gully
Boiler
Condensate Drain
3”
figure 3.
Boiler
Stack
Condensate Drain
Discharge Pipe
3”
Discharge Pipe must
have a minimum
diameter of 1” and it
must be supported with
a 2.5˚ (1:40) fall from
boiler.
figure 4.
IMPORTANT
Always prime condensate trap
and install condensate neutralizer
Fig. 1
