Electrical Connections Continued
Connect the Display to the Control Module terminals labeled “Display OUT”.
NOTE
IF THE HARNESS MUST BE DISASSEMBLED TO FEED THROUGH A HOLE IN A SURFACE, DISCONNECT
THE GREEN CONNECTOR ONLY. RECONNECT THE HARNESS AS FOLLOWS.
Connect Notification Devices to the Control Module terminals labeled “ALM RELAY” for
notification when the system in an alarm state.
Connect Notification Devices to the Control Module terminals labeled “FLT RELAY” for notification
when the system in a fault state.
“AUX. COMM.” connections are not used in this application.
Connect the Heat/Smoke Detectors and other input devices to the Control Module terminals
labeled “ZONE # +” and “ZONE # –“.

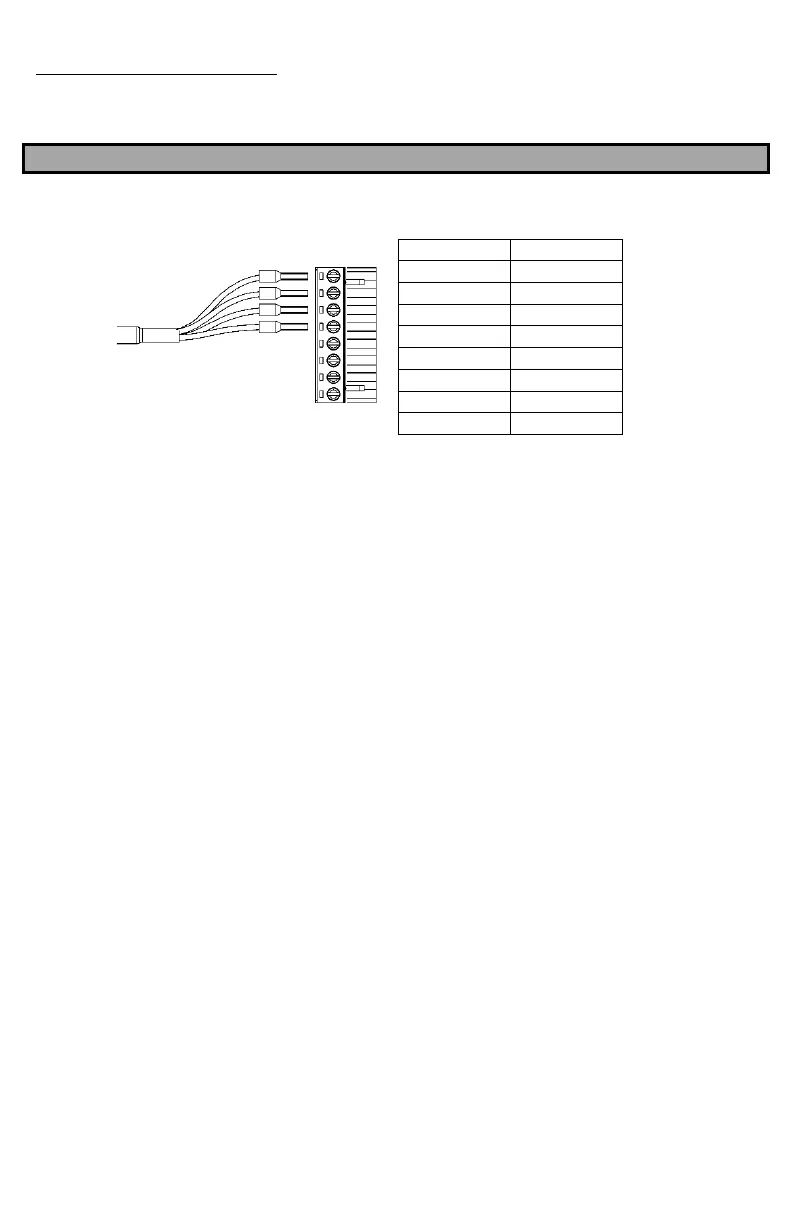

Terminal
Wire Color
1
Red
2
Black
3
Green
4
White
5
N/A
6
N/A
7
N/A
8
N/A
