69
- comply with Teflon profile orientation (detail c)
- part 4 with the levers mounted upwards (detail b)

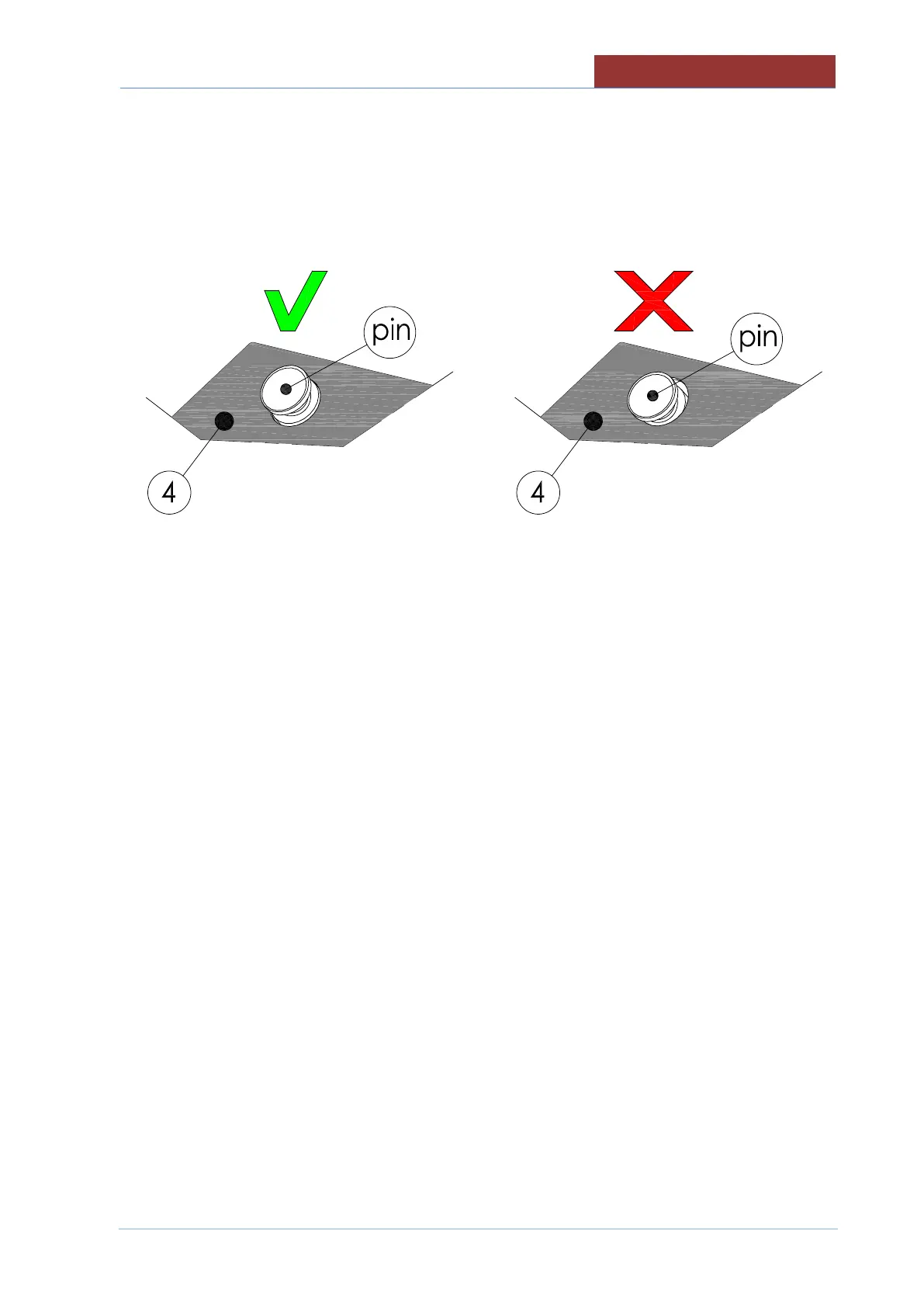

- part 4 must be centered with the pin.It must not stop in the throat of the pin!
- when the details 3 and 5 are mounted, the levers of the detail 4 must snap upwards (detail a)
- Refit the Teflon ring, the mixer and the locking ring nut.
- Return the pan to a horizontal position.
