24.4 ASSEMBLY AND DISASSEMBLY VERTICAL SCRAPER FROM THE MIXER

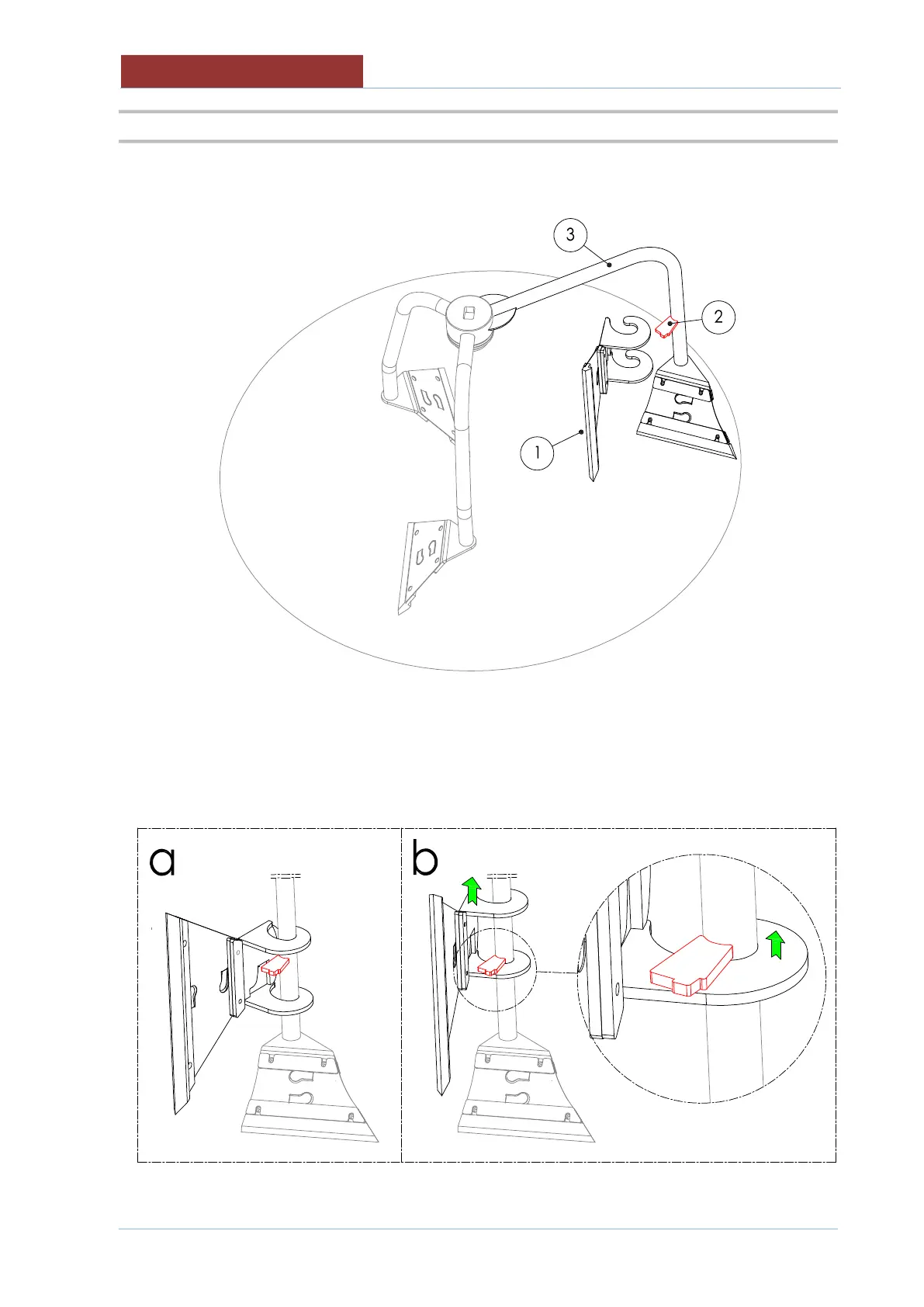

The vertical scraper (1) must always be mounted in the external mixer arm (3), where the locking bracket
(2) is present.
To assembly the vertical scraper at the mixer, follow the instructions below:
a) Enter the vertical scraper in the external arm.
b) Lift the vertical scraper up to the stop with the locking bracket.
