MP-3435 / MP-3432 System manual v ersion 0.3
35

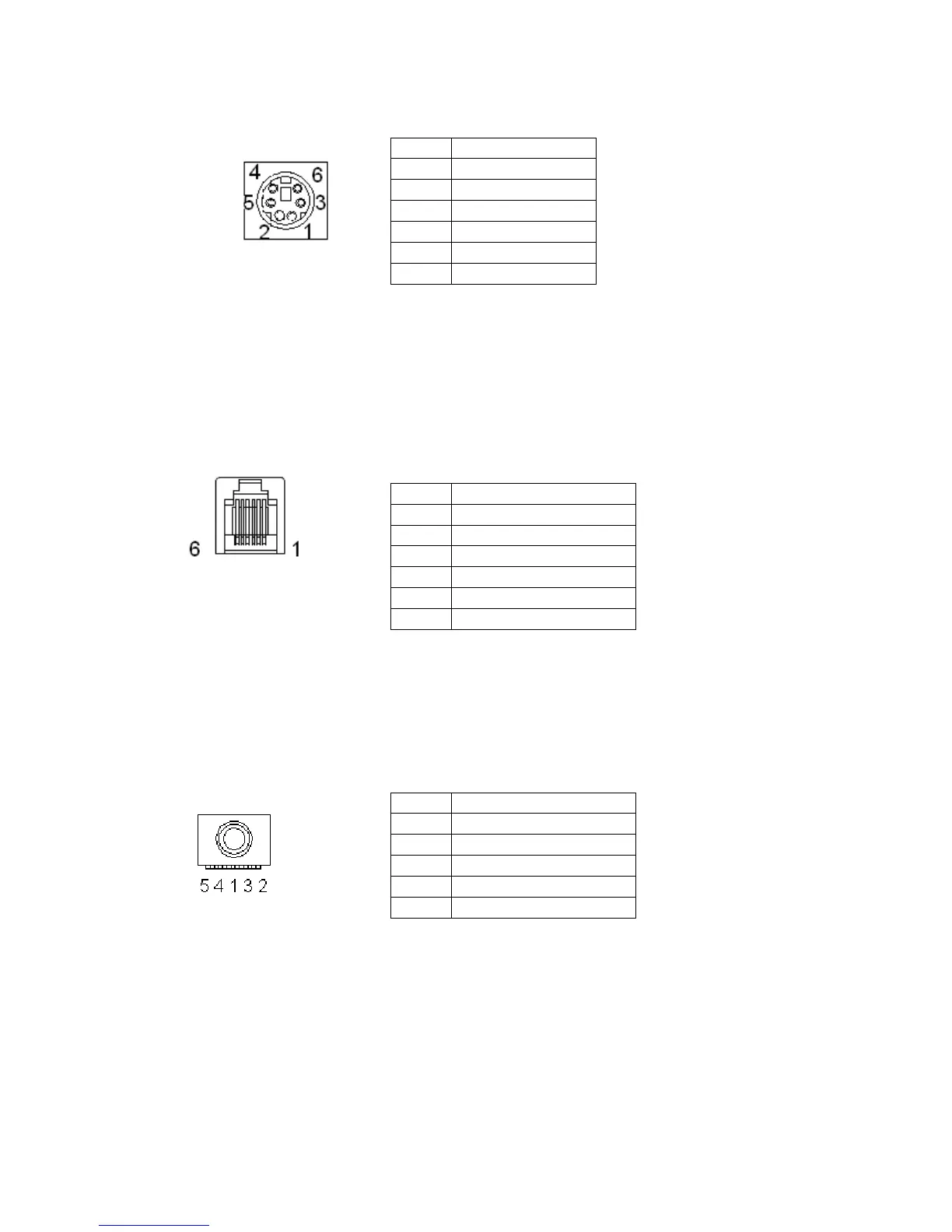

I. KB_MS1 (PS/2 Connector)
J. RJ11 Port
K. AUDIO_JACK (Audio Line Out)
Pin Definition
1 Keyboard Data
2 Mouse Data
3 GND
4 Mouse Clock
5 5V
6 Keyboard Clock
RJ11
Pin Definition
1 GND
2 GPIO-0
3 CASH Drawer Switch
4 12V
5 GPIO-1
6 GND
Audio Jack
Pin Definition
1 GND
2 Line Out (L)
3 AUDIO_JD
4 -ACZ_DET
5 Line Out (R)
