MP-3435 / MP-3432 System manual v ersion 0.3
36

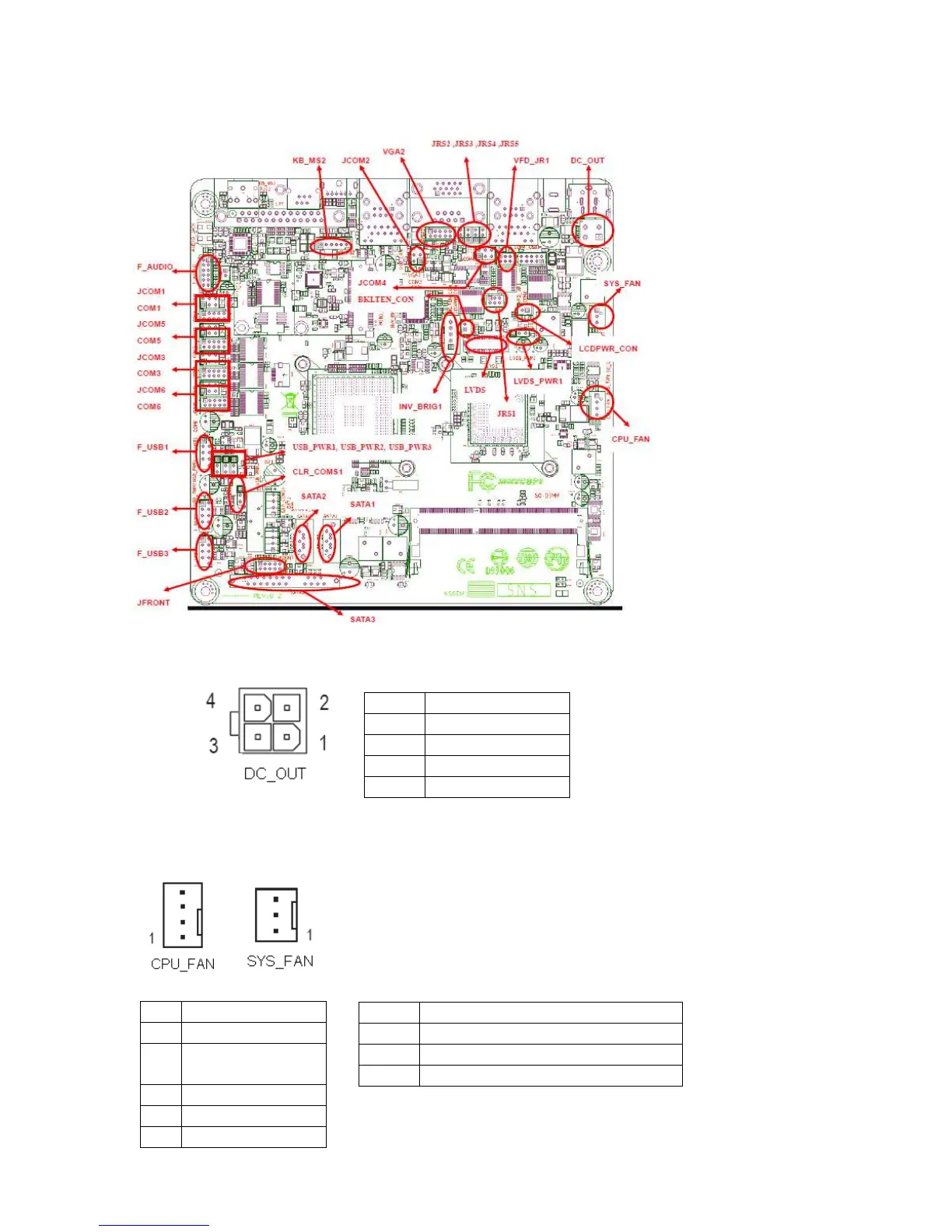

Jumper Setting
1. DC_OUT (12V for external/internal use, This connector is reserved for future use)
2. CPU_FAN (CPU FAN)
3. SYS_FAN (System FAN)
CPU_FAN:
Pin
Definition
1
GND
2 +12V/RPM
control
3 RPM detect
4 RPM control
SYS_FAN:
Pin Definition
1 GND
2 +12V/RPM control
3 RPM detect
DC 12V OUT:
Pin Definition
1 GND
2 GND
3 12V
4 12V
