RANGE
INSTRUCTION SHEET #2586INS
PART #1730739
HEIGHT ADJUSTABLE TABLE
ASSEMBLY INSTRUCTIONS CONTINUED

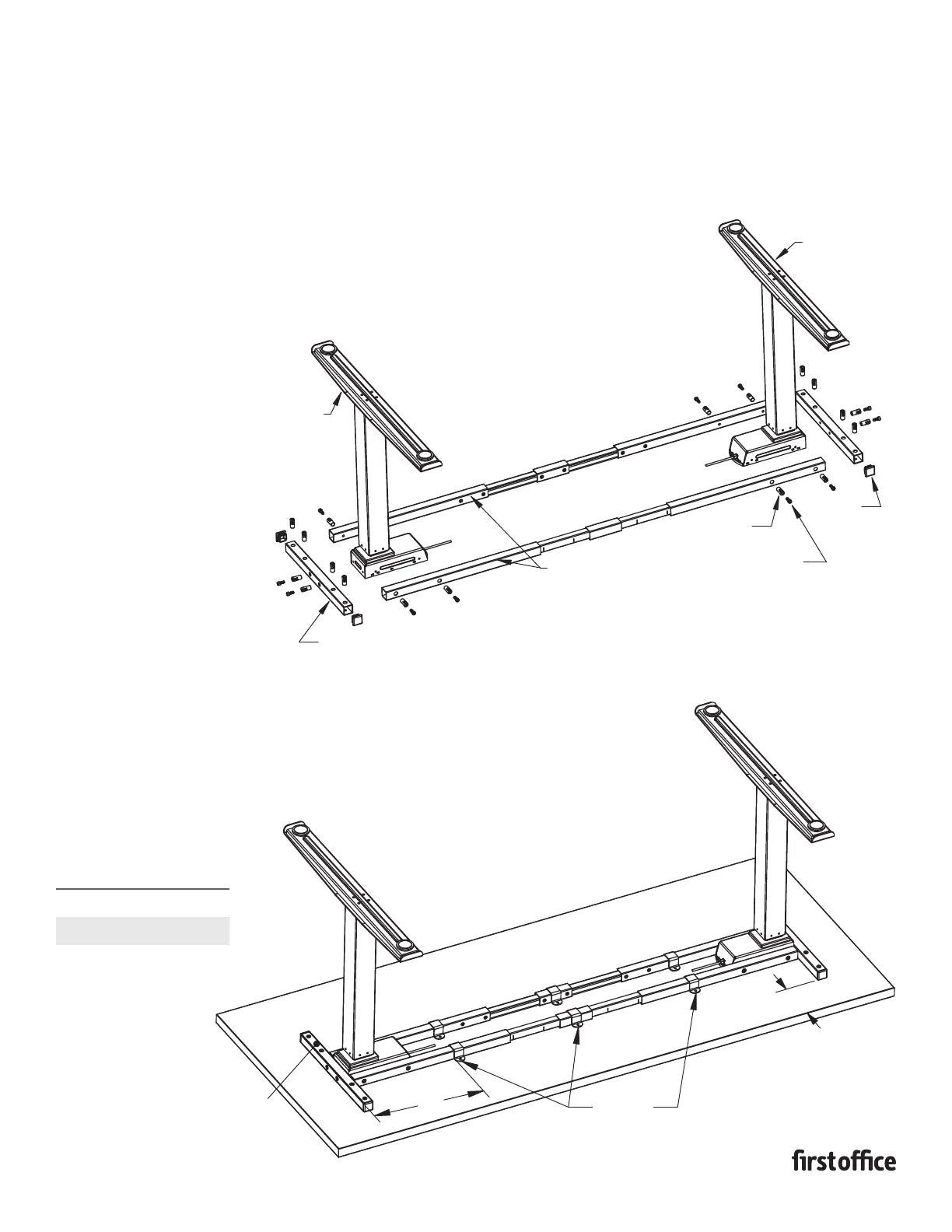

6. Insert screw guides into end & cross tubes.
7. Attach cross tube assemblies & end tubes to leg
assembly motor housings as shown using (2)
M6X15 cap screws per tube.
8. Insert end caps into each end of both end tubes.
RH LEG
ASSEMBLY
SCREW
GUIDE
END
CAP
M6X15 HEX SOCKET
HEAD CAP SCREW
LH LEG
ASSEMBLY
END TUBE
CROSS TUBE
ASSEMBLY
9. Position top upside down on a protective surface.
10. Locate frame centered on top, side to side, and o the back edge
according to dimension “x” in the chart.
11. Attach frame to top with (4) wood screws in each end tube.
12. Locate 1 u-clamp on each cross bar approximately 14" from end of
frame and attach with (2) wood screws per clamp.
13. For 60", 66", and 72" tops, place 1 u-clamp centered on each short
mounting tube and attach with (2) wood crews per clamp.
END TUBE
U-CLAMP
14"
X
TOP DEPTH X
24" 2.125"
30" 5.125"
