HEIGHT ADJUSTABLE BENCH KIT
ASSEMBLY INSTRUCTIONS
RANGE

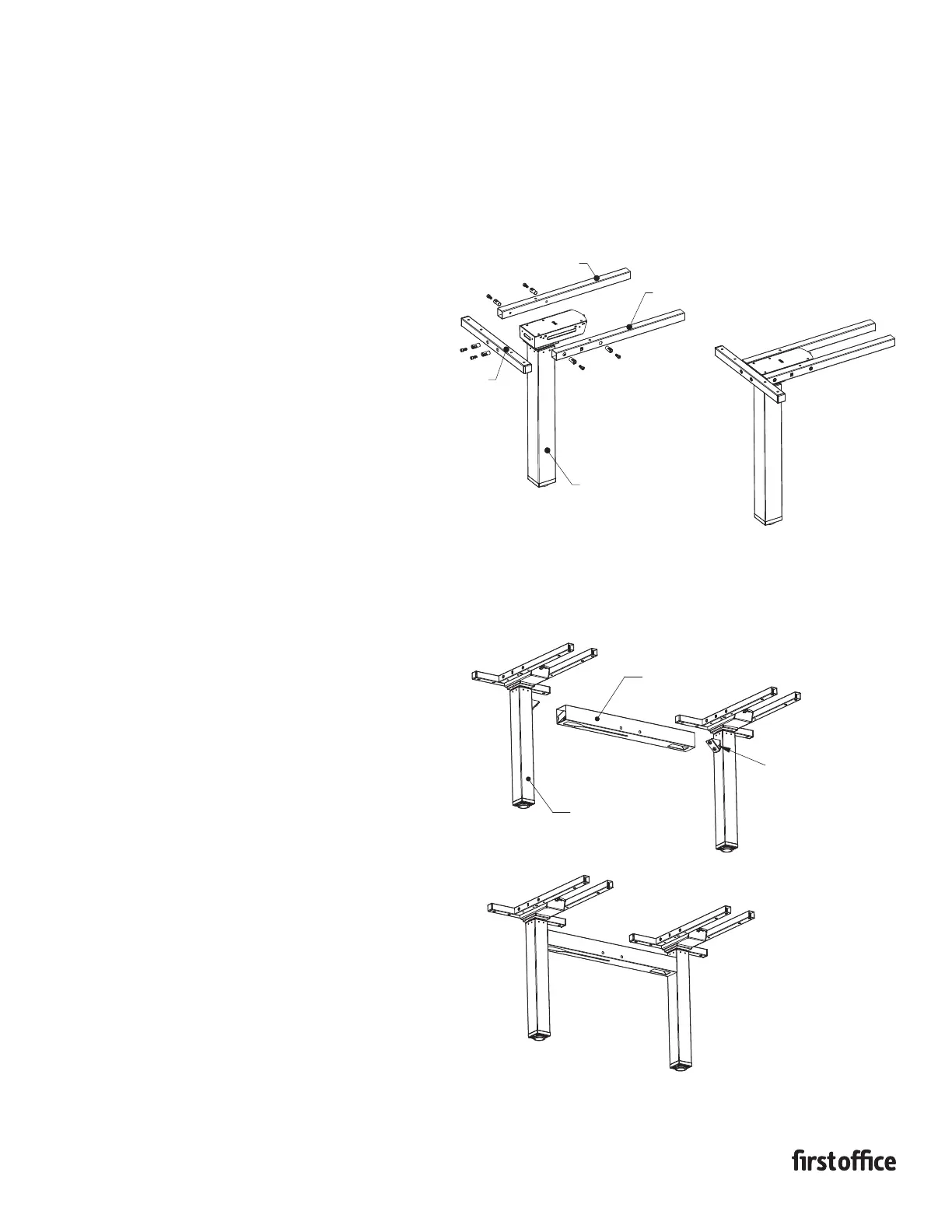

1. Attach cross tubes A & B and the strut tube to the leg
column by inserting the plastic screw guides into the
mounting holes and securing with (2) m6x15 machine
screws per tube.
2. Repeat step 1 to complete 4 leg assemblies.
INSTRUCTION SHEET #2576INS
PART #1730533
1
3. With 2 leg assemblies and 1 cross bar
assemble one half of the bench.
Note: make sure the inserts of the cross
bar face toward the kneespace.
4. Slide cross bar over mounting tab on leg
assembly and attach using supplied bolts.
2 Bolts per leg.
Note: make sure cross bar is seated
square and flush with leg assembly. And
bolts are tight. Loose connections will
aect the stability of the bench.
5. Repeat steps 3 & 4 to complete the other
half of the bench assembly.
CROSS TUBE A
CROSS TUBE B
LEG ASSEMBLY
STEPS 1-2
HEIGHT ADJUSTABLE
LEG COLUMN
STRUT TUBE
HALF BENCH ASSEMBLY
STEPS 3-5
LEG ASSEMBLY
MOUNTING
TAB
CROSS BAR
NOTE: INSERTS FACE
TO KNEE SPACE
