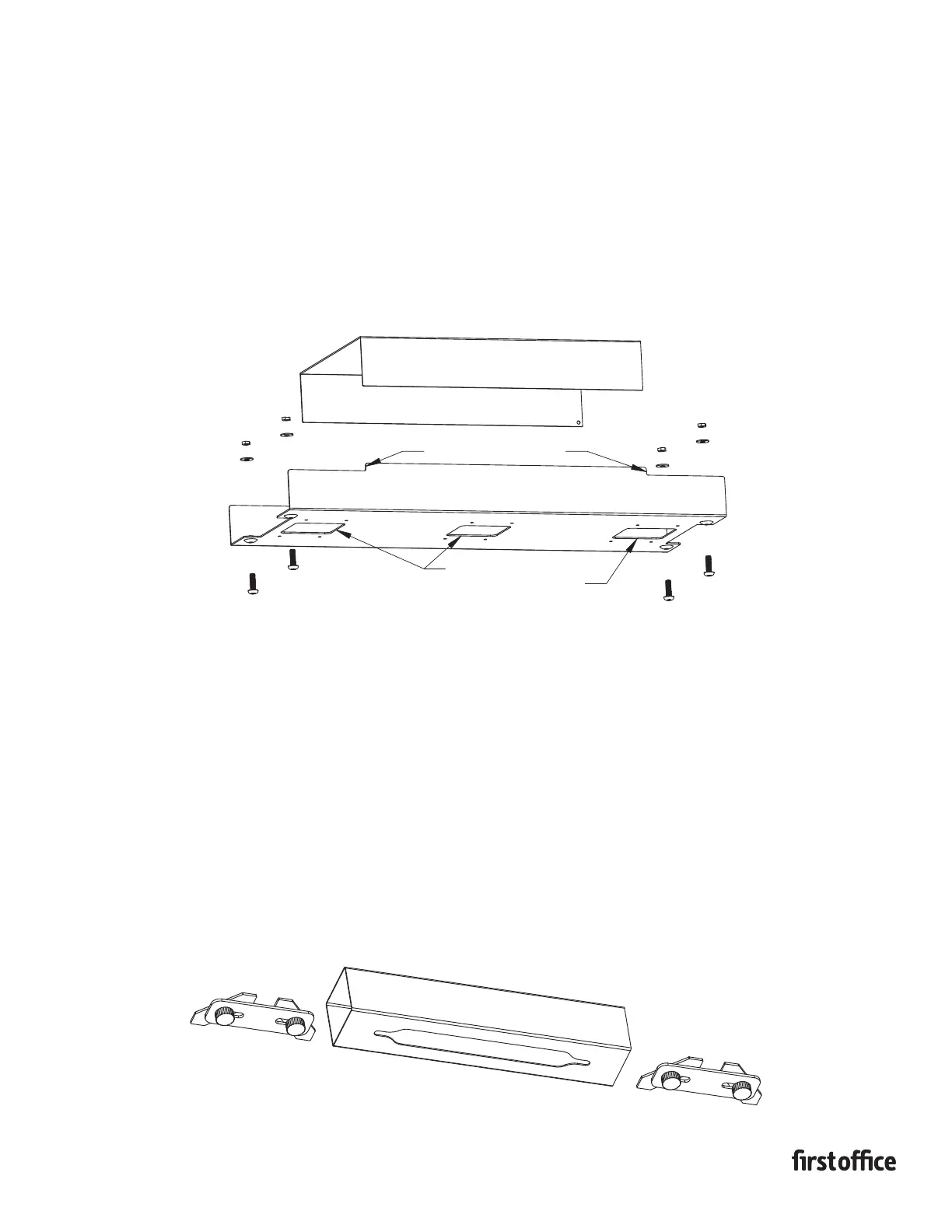

GANGING TRAY
ASSEMBLY INSTRUCTIONS
RANGE
1. Insert end of ganging tray into open end of cable carrier of bench until it stops
againts the built in spacing ledge.
2. Attach with (2) m4x20 bolts inserted from bottom side through mounting holes
and secured with washer and nut from top side. Note: do not over tighten bolts.
3. Slide next bench into position inserting the other end of the ganging tray into the
end of the cable carrier up to the spacing ledge and secure repeating step 2.
INSTRUCTION SHEET #2578INS
PART #1730535
GANGING RAIL
ASSEMBLY INSTRUCTIONS
RANGE
1. Insert one end of each thumb screw bracket into slot in bottom of rail and
turn thumb screw to tighten. Leave loose for adjustment until benches are
in final position.
2. Insert opposite end of one of the thumb screw brackets in the slot in the
bottom of the benching cross bar. Once rail is centered in and flush to
side of cross bar tighten the thumb screws to secure rail to bench.
3. Move the next bench in place tight up against the ganging rail, positioning
the rail centered and square to the benches cross bar and attach with the
tumb screw bracket.
REMOVABLE ACCESS PANEL
(LIFT OFF TO REMOVE)
3 CABLE ENTRY POLE
ATTACHING LOCATIONS
BUILT IN SPACING LEDGE
