24"D & 30"D WORKSURFACES

ASSEMBLY INSTRUCTIONS

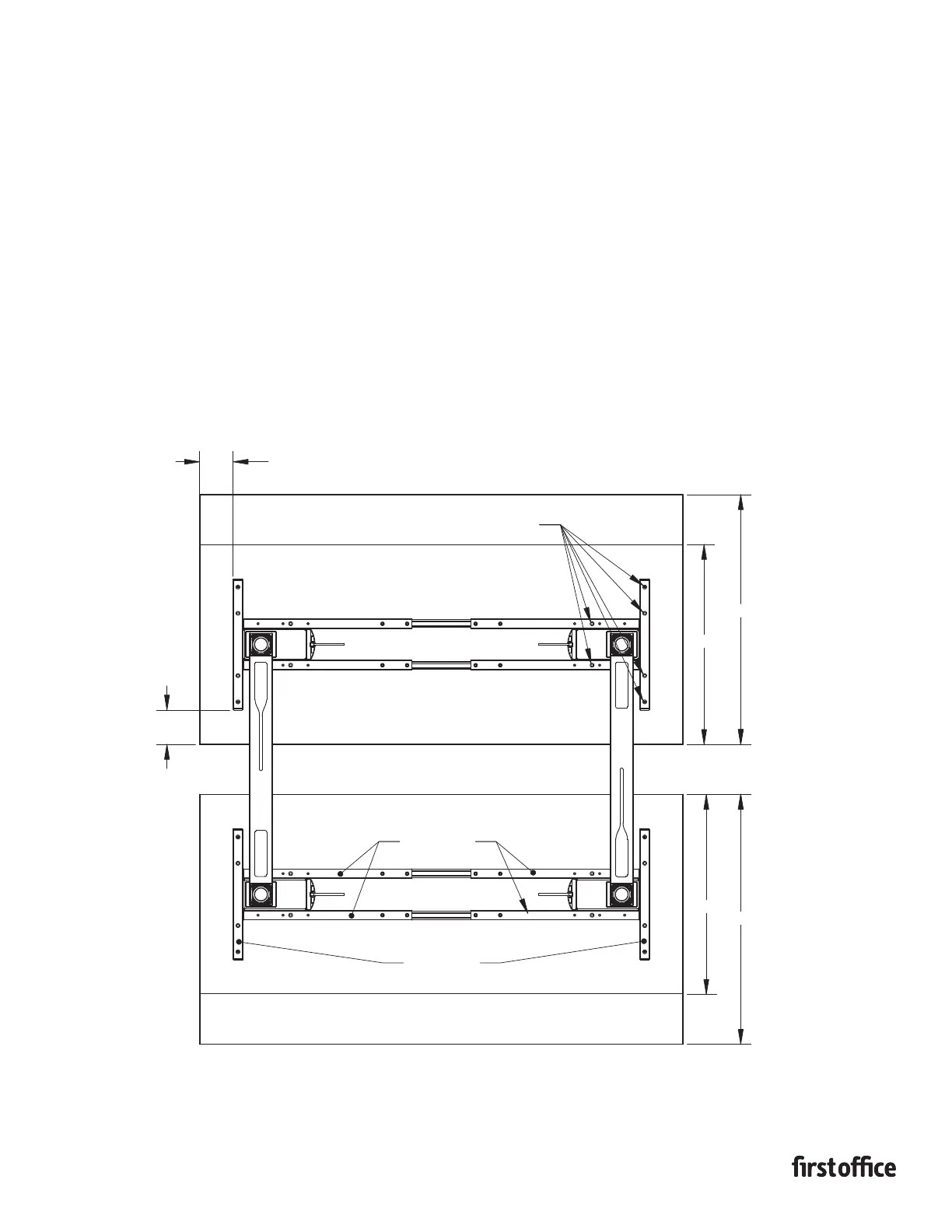

1. Place worksurface on assembled bench kit and align

pre-drilled holes in bottom of worksurface with mounting

holes in the strut tubes.

2. Verify offset distances to ensure proper location & alignment.

3. A

ttach using (12) #10x7/8” wood screws supplied with

bench kit.

(4) Screws in each strut tube and (1) screw in each cross tube.

4. Repeat above steps for remaining worksurfaces.

INSTRUCTION SHEET #2579INS

PART #1730536

MOUNTING HOLES

STRUT TUBES

24"

6" BETWEEN

WORKSURFACES

4.125" TYP

24"

30"

4" FOR HART AND HASRT MODEL #'S

2" FOR HARTS AND HASRTS MODEL #'S

30"

CROSS TUBES
