CABLE ENTRY POLE
ASSEMBLY INSTRUCTIONS
RANGE
1. Cable entry pole can be attached in 3 locations
on the ganging tray or on either end of the cable
carrier to best fit as needed.
2. Align holes in housing with the holes in one of the
pre-machined mounting location mentioned above
using (4) M4x10 self tapping machine screws.
3. Removable access panel allows easy access to run
cables. Remove by pulling outward. Install by pushing
panel inward inside the housing until it bottoms out
on the built in stops.
INSTRUCTION SHEET #2574INS
PART #1730531

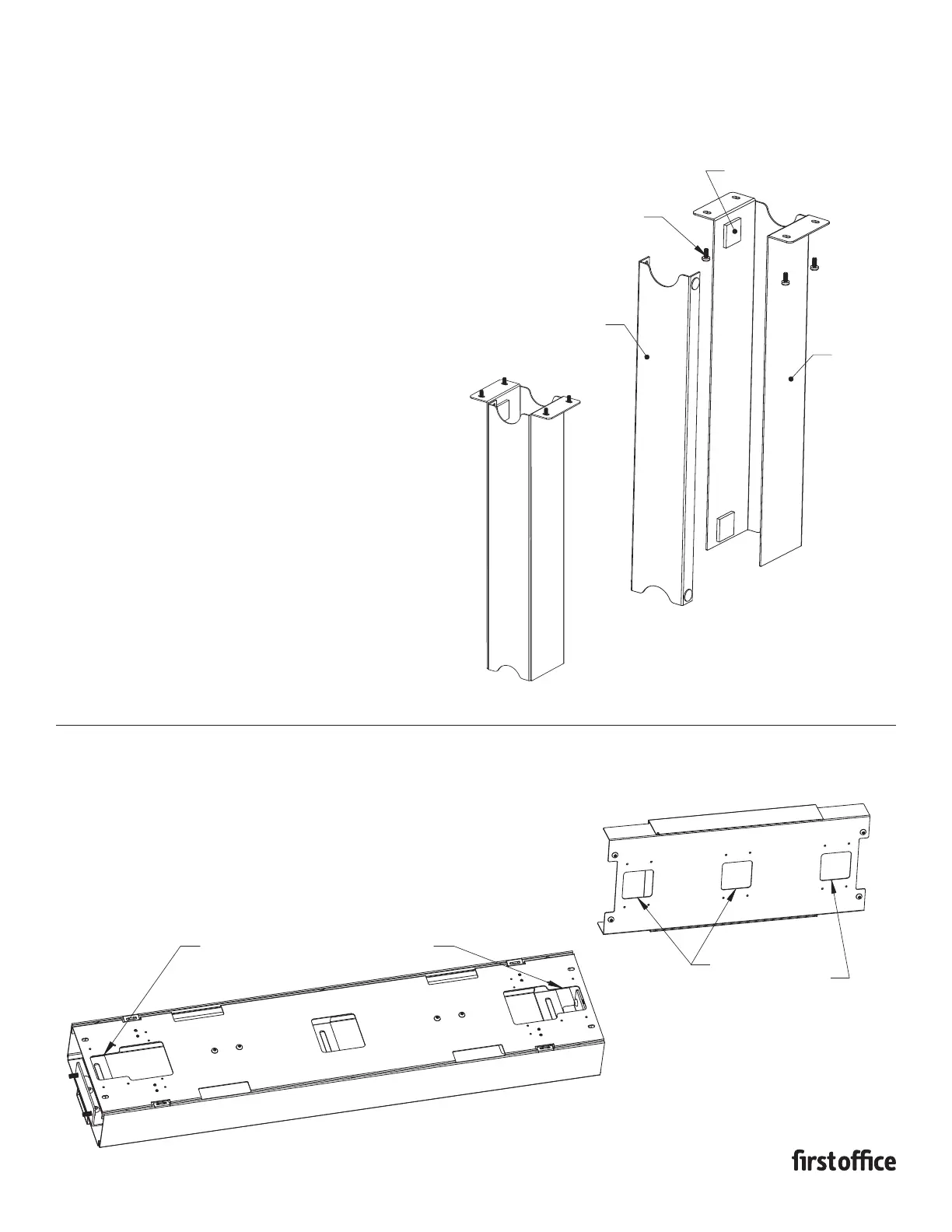

HOUSING
REMOVABLE ACCESS PANEL
BUILT IN STOP
(4) M4X10 SCREWS
2 CABLE ENTRY POLE MOUNTING LOCATIONS
CABLE CARRIER
3 CABLE ENTRY POLE
MOUNTING LOCATIONS
GANGING TRAY
