Wiring Descriptions
Connector 1 (CN1), 8-Pin (NOTE: Please see FT-LC1 for a low current version of CN1)
Pin 1 Red - Constant 12V positive (+) power input. (this input provides power to the CM processor, Ignition 1, and
accessory ports) This wire must be connected. The proper vehicle wire will test (+) 12V at all times, even
when the key is in the off position, on position, and during crank.
Pin 2 Green/White - Programmable Output: This positive (+) parking light wire triggers
when you lock, unlock, remote start, or during troubleshooting diagnostics. Note: This output is
programmable and can provide a 2nd starter or (+) trunk release output. This is achieved using
Jumpers located under the access door on top of the control module.
Pin 3 Red/White - Constant 12V positive (+) power input. This wire must be connected (this input provides
power for the accessory, starter, and parking light output). The proper vehicle wire will test (+) 12V at
all times - while the key is in the off position, the on position and during crank.
Pin 4 White - High Current Output: Accessory 12V positive (+) output (default). This wire must be
connected to the vehicle accessory / HVAC blower motor wire. The proper wire will test 0V with the key
in the off position, (+) 12V while key is in the on position, 0V while cranking and back to (+) 12V when
the key is returned to the on position.
Pin 5 Blue - Programmable Output: Positive 12V (+) output that powers up during remote start. This output
is programmable to provide a (+) 2nd ignition (default jumper setting), (+) 2
nd
Starter, or (+)
Accessory output using the jumpers located under the access door on top of the control module.
Pin 6 Yellow - Starter 12V positive (+)
output. This wire must be connected
for remote start. The proper wire
will test 0V with the key in the
off position, 0V while the key is
in the on position and (+) 12V

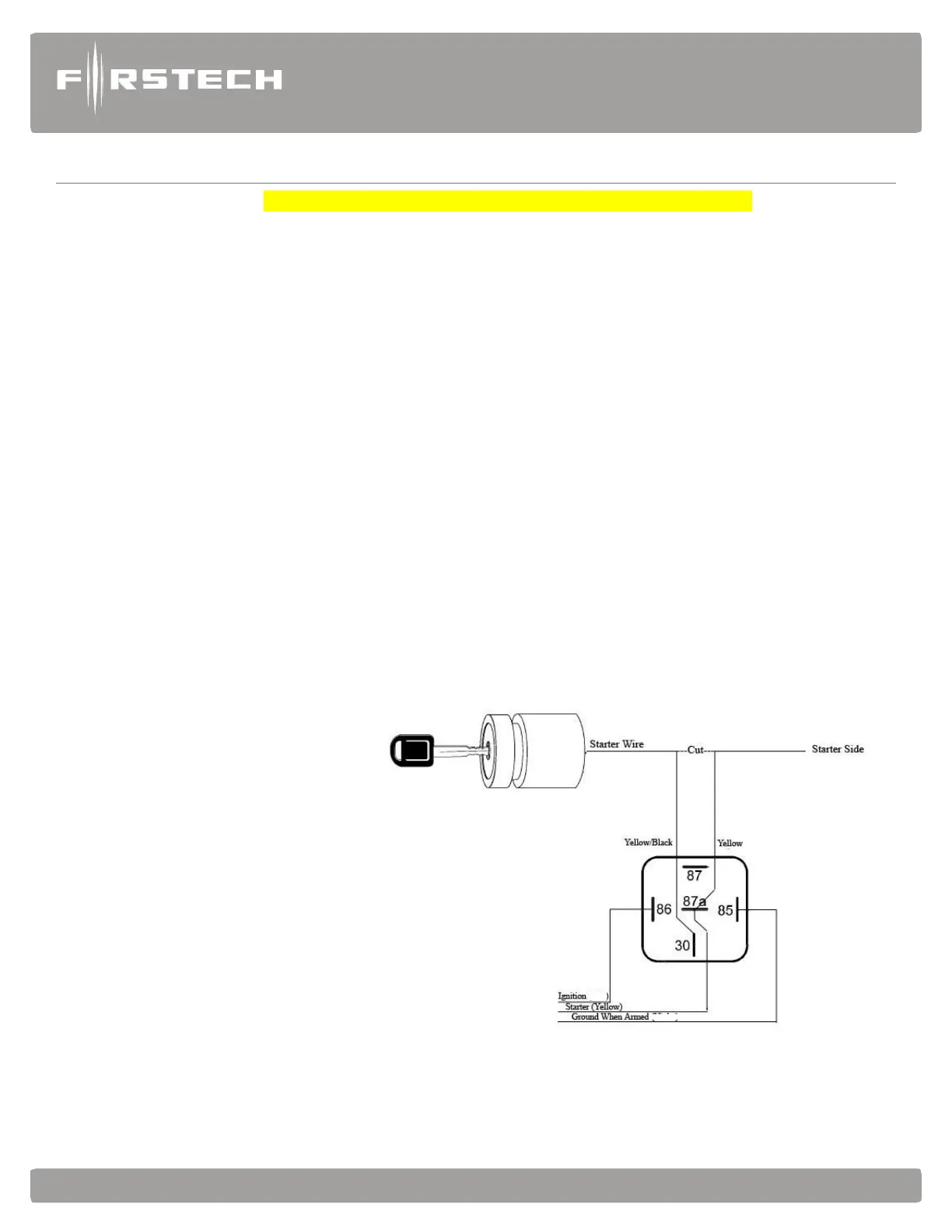

during crank. Note: You can use
the FT-ELOCK for starter kill
and anti-grind features. It can
be used to configure the starter
interrupt in various ways. We
provide a GWA (Ground When
Armed) output for standard
starter interrupt .
