Fischer Panda P6+ - Rear View of 12 V Control Panel

General operation
Seite/Page 8 - Kaptitel/Chapter 2: General operation 10.5.17
2.1 Rear view 12 V-version
Fischer Panda Art. No. 21.02.02.046P

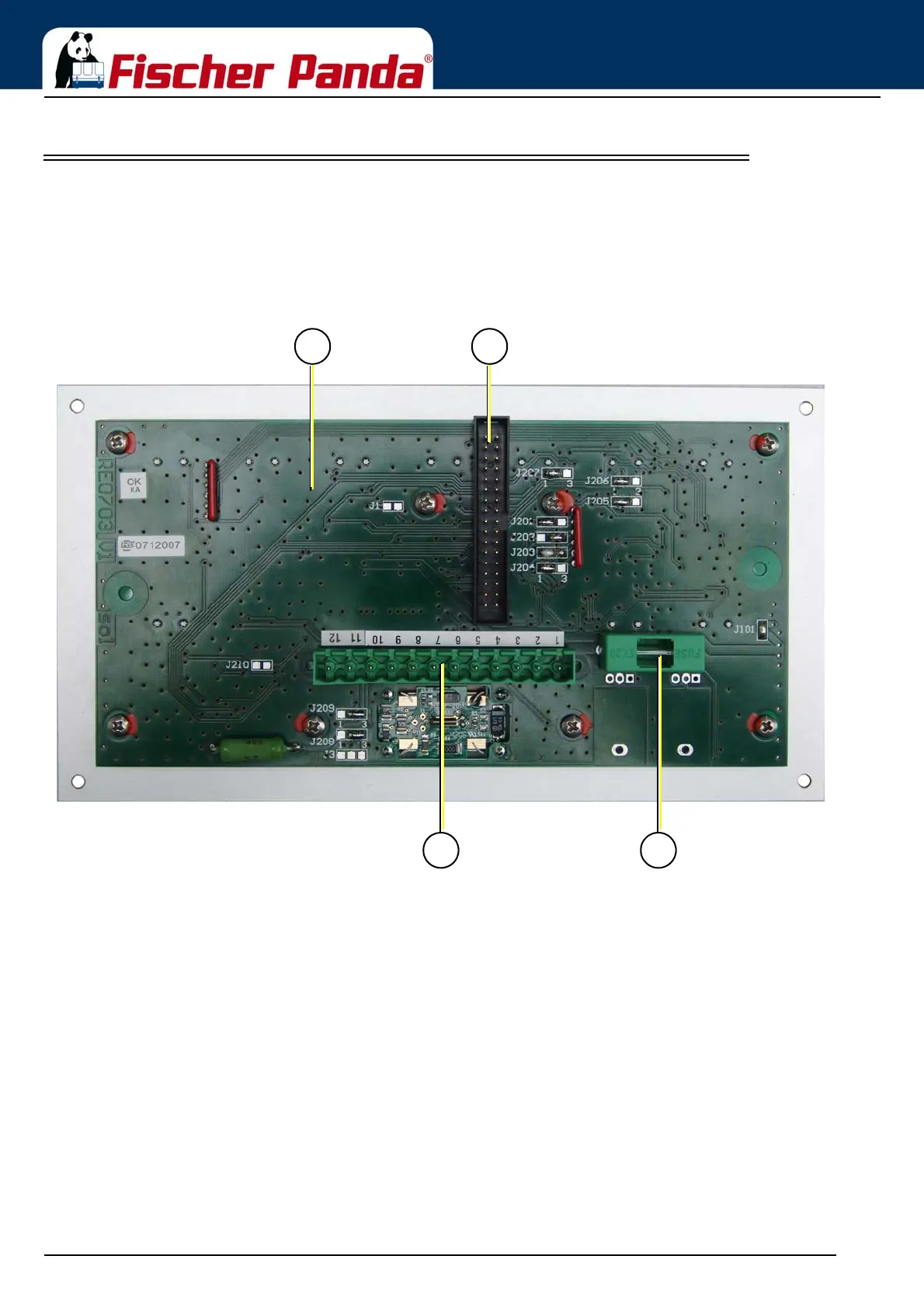

Fig. 2.1-1: Panel rear view 12 V-version
0201
03 04
01. Control board
02. Terminal block (master-slave adapter: left row; automatic adapter: right row)
03. Terminals 1-12 (see section 2.3.2, “Terminal connections,” on page 10)
04. Fuse 630 mA slow-blow
