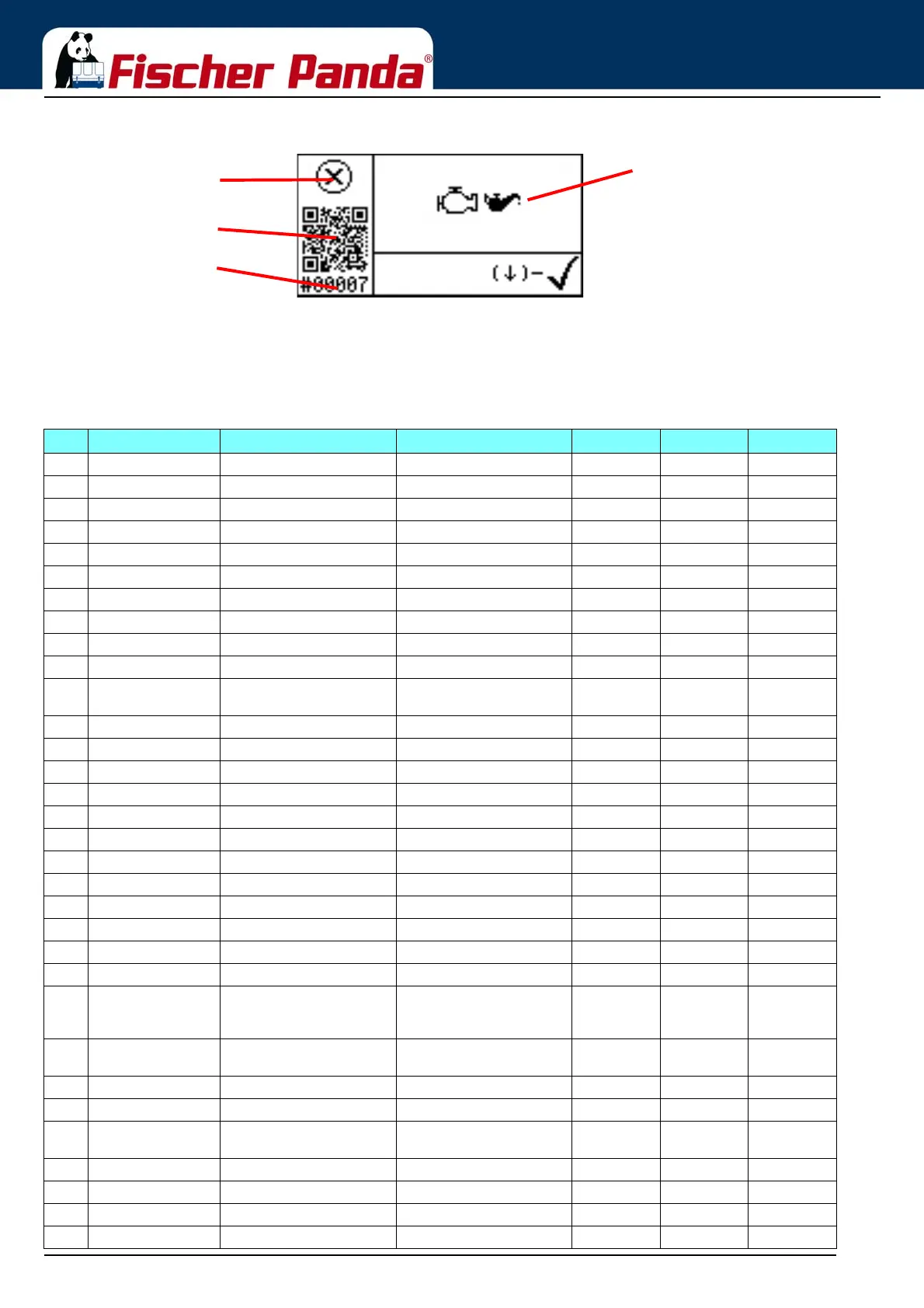

Fig. 2.6.2.0-1: Sub-menu: "Event Log"
2.6.2.1 Table of Faults
See also the "Faults" chapter in the manual of the generator.
Fig. 2.6-1: Table of faults
No. Description Cause Explanation Warning Gen.Stop Info
1 AC Voltage Voltage too low yes yes n.a.
2 AC Frequency Frequency too low yes yes n.a.
5 Emergency Emergency button pushed "Emergency" contact open n.a. yes n.a.
7 Oil pressure Oil pressure too low Failure oil pressure switch n.a. yes n.a.
13 Starter power Starter failure Short circuit starter defect yes n.a. n.a.
14 Glow circuit Glow circuit failure Short circuit defect yes n.a. n.a.
16 Fuel supply Failure fuel supply Short circuit defect yes n.a. n.a.
17 Stop solenoid - Hold Failure stop solenoid hold coil Short circuit yes n.a. n.a.
18 Stop solenoid - Pull Failure stop solenoid pull coil Short circuit yes n.a. n.a.
19 Optional DC out Failure optional DC out Short circuit yes n.a. n.a.
20 Current sensor No voltage on supply current
sensor
Short circuit defect yes
25 Battery voltage Battery voltage too low yes yes
26 RPM failure RPM out of range Failure fuel supply Fuel empty n.a. yes
29 Power out relay Failure power out relay Short circuit n.a. n.a.
30 AC Voltage L2 Voltage too low L2 yes yes
31 AC Frequency L2 Frequency too low L2 yes yes
34 AC Voltage L3 Voltage too low L3 yes yes
35 AC Frequency L3 Frequency too low L3 yes yes
63 Fuel level Fuel level to low yes no
65 AC Voltage Voltage too high yes yes
66 AC Frequency Frequency to high yes yes
67 AC Current Current too high yes n.a.
68 AC Power Load too high yes n.a.
70 Servo Power Power too high Mechanically blocked. Power
consumption too high, short
circuit
yes yes
72 Temperature Cylinder
head
Temp. value too high yes yes
73 Temperature Winding Temp. value too high yes yes
74 Temperature Exhaust Temp. value too high yes yes
75 Temperature
Electronics
Temp. value too high yes n.a.
77 Starter power Starter failure Short circuit starter defect yes n.a.
78 Glow circuit Glow circuit failure Short circuit defect yes n.a.
80 Fuel supply Failure fuel supply Short circuit defect yes n.a.
81 Stop solenoid - Hold Failure stop solenoid hold coil Short circuit yes n.a.
QR Code
Error type
Error number
Error symbol/
Error text
(Warning/Error shutdown)
