18

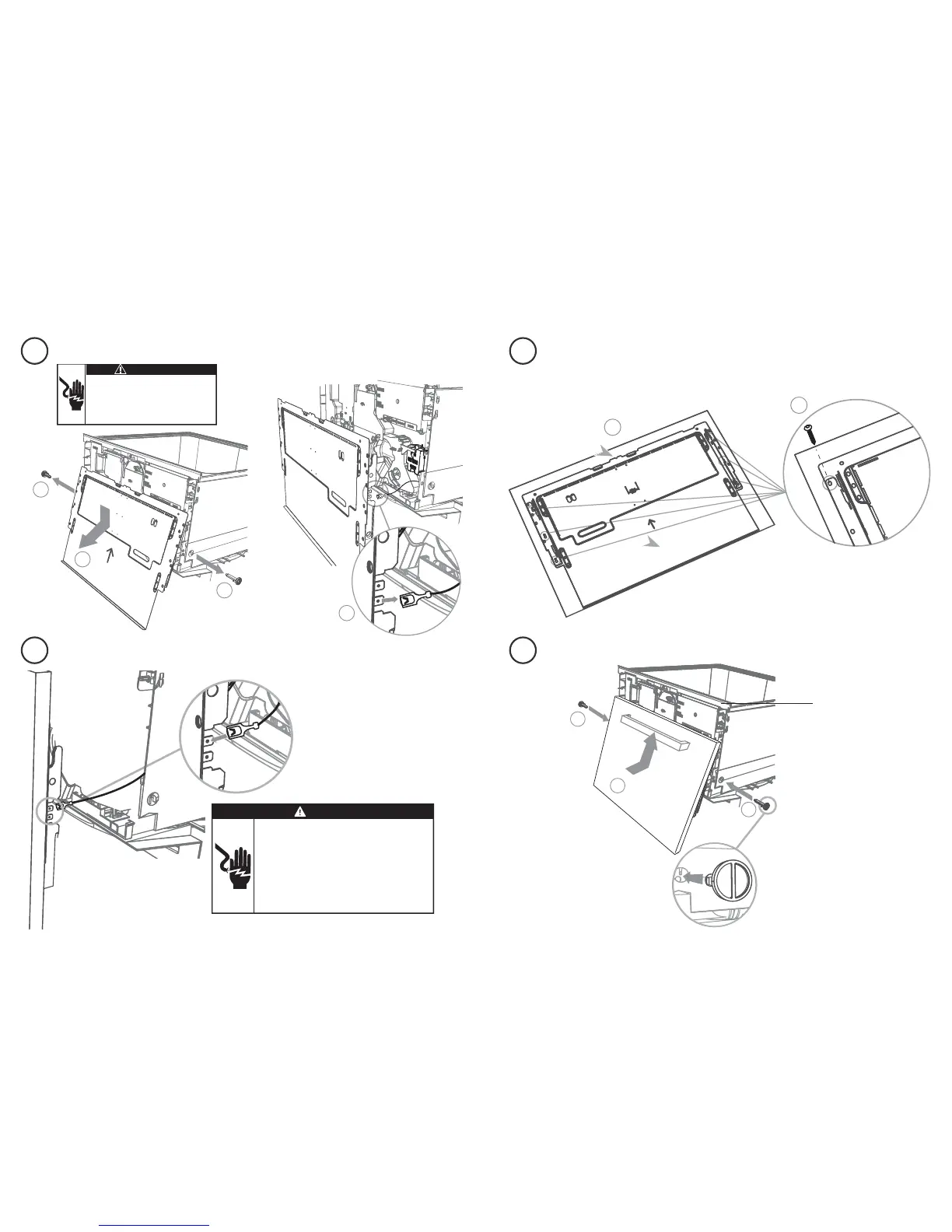

INTEGRATED MODELS ONLY - INSTALLING THE FRONT PANEL
1
2
16 mm x6
2
2
1
Important!
Ensure the rubber seal
between the drawer
and panel is kept in
place.
REMOVE BRACKET FROM PRODUCT
ATTACH PANEL TO PRODUCTGROUND THE PANEL
ATTACH PANEL TO PANEL BRACKET
There must be at least
3 screws used each side
When refitting the
door pins,
ensure they are
orientated as shown.
Align bottom of panel
with bottom of bracket
18
20
19
21
⁄” (16mm) x6
3
1
1
2
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or re.
WARNING!
WARNING!
To ground (earth) the panel bracket, connect
the ground (earth) wire from the product to
one of the tabs. Any custom metal component
(e.g. handle) that extends past the rubber seal
must be grounded (earthed) too.
Failure to follow these warnings may result in
electrical shock, injury or re.
Electrical Shock Hazard
