7 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting brackets
Initially level the product
A
A
A
B
B
Clip all four side mounting brackets
into their slots using a flat-bladed
screwdriver. Ensure they’re securely
fitted before sliding product into cavity.
The mounting slots are in pairs, one on
each side diagonally across the product.
A bracket must match A slot and B
bracket must match B slot.
When fitting brackets, ensure
the ends are not pushed
down into the chassis.
When fitting brackets, ensure the ends
are not pushed down into the chassis.
B
AB
You can raise or lower the
product by twisting the feet.
Then take care when pushing
the product into the cavity
that you do not bend the feet.

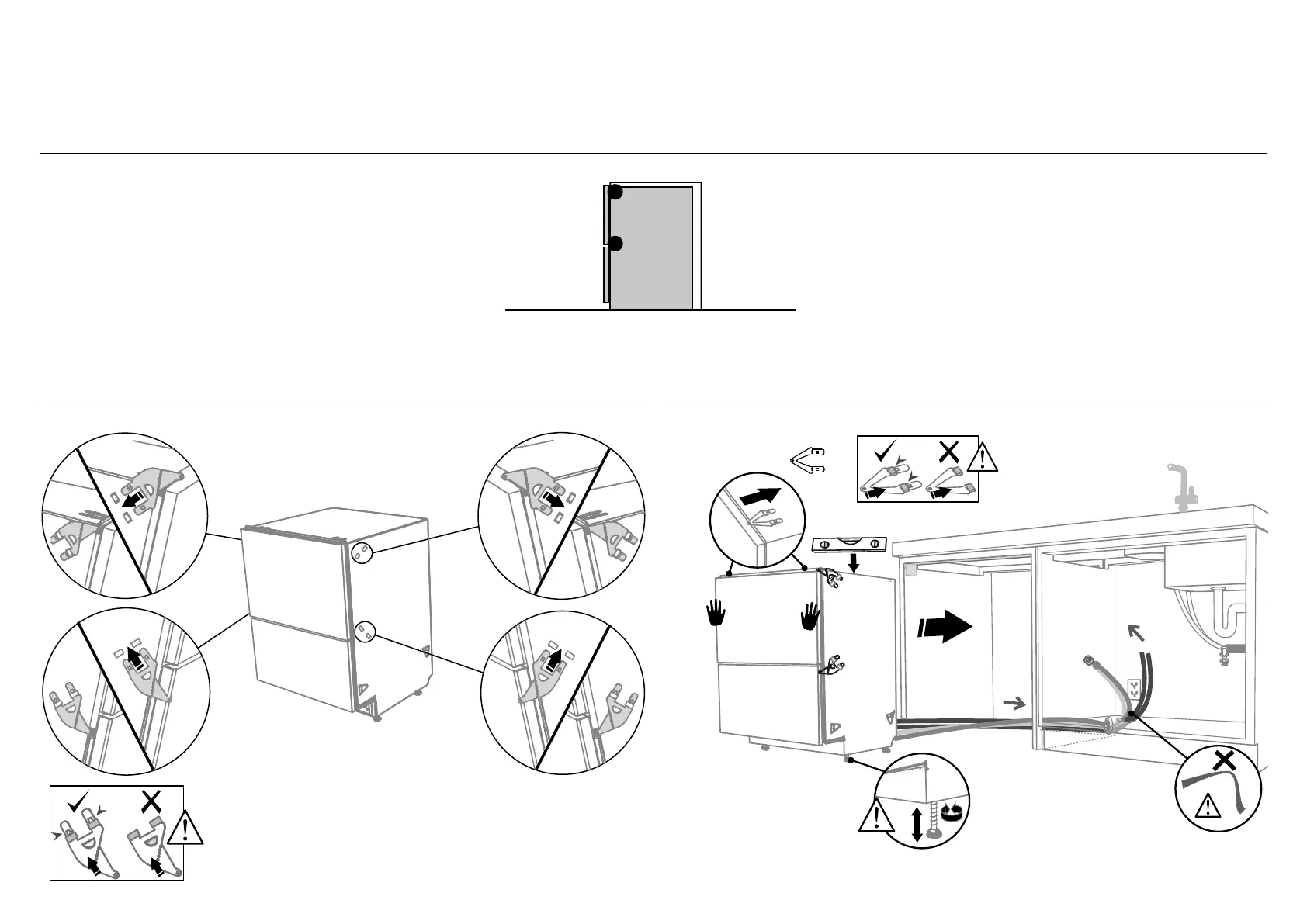

8-A ATTACH SIDE MOUNTING BRACKETS 9-A PULL THROUGH HOSES & PUSH INTO THE CAVITY
